- 67 -
After activation of the function select printout number (1-4) and beginning of writting the
texts in (range from text 1 to text 80). Then select the option Edition to edite (create)
printout or cancell all (remove all printouts).

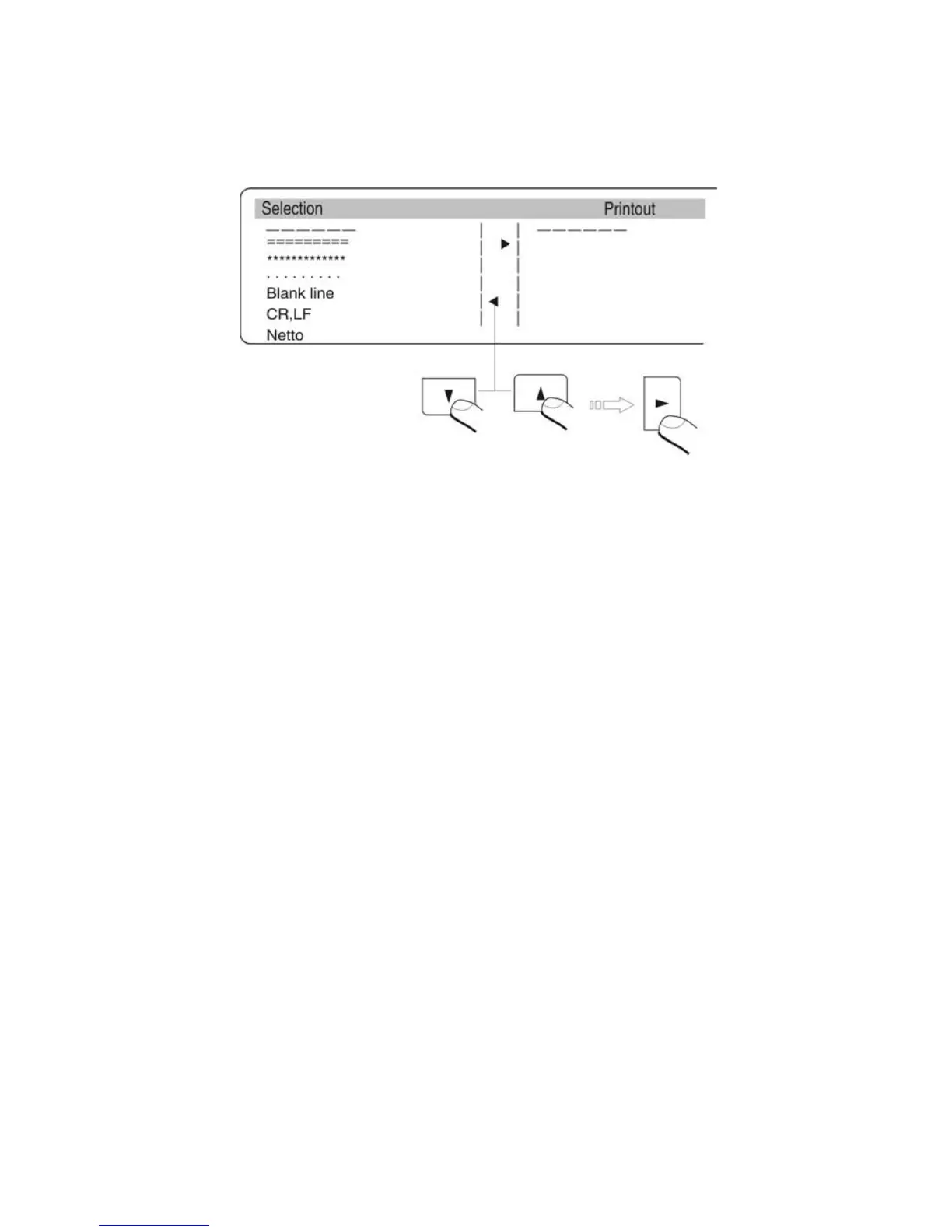

Draw. 63. Edition of printouts – selection the elements
To select following fields use keys ARROWS TOP/UP. To print field press the RIGHT
ARROW key. After the edition press ENTER/PRINT. Display shows question if printout
should be done – press ENTER/PRINT again.
18.2.3. Select non-standard printouts
if ST
ANDARD printout is selected – there will be only result and variables declared in the
GLP (see p. 17.1 Standard printout - drawing 60. Declaration of the variables to printout –
submenu GLP).
If non-standard printout is printed select kind of the printout (1-4) and give the beginning
and end of the printout.
19. COOPERATION WITH PRINTER OR COMPUTER
T
o send the information on the display with the unit of measure to the computer or printer,
press the < PRINT > key. 9600 bit/s is the default setting for the speed of transmission. If
the peripheral unit has a different speed of transmission, you may change the speed of
transmission in the balance menu.
