- 6 -
scale and rest of elements on. The balance is supplied with 230 V AC / 11V AC
supplier.

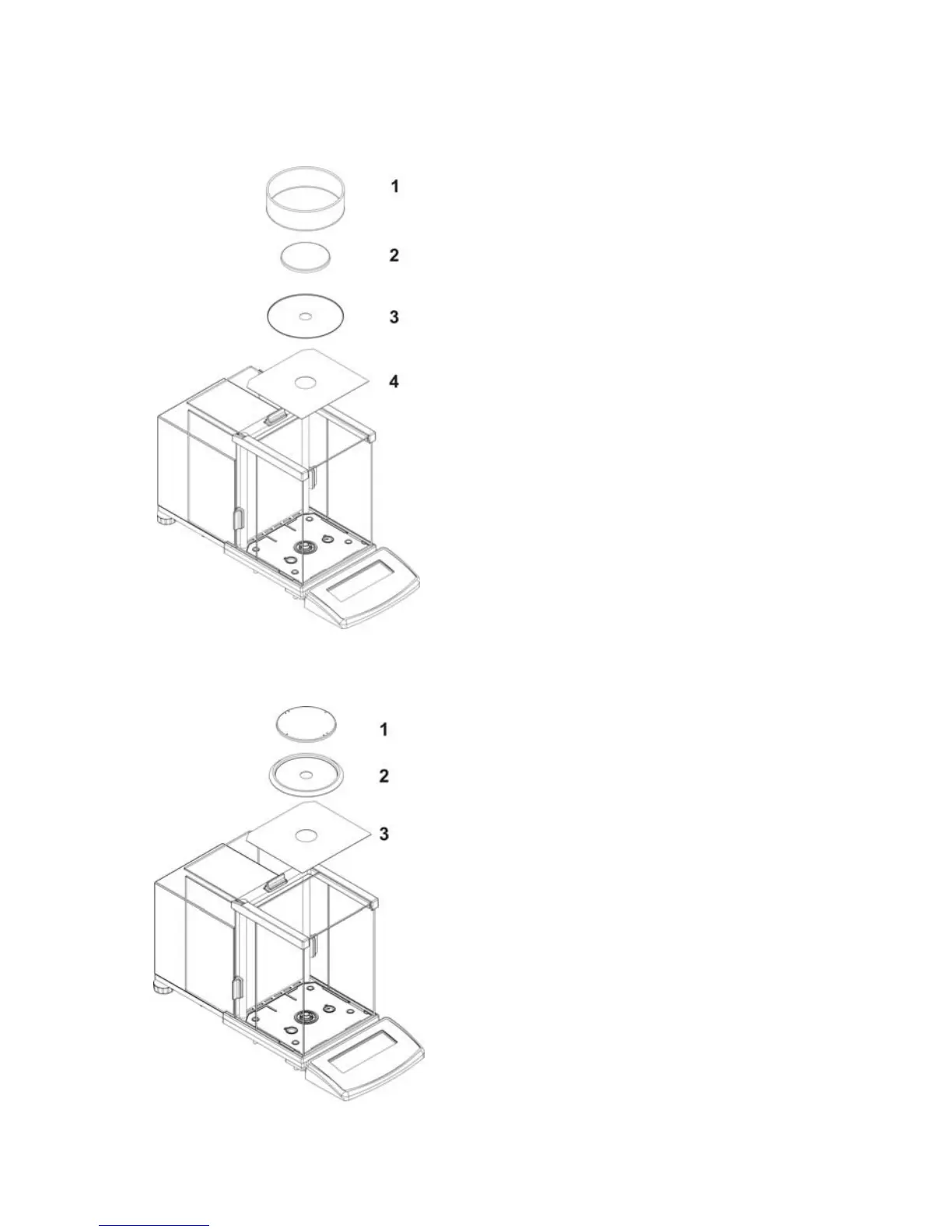

The balance with Φ 85 mm pan:
- open side doors of weighing chamber,
- inside the chamber place lower shield of
weighing chamber(4),
- put centering ring on the shield (3),
- put the balance pan inside the ring (2),
- put the anti-breeze shield on the
centering ring (1),
− close side doors of weighing
chamber,
− turn on balance supply,
− pin of power adaptor should be
connected to socket in the back
of balance casing.
The balance with Φ 100 mm pan:
- open side doors of weighing chamber,
- inside the chamber place lower shield of
weighing chamber (3),
- inside the chamber place anti-breeze
shield (2),
- put the balance pan inside the ring (1),
− close side doors of weighing
chamber,
− turn on balance supply,
− pin of power adaptor should be
connected to socket in the back
of balance casing.
