6- 18
6-2-1-1 Sample Hold Settings
Parameter name Setting value Remarks
Measurement mode (MEAS)
Selects a hold mode.
S-H (Sample hold)
P-H / B-H / P-P / P-P/2
NG-H
SLF.S-H / SLF.P-H / SLF.B-H [Default: S-H]
Trigger mode (TRG)
Selects the external trigger input behavior.
HOLD (Hold) / 1SHOT(One shot) [Default: HOLD]
An external trigger input holds a normal measurement value as the judgment value.
The hold behavior can be set using the trigger mode.

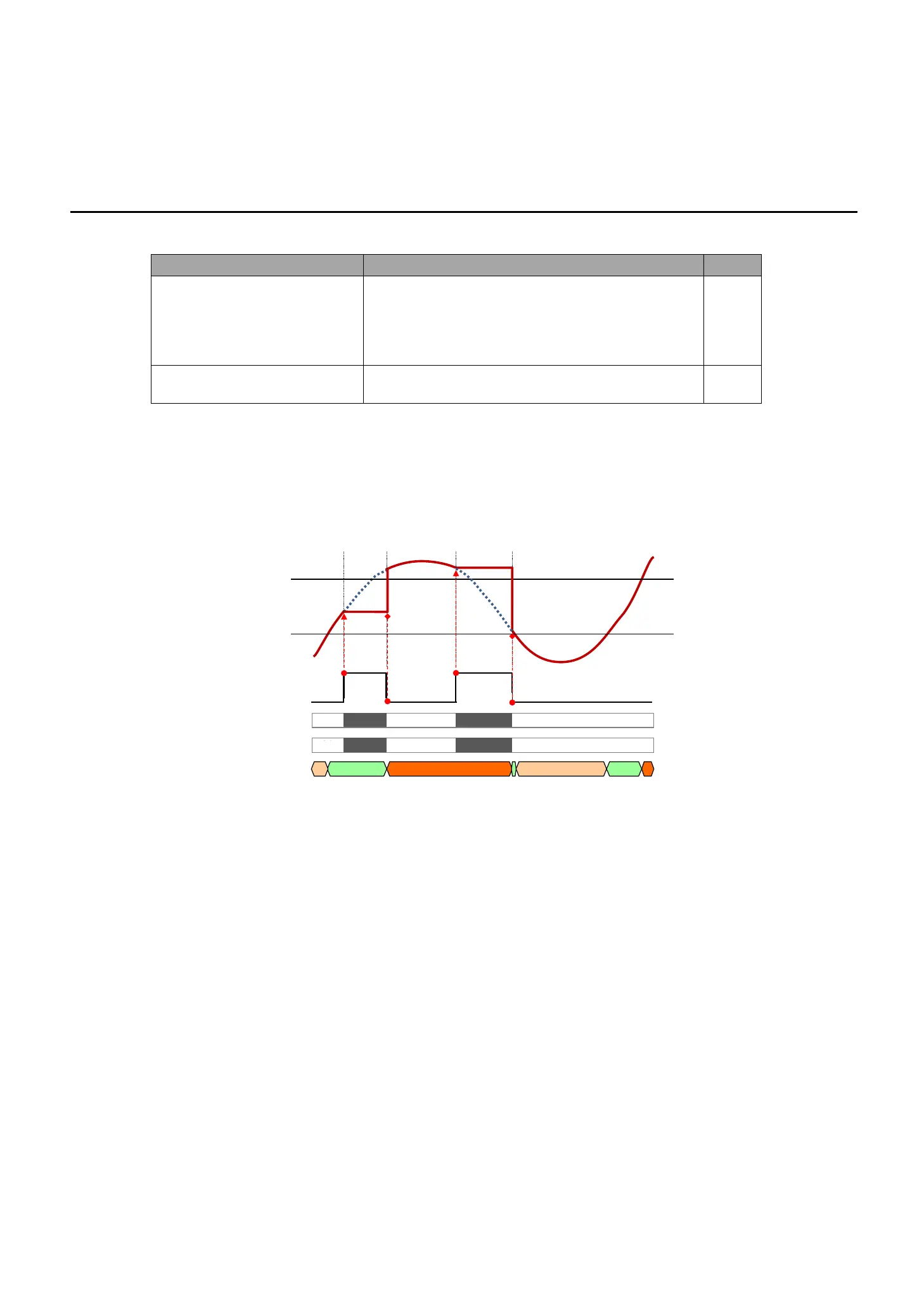

Sample hold (Trigger mode: Hold)
While the external trigger input is ON, the sample i
s held; while it is OFF, the sample hold is released.
Note
When the reset input is turned ON with the external trigger input ON, an indefinite state will be
held.
In this type of sample hold, the judgment output is the same as the judgment value.
(However, please note that there are some measurement modes for which this is not the case.)
Related information
For details of trigger input as external input, refer to "6-2-3 External Input."
（消灯）
（消灯）
HOLD HOLD
TRIG TRIG
LoGo HiLo Go
HIGH setting value
LOW setting value
TRIG
TRIG display
HOLD display
Judgment output
(Light OFF)
(Light OFF)
