6- 19

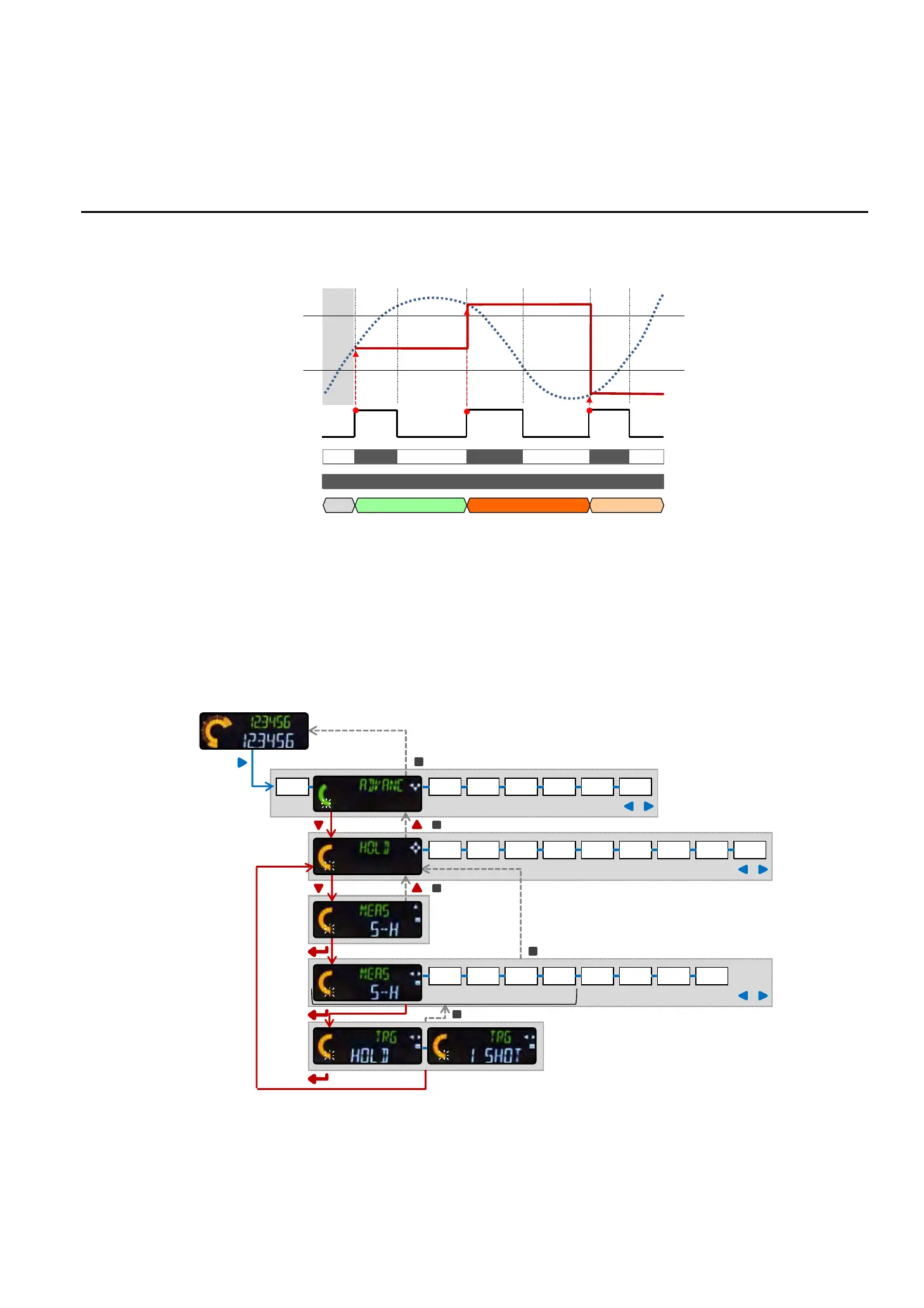

Sample hold (Trigger mode: One shot)

The held data is updated when the external trigger input is turned ON (at a rising edge).

Note



An indefinite state is held during the following intervals:

 From the time immediately after the power is turned ON until the external trigger is turned ON.

 From the time the reset input is turned ON until the external trigger is turned ON.

 In this type of sample hold, the judgment output is the same as the judgment value.

(However, please note that there are some measurement modes for which this is not the case.)

Operation procedure

■

（消灯）

HOLD

TRIG TRIG TRIG

（消灯）

LoGo Hi

不定

HIGH setting value

LOW setting value

TRIG

TRIG display

HOLD display

Judgment output

(Light OFF)

Indeterminate

2秒長押し

選択キャンセル

確定

BASIC CALC COPY BANK CALIB RESET

SLF.P-H SLF.B-HP-H B-H P-P P-P/2 NG-H SLF.S-H

ANALOG ANA.HI ANA.LO ECO ALARMALL.IN EXT.IN EXT.OUT DIGIT

MAINTE

Long press

for 2 s

Select

Cancel

Select

Commit

Cancel
