Clarke CA60 20D User Manual

Service Manual-CA60 03 General Information 9
24
23
22
21
20

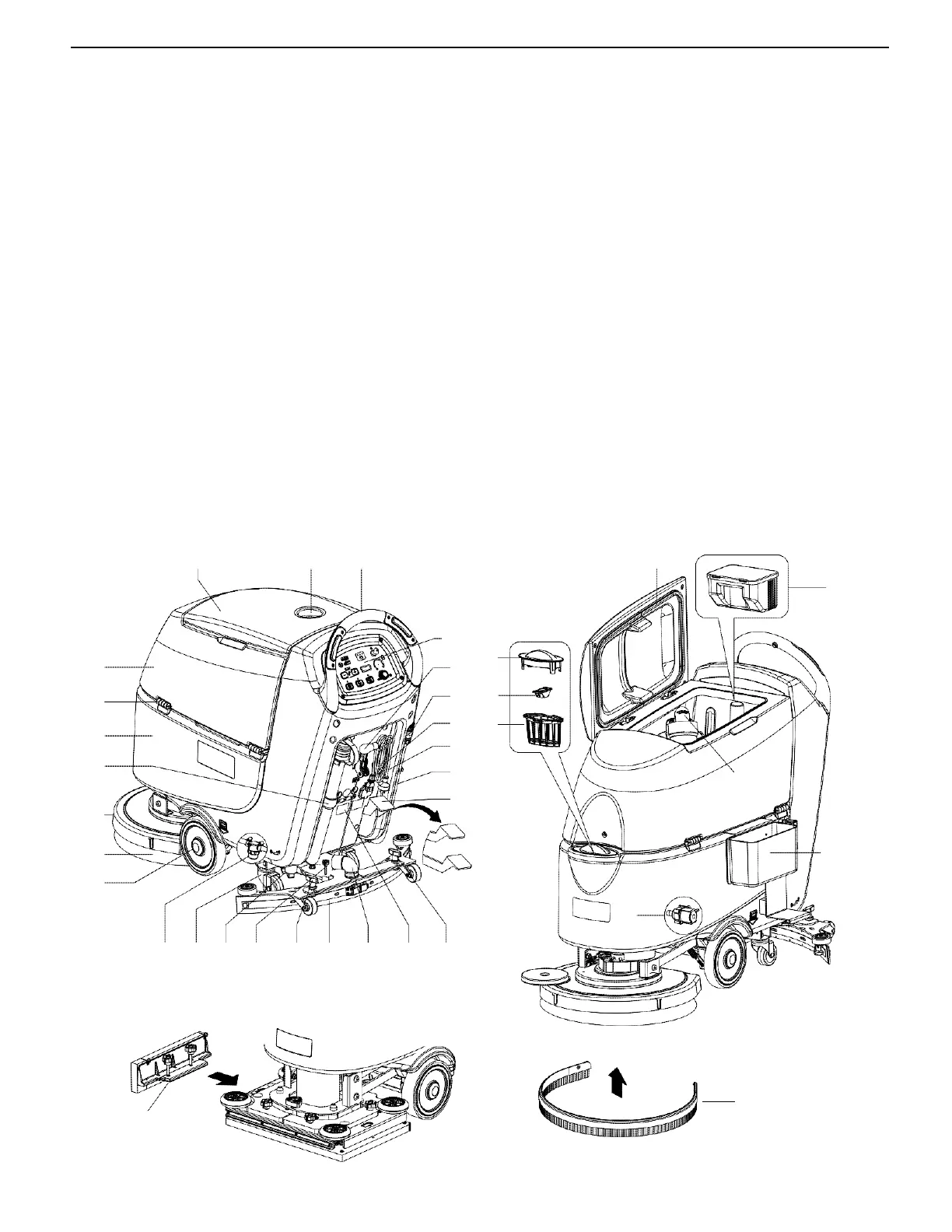

Machine Nomenclature (machine structure)
1.
Recovery tank lid
20. Brush/pad-holder
2.
Can holder
21. Brush/pad-holder deck
3.
Handlebar
22. Recovery water drain hose
4.
Control panel
23. Solution tank
5.
Squeegee lifting/lowering lever
24. Hinge
6.
Garden coupling
25. Recovery tank
7.
Power supply cable holder
26. Filter support
8.
Power cable
27. Filler hose holder
9.
Solution drain and level check hose
28. Filter cover
10.
Deck lifting/lowering pedal(only for disc machine)
29. Baseboard cleaner(*)
a) Pedal position when deck is lifted
30. Tank cover gasket
b) Pedal position when deck is lowered
31. Debris collection box
11.
Squeegee knobs
32. Splash guard 510mm
12.
Serial number plate/technical data
33. Float ball filter
13.
Squeegee vacuum hose
34. Mop and trash kit (*)
14.
Squeegee
35. Solenoid valve
15.
Squeegee balance adjusting knob
16.
Solution/clean water tap
(*): Optional
17.
Rear steering wheels
(A): Only for disc machine without traction
18.
Solution filter
(B): Only for disc machine with traction
19.
Front wheels on fixed axle (A).
Driving wheels (B)
1 2 3
30
31
28
25 5
6
27
7
26
8
9
33
10
10b
34
10a
19
35
18 17 16 15 11 14 13
12 11
29
32
Figure 2
4

Clarke CA60 20D Specifications

General

Brand	Clarke
Model	CA60 20D
Category	Scrubber
Language	English
