Service Manual-CA60 30 Solution System 46
Maintenance and Adjustment
Solution filter cleaning
1. Drive the machine on a level floor.
2. Ensure that the machine is off and the ignition key has
been removed.

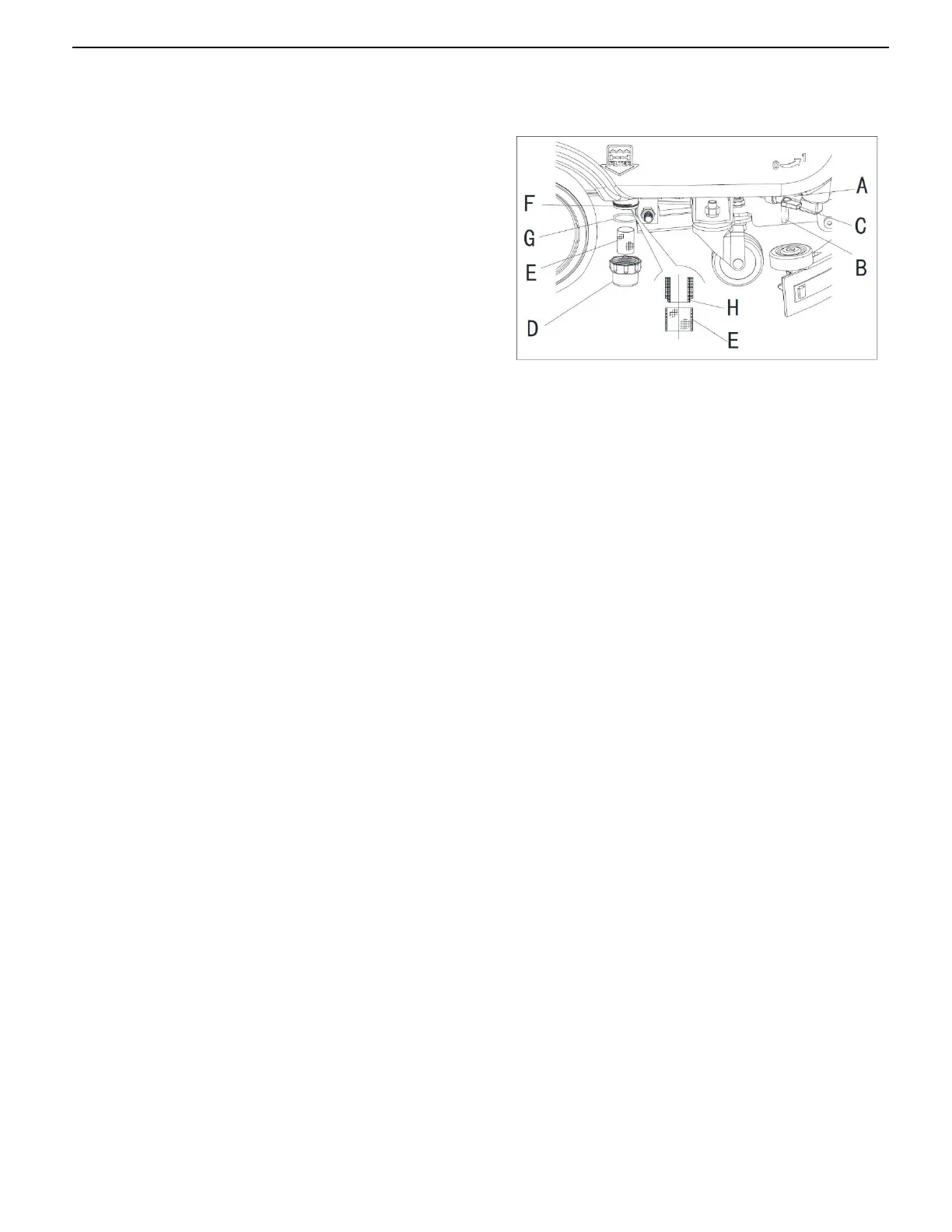

3. Close the solution tap (A, Figure. 5) under the machine,
behind the right rear wheel. The tap (A) is closed when it is
on the position (B) and it is open when it is on the position
(C).
4. Remove the transparent cover (D), then remove the filter
strainer (E). Clean and install them on the support (F).
NOTE
The filter strainer (E) must be correctly
positioned on the housing (H) of the support
(F).
5. Open the tap (A).
