Clarke CA60 20D - Removal and Installation

Service Manual-CA60 24-Electrical System 39
Removal and Installation
Rear panel disassembly/assembly
Disassembly
1. Drain the recovery tank.
2. Turn the ignition key to “0” and remove it.
3. Make sure that the machine cannot move independently.
4. Turn the recovery tank sideways, then disconnect the battery connector.
5. Lower the squeegee (A) with the lever (B).
6. Disconnect and lower the recovery water drain hose (C).
7. Unscrew and remove the caps (D) of the thermal fuses.
8. Lift the cover (E) and unscrew the electrical connection fastening screws (F).
9. Unscrew the screws (G), then move the rear panel (H).
10. Disconnect the electrical connection (I) from the rear panel (H), after rotating it 90°.
11. Remove the rear panel (H).
Assembly
12. Assemble the components in the reverse order of disassembly.
G
H
G
G
D
E
B
I
G
G
F
A
C

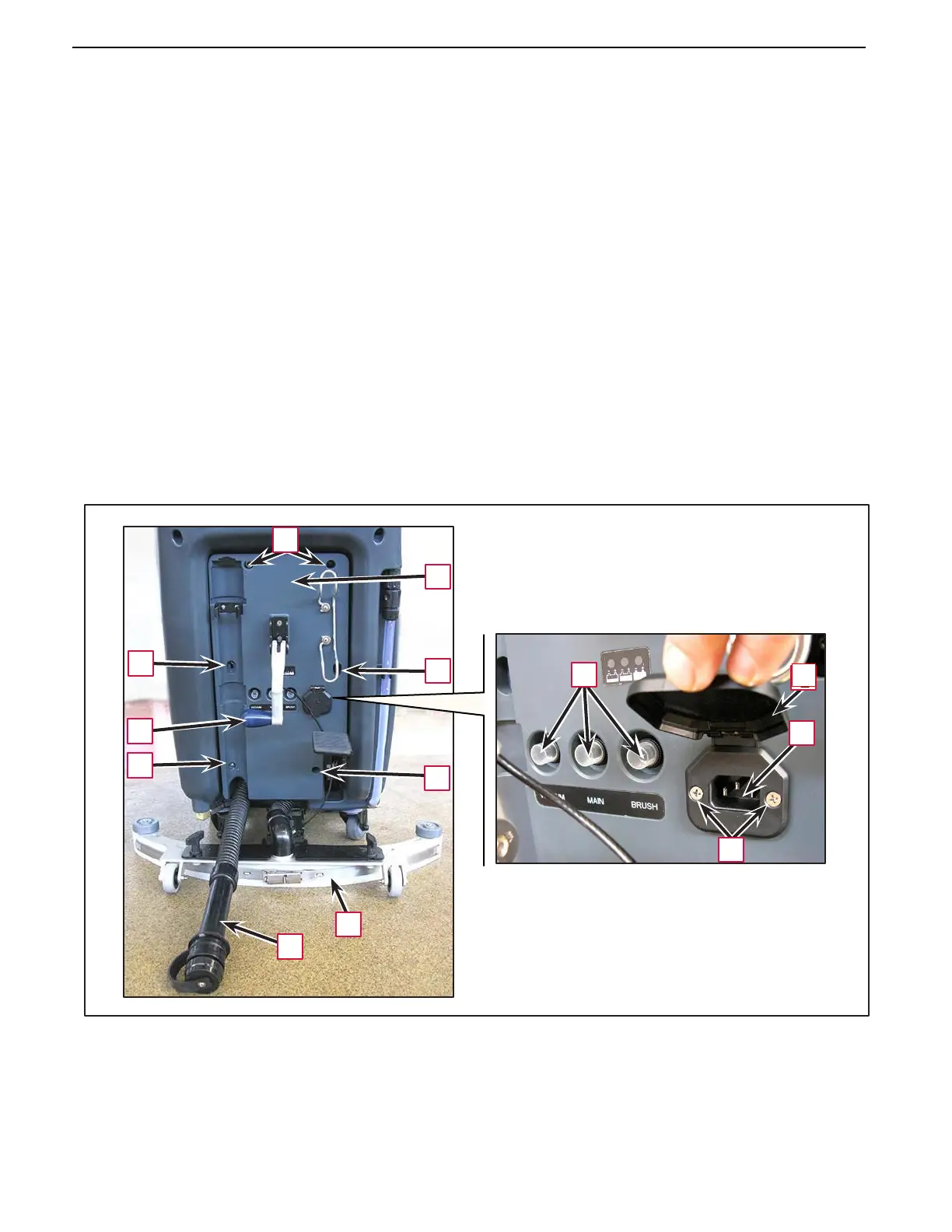

Figure 8
E
