Orbital deck Disassembly/Assembly
Disassembly

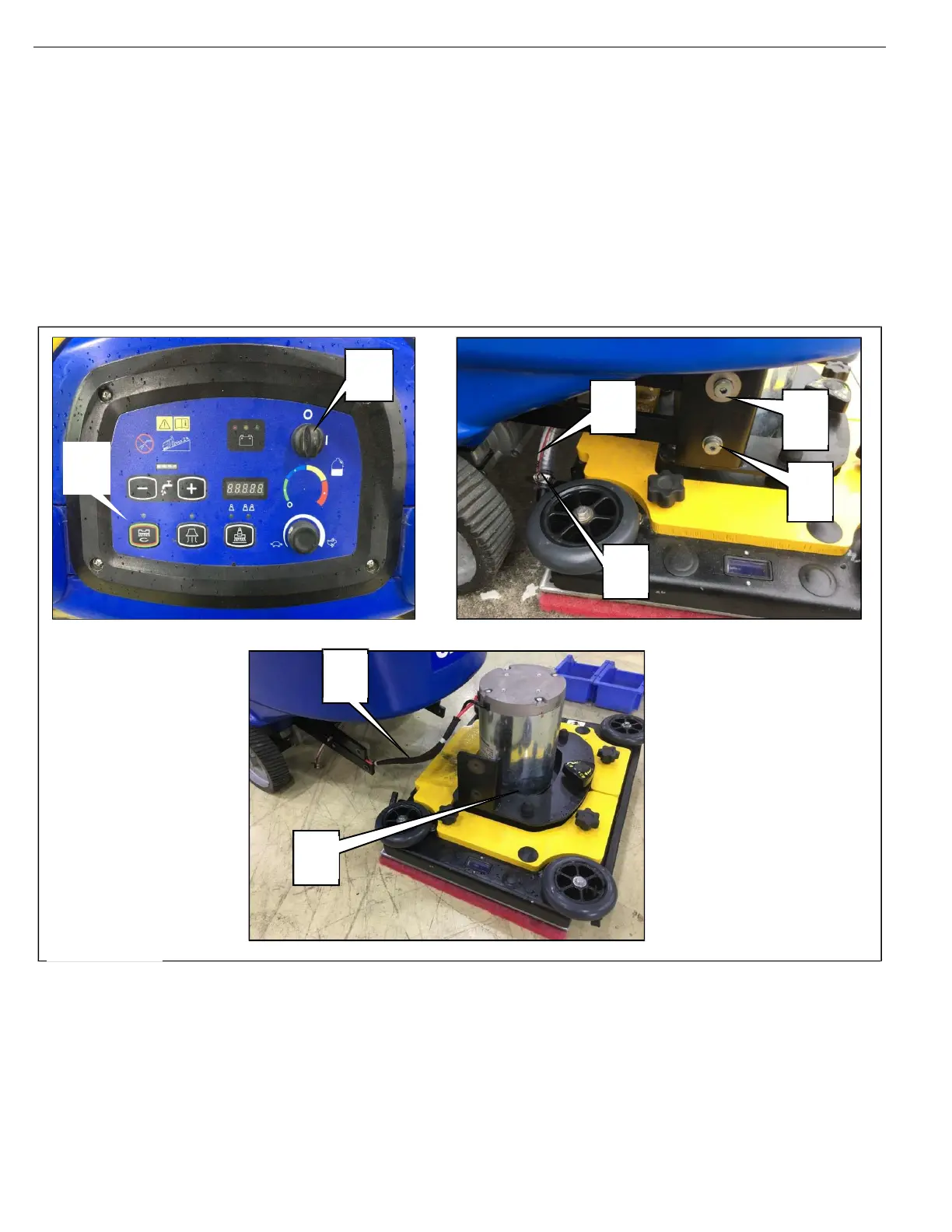

1. Turn the ignition key (A) to “I” and press the button (B). Lowering the orbital head. remove the ignition key
(A).
2. Unscrew the screws (E).
3. Loosen the clamp (D) and disconnect the water hose (C) from the deck.
4. Disconnect the brush motor electrical connection. (G) .
5. Move the orbital deck(F) from its seat.
A
C
E
B
E
D
G
F
Figure 6
