Clarke CA60 20D - Removal and Installation

Service Manual-CA60 30 Solution System 48
Removal and Installation
Solenoid Valve Disassembly/Assembly (M4)
Disassembly
1. Remove the wheels assembly with drive system motor (see the procedure in the relevant paragraph).
2. Loosen the clamps (A) and disconnect the hoses (B) from the solenoid valve (C).
3. Unscrew the screws (D) and move the solenoid valve (C).
4. Cut the wiring retaining clamp (E).
5. Cut the heat-shrink tubing (F) then disconnect the electrical connections (G) on the solenoid valve (C).
6. Remove the solenoid valve (C).
Assembly
7. Assemble the components in the reverse order of disassembly.
D
B
C
C
A
A
D
B
E
F
G

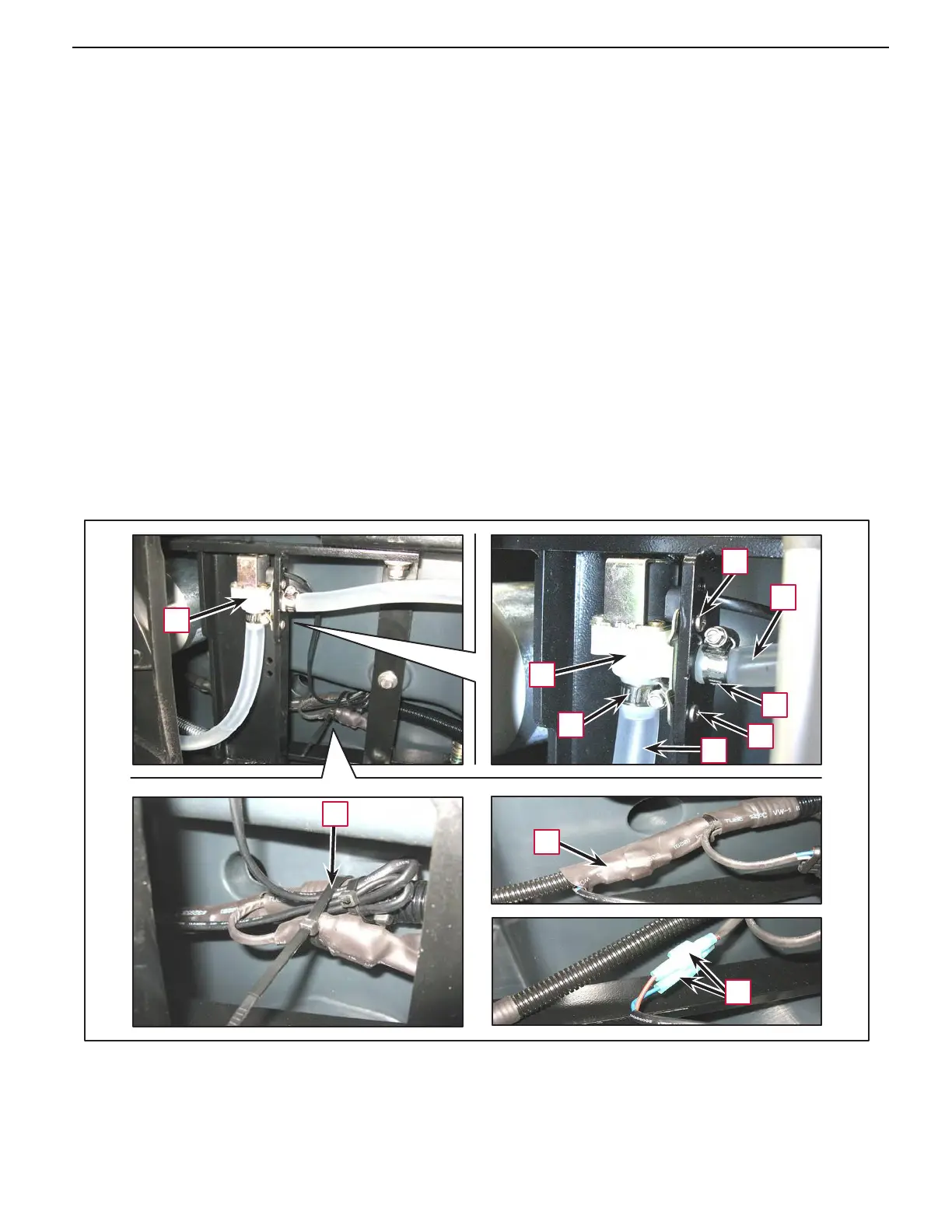

Figure 6
