Clarke CA60 20D - Actuator Disassembly;Assembly

Service Manual-CA60 34 Scrub System REV (CA60 20B/24B) 65
Actuator Disassembly/Assembly
Disassembly
1. Turn the ignition key (A) to “I” and press the button (B). Lowering the orbital head. remove the ignition key
(A).
2. Unscrew the screws (C).
3. Remove the key (D) and pin(E).
4. Disconnect the actuator electrical connection.
5. Remove the actuator system(F).
Assembly
6. Assemble the components in the reverse order of disassembly.
F
A
C
E
D
B

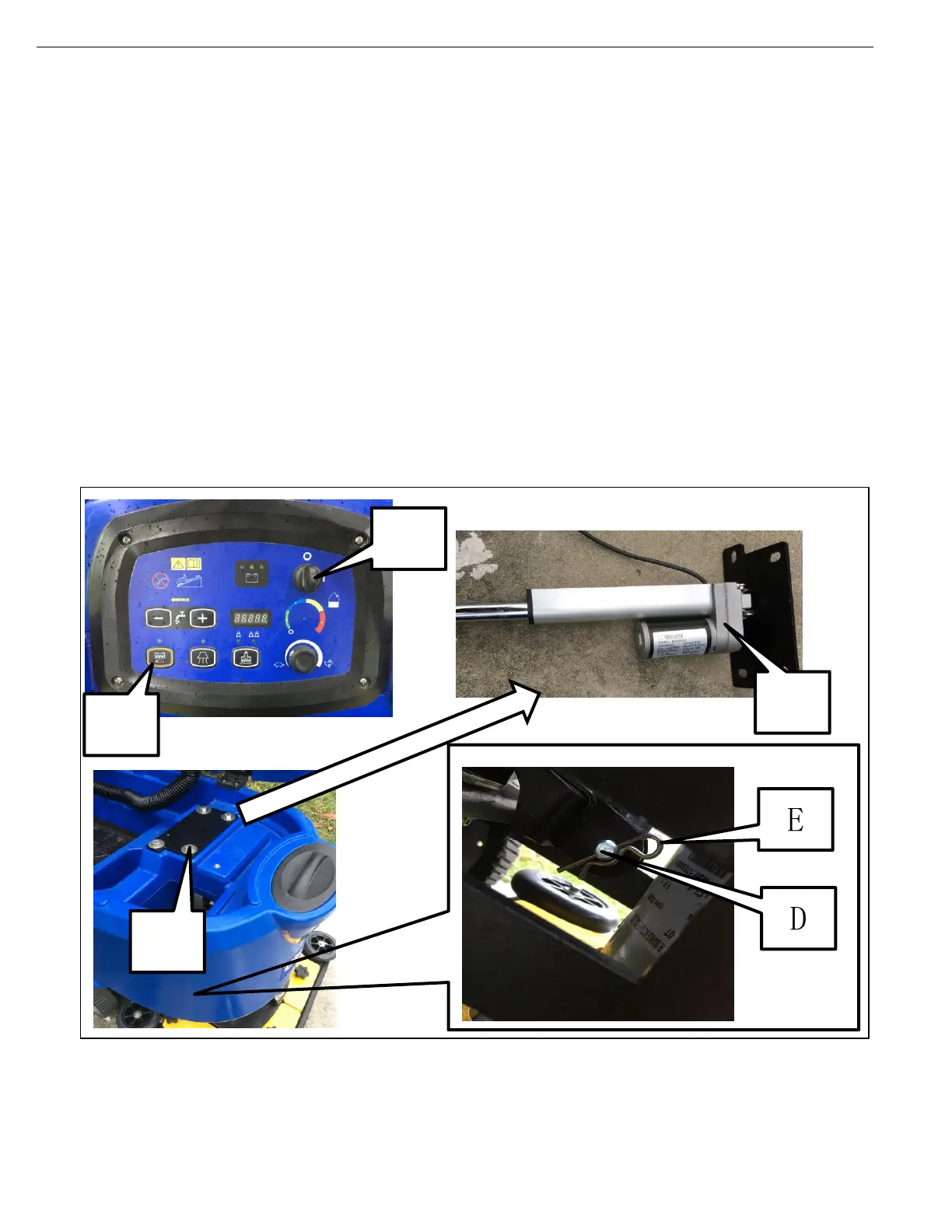

Figure 4
