Service Manual-CA60 34 Scrub System DISC(CA60 20D/20TD) 58
Brush Motor Disassembly/Assembly (M1)
Disassembly
1.
Remove the brush deck (see procedure in the relevant paragraph).
2.
Unscrew the screw (A) and remove the brush hub (B), along with the flange.
3.
Remove the brush motor (D) fastening screws (C).
4.
Remove the brush motor (D) from the brush deck (E).
Assembly
5.
Assemble the components in the reverse order of disassembly, and note the following.
•

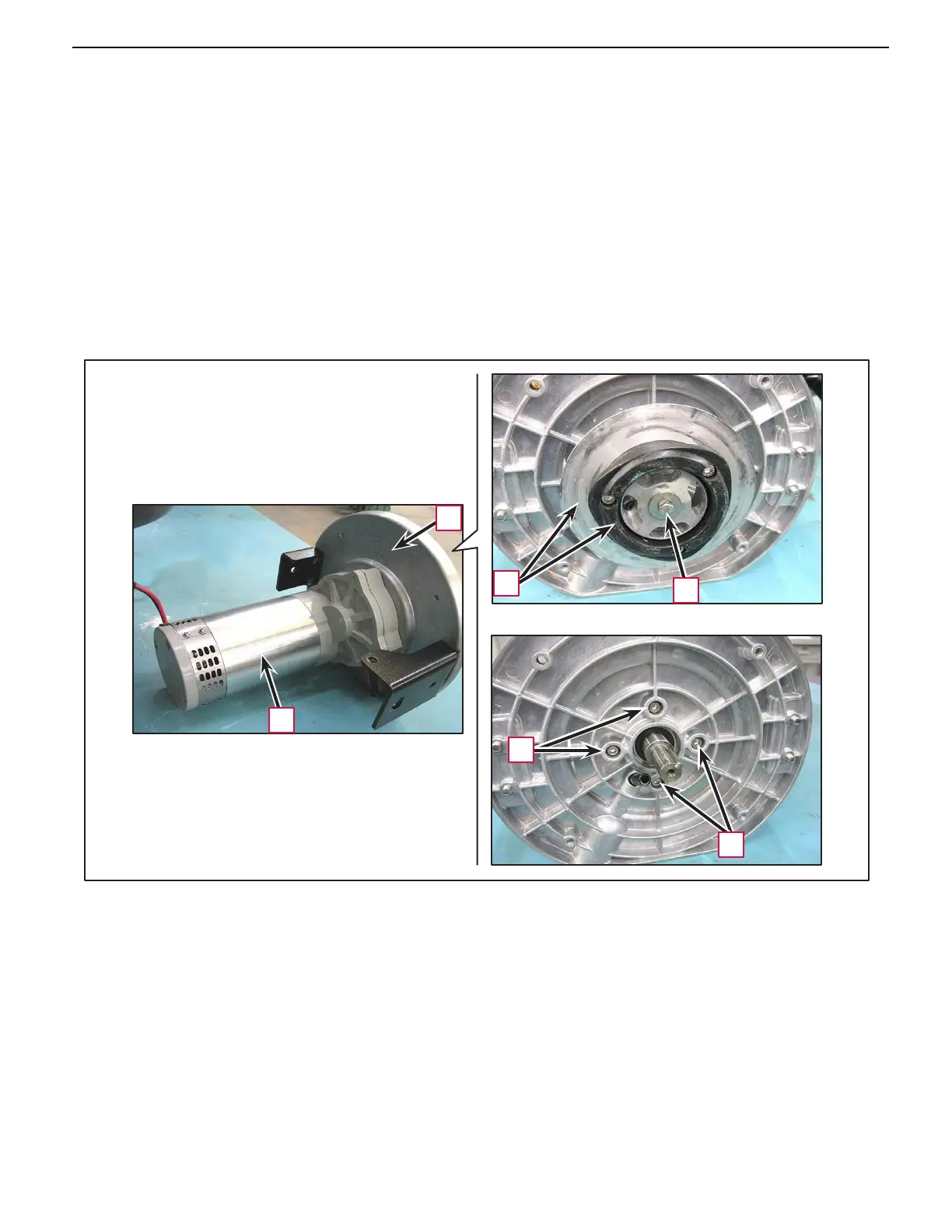

Position the brush motor (D) in the position shown in the figure with respect to the brush deck (E).
E
B
A
D
C
C
