Service Manual-CA60 40 Recovery System 87
Vacuum System Motor disassembly/assembly (M2)
Disassembly
1. Drain the recovery tank.
2. Turn the ignition key to “0” and remove it.
3. Make sure that the machine cannot move independently.
4. Turn the recovery tank sideways, then disconnect the battery connector.
5. Working from the bottom of the recovery tank, unscrew the screws (A) and remove the vacuum motor
retention plate (B).
6. Remove the vacuum motor (C) with the shock absorbing ring (D) and shock absorber casings (E) and (F).
7. Disconnect the vacuum motor electrical connection (G).
8. Extract the vacuum motor (C), and if necessary separate it from parts (D), (E) and (F).
Assembly
9. Assemble the components in the reverse order of disassembly.
A
E
D
B
F
A
C
F E
G
D
C

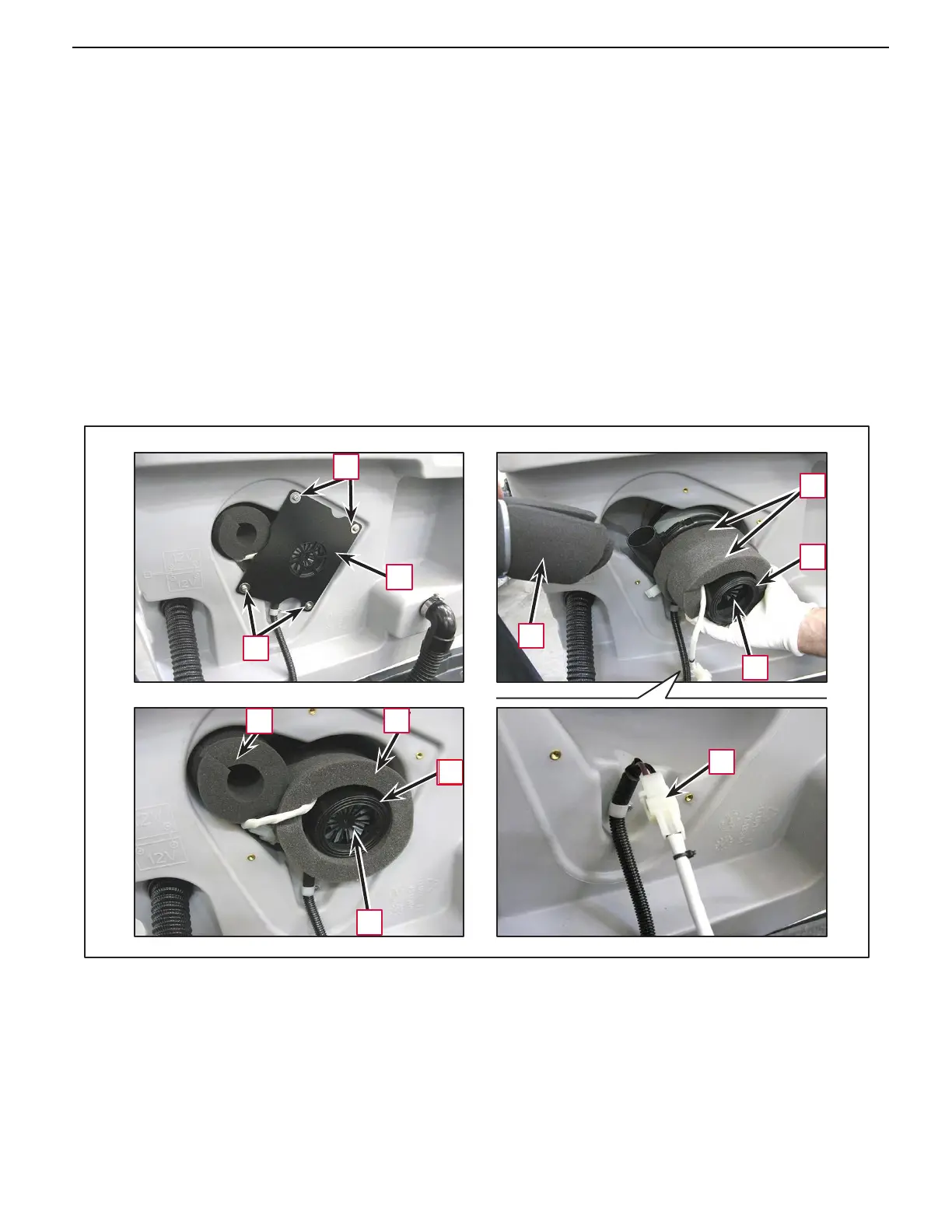

Figure 6
D
