6.2.6 Activate Pattern Function

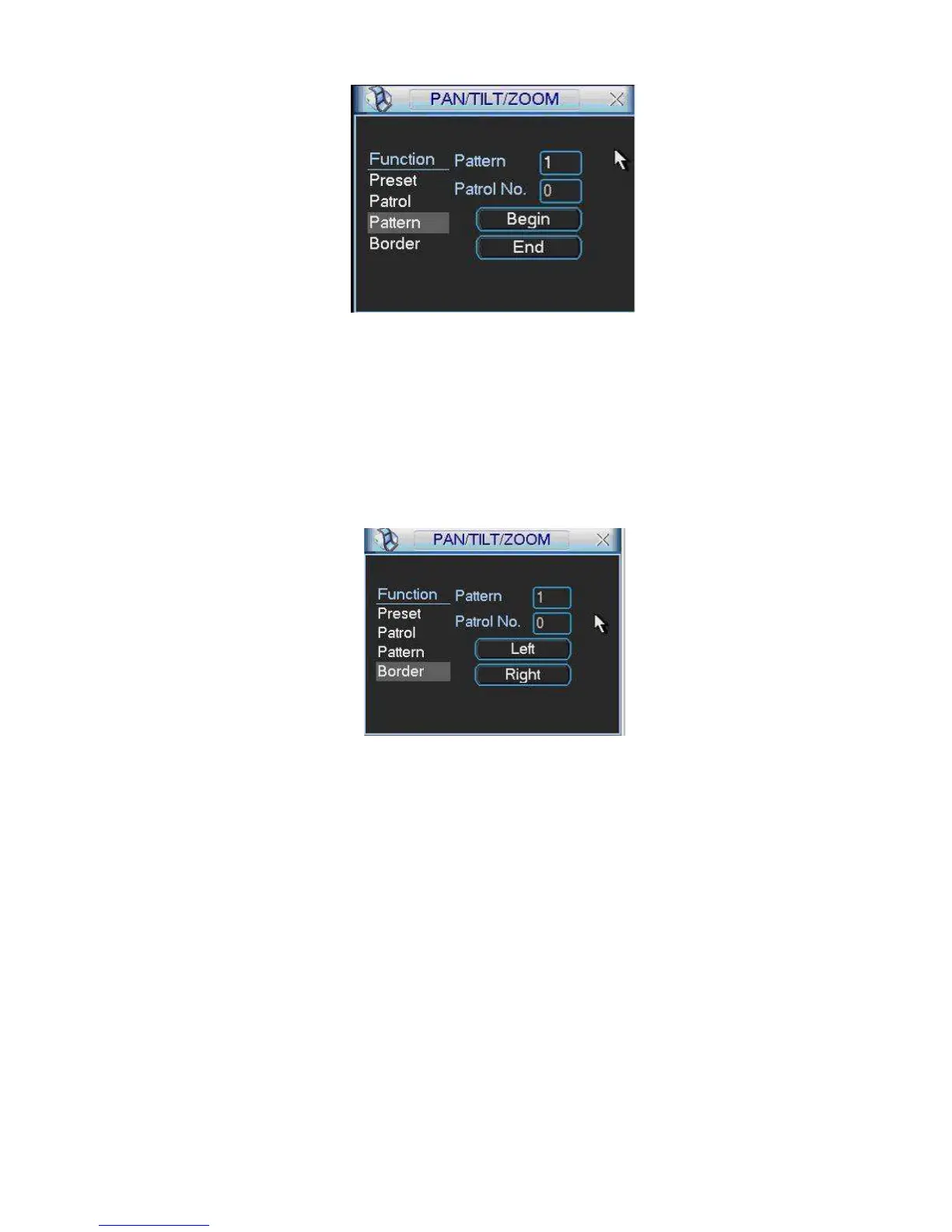

Figure 6-9
In X419H419H 419HFigure 6-6X input mode value in the No. blank, and click pattern button.
6.2.7 Border Setup
In X420H420H 420HFigure 6-5X, click border button. The interface is shown as in X421H421H421HFigure 6-10X.
Please go to
X422H422H422 HFigure 6-2X, use direction arrows to select camera left limit, and then please go to
X423H423 H42 3HFigure 6-10X and click left limit button
Repeat the above procedures to set right limit.
6.2.8 Activate Border Function
Figure 6-10
In X424H424H 424HFigure 6-6X, click auto scan button, the system begins auto scan. Correspondingly, the auto
scan button changes to stop button.
Click stop button to terminate scan operation.
6.2.9 Flip
In X425H425H 425HFigure 6-6X, click page switch button, you can see an interface is shown as below. See
X426H426 H42 6HFigure 6-11X. Here you can set auxiliary function.
Click page switch button again, system goes back to
X427H427H 427HFigure 6-2X.
