ClimateMaster TCH072 - Page 19

THE SMART SOLUTION FOR ENERGY EFFICIENCY
Tranquility
®
Compact Belt Drive (TCH/V) Series
Rev.: July 25, 2017
19
climatemaster.com
Remove (3x) per slide
1/4-20 UNC bolts
Step 5
Step 6
Rotate entire blower housing assembly to rest at back end of the
unit. Locate housing holes and bolt down using previous 1/4-20
UNC bolts (3x) ea. side.
Motor motor, motor sheave,
blower sheave and belt
Step 7
Step 8
Put blower panel
and access panel back on
Return air
Front
Return air

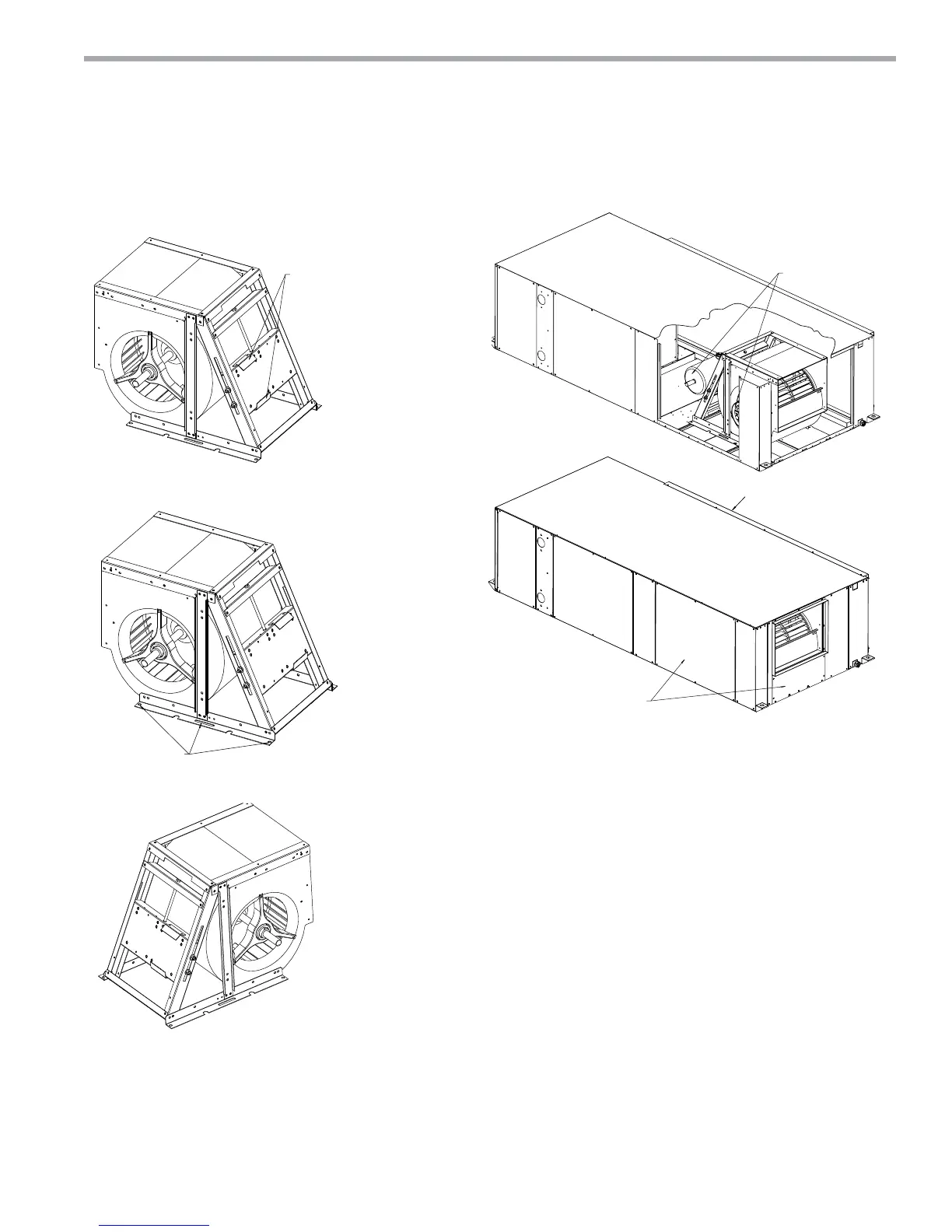

Figure 4 Continued: Left Return Side Discharge to Back
Step 4
Move motor clips to
other side on bracket
