CM Lodestar A - Contactor Plate Assemblies for Models J-RRT (1-Speed 3-Phase)

85
00001996 (REV AC) 627NH October 2014

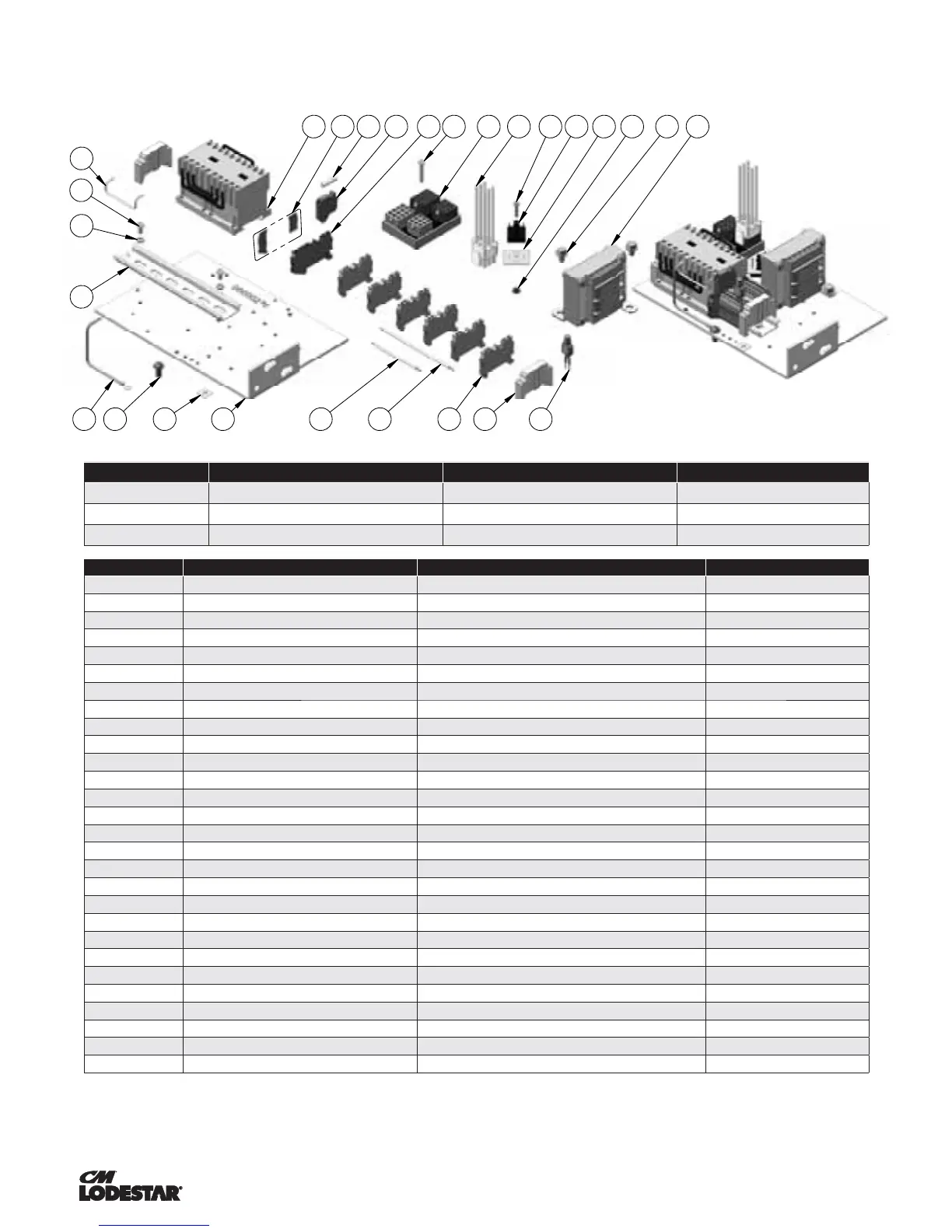

CONTACTOR PLATE ASSEMBLY FOR USE WITH DC BRAKE 1-SPEED, DUAL VOLTAGE
UNITS 220/230-380/415/460-3-50/60 MODELS J, JJ, L, LL, R, RR, RT & RRT
CONTACTOR BKT S/A TRANSFORMER REVERSING CONTACTOR SECONDARY VOLTAGE
00001701 00000594T 28860 24 V
00001702 00000595T 24797 48 V
00001703 00000596T 24799 110 V
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 SEE TABLE CONTACTOR BKT S/A BHSE 1
1.1 00000278 CONTACTOR BRACKET 1
1.2 SEE TABLE TRANSFORMER-V2-230/460 1
1.3 29010 DIN-RAIL 6.50" LONG 1
1.4 909J13 TERMINAL STRIP END CLAMP 2
1.5 29018 FUSIBLE TERMINAL STRIP 1
1.6 29014 TERMINAL STRIP 6
1.7 00000398 TERMINAL STRIP COVER SEGMENT 1
1.8 29019 FUSIBLE TERMINAL STRIP 1
1.9 SEE TABLE REVERSING CONTACTOR 1
1.10 27672 VOLTAGE CHANGE BOARD 1
1.12 987862 SCREW #8-32UNC-2A X 1" 1
1.13 20940 GROUND LABEL 1
1.14 987827 SCREW 1/4-20 UNC-2A X 1/2" 1
1.15 987873 LOCK WASHER #10 ASA MEDIUM 2
1.16 51847 JUMPER 1
1.17 00000393 FUSE-5MM X 20MM-500MA 1
1.18 982686 SCREW #10-32 UNF-2A X 3/8" SL 2
1.19 27189 JUMPER-G/Y-#16 AWG 1
1.20 25861 SCREW 1/4-20 UNC-2A X 3/8" HEX 2
1.21 00000535 SURGE SUPPRESSOR 1
1.22 70246 RECTIFIER 1
1.23 70274 RECTIFIER INSULATOR 1
1.24 957854 SCREW #6-32 NC-2 X 5/8" ROUND 1
1.25 982470 NUT #6-32 UNC-2A HEX MACHINE 1
1.26 00000537 B8 JUMPER 1
1.27 00000538 B9 JUMPER 1
1.28 00000204 HARNESS V2/CONTACTOR 1
1.4
1.7 1.17 1.101.12 1.221.24 1.23 1.2
1.21
1.25
1.61.26
1.5
1.3
1.15
1.141.19 1.1
1.16
1.271.13
1.81.9
1.18
1.28 1.20
