86
00001996 (REV AC) 627NH October 2014

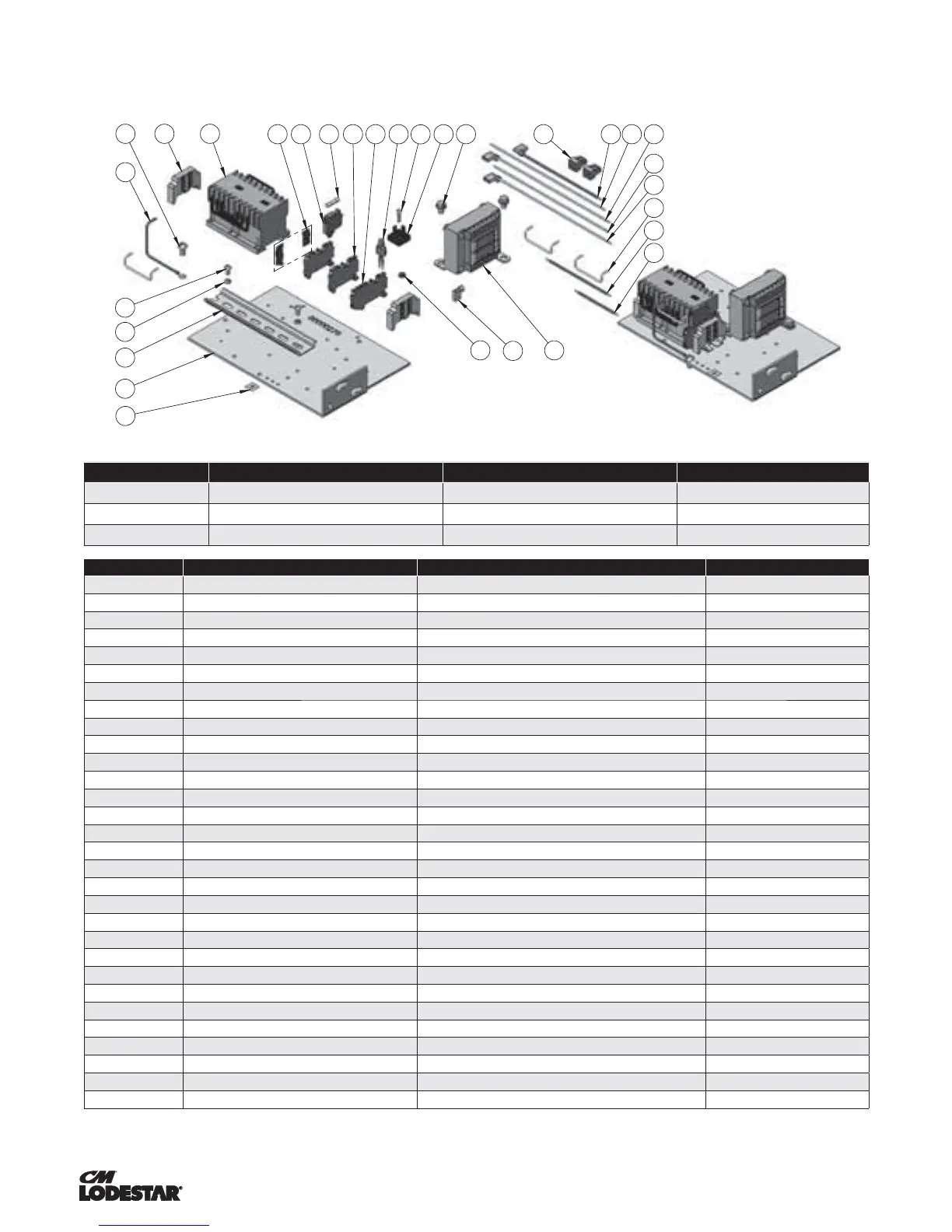

CONTACTOR PLATE ASSEMBLY FOR USE WITH DC BRAKE 550/575-3-50/60
MODELS J, JJ, L, LL, R, RR, RT & RRT
CONTACTOR BKT S/A TRANSFORMER REVERSING CONTACTOR SECONDARY VOLTAGE
00001710 00000597T 28860 24 V
00001711 00000598T 24797 48 V
00001712 00000599T 24799 110 V
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 SEE TABLE CONTACTOR BKT S/A BHSE 1
1.1 00000278 CONTACTOR BRACKET 1
1.2 29010 DIN-RAIL 6.50" LONG 1
1.3 987873 LOCK WASHER #10 ASA MEDIUM 2
1.4 982686 SCREW #10-32 UNF-2A X 3/8" SL 2
1.5 909J13 TERMINAL STRIP END CLAMP 2
1.6 SEE TABLE REVERSING CONTACTOR 1
1.7 00000398 TERMINAL STRIP COVER SEGMENT 1
1.8 29018 FUSIBLE TERMINAL STRIP 1
1.9 29019 TERMINAL STRIP CARTRIDGE 1
1.10 00000393 FUSE-5MM X 20MM-500MA 1
1.12 27189 JUMPER-G/Y-#16 AWG 1
1.13 20940 GROUND LABEL JUMPER-G/Y-#16 AWG 1
1.14 51847 JUMPER 3
1.15 SEE TABLE TRANSFORMER-V2-575V PRIMARY 1
1.16 25861 SCREW 1/4-20 UNC-2A X 3/8" HEX 2
1.17 29014 TERMINAL STRIP 2
1.18 00001505 SURGE SUPPRESSOR 1
1.19 00001551 RECTIFIER 1
1.20 957854 ROUND HEAD MACHINE SCREW 1
1.21 982470 HEX HEAD MACHINE NUT 1
1.22 00000376 B5 JUMPER 1
1.23 00000537 B8 JUMPER 1
1.24 00000538 B9 JUMPER 1
1.25 00001502 JUMPER-B1 1
1.26 00001503 JUMPER-B2 1
1.27 00001535 JUMPER 'B4' 1
1.28 00001536 JUMPER 'B3' 1
1.29 11782704 CONNECTOR PUSHWIRE ORANGE 2
1.30 983197 WIRING TERMINAL 1
1.4
1.5
1.22
1.29
1.30
1.6
1.16
1.15
1.10
1.9 1.171.7
1.1
1.2
1.13
1.3
1.12
1.27
1.11
1.25
1.20
1.19
1.21
1.18
1.23
1.24
1.14
1.28
1.26
1.8
