CM Lodestar A - Contactor Plate Assemblies for Models J-RRT (2-Speed 380;415;460 V)

88
00001996 (REV AC) 627NH October 2014
1.29
1.30
1.17
1.18
1.19 1.36
1.31.38 1.12
1.11
1.9
1.7
1.81.20
1.10
1.4
1.5
1.1 1.14
1.13
1.2
1.16
1.21
1.37
1.6
1.25
1.15
1.23
1.22
1.24
1.28
1.31
1.32
1.331.34
1.26
1.27
1.35

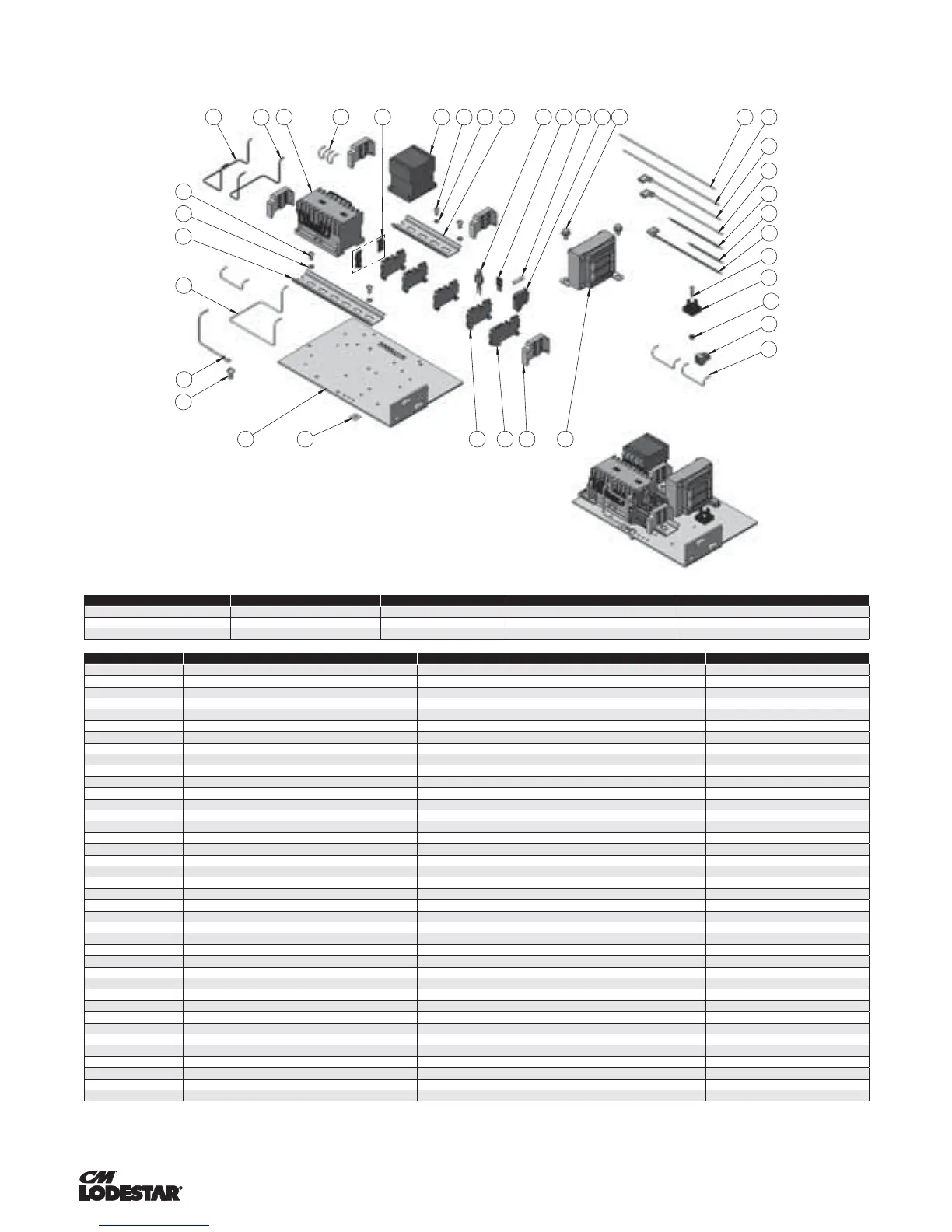

CONTACTOR PLATE ASSEMBLY FOR USE WITH DC BRAKE 2-SPEED UNITS
380/415/460-3-50/60 MODELS J-2, JJ-2, L-2, LL-2, R-2, RR-2, RT-2 & RRT-2
CONTACTOR BKT S/A TRANSFORMER REVERSING CONTACTOR SPEED SELECTING CONTACTOR SECONDARY VOLTAGE
00001707 00000594T 28860 28878 24 V
00001708 00000595T 24797 28871 48 V
00001709 00000596T 24799 28870 110 V
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 SEE TABLE CONTACTOR BKT S/A 1
1.1 00000278 CONTACTOR BRACKET 1
1.2 29010 DIN-RAIL 6.50" LONG 1
1.3 29009 DIN-RAIL 4.50" LONG 1
1.4 982686 SCREW #10-32 UNF-2A X 3/8" SL 3
1.5 987873 LOCK WASHER #10 ASA MEDIUM 3
1.6 909J13 TERMINAL STRIP END CLAMP 4
1.7 00000398 TERMINAL STRIP COVER SEGMENT 1
1.8 29018 FUSIBLE TERMINAL STRIP 1
1.9 29019 TERMINAL STRIP CARTRIDGE 1
1.10 00000393 FUSE-5MM X 20MM-500MA 1
1.11 SEE TABLE TRANSFORMER-V2-230/460 1
1.12 25861 SCREW 1/4-20 UNC-2A X 3/8" HEX 2
1.13 20940 GROUND LABEL 1
1.14 51847 JUMPER 3
1.15 27652 JUMPER (W5) 1
1.16 27657 JUMPER (R4) 1
1.17 27736 JUMPER (R5) 1
1.18 SEE TABLE REVERSING CONTACTOR 1
1.19 29014 TERMINAL STRIP 6
1.20 00000535 SURGE SUPPRESSOR 1
1.21 70246 RECTIFIER 1
1.22 982470 HEX HEAD MACHINE NUT 1
1.23 957854 ROUND HEAD MACHINE SCREW 1
1.24 11782704 CONNECTOR PUSHWIRE ORANGE 2
1.25 00000376 B5 JUMPER 1
1.26 00000537 B8 JUMPER 1
1.27 00000538 B9 JUMPER 1
1.28 982683 SCREW #8-32 UNC-2A X 3/8" 1
1.29 957844 LOCK WASHER #8 ASA MEDIUM 1
1.30 27662 JUMPER 2
1.31 00001500 B3-JUMPER 1
1.32 00001501 B4-JUMPER 1
1.33 00001502 JUMPER-B1 1
1.34 00001503 JUMPER-B2 1
1.35 29047 TERMINAL STRIP BRIDGE 1
1.36 27662 JUMPER 2
1.37 27189 GROUND JUMPER 1
1.38 LC1K09 CONTACTOR 1
