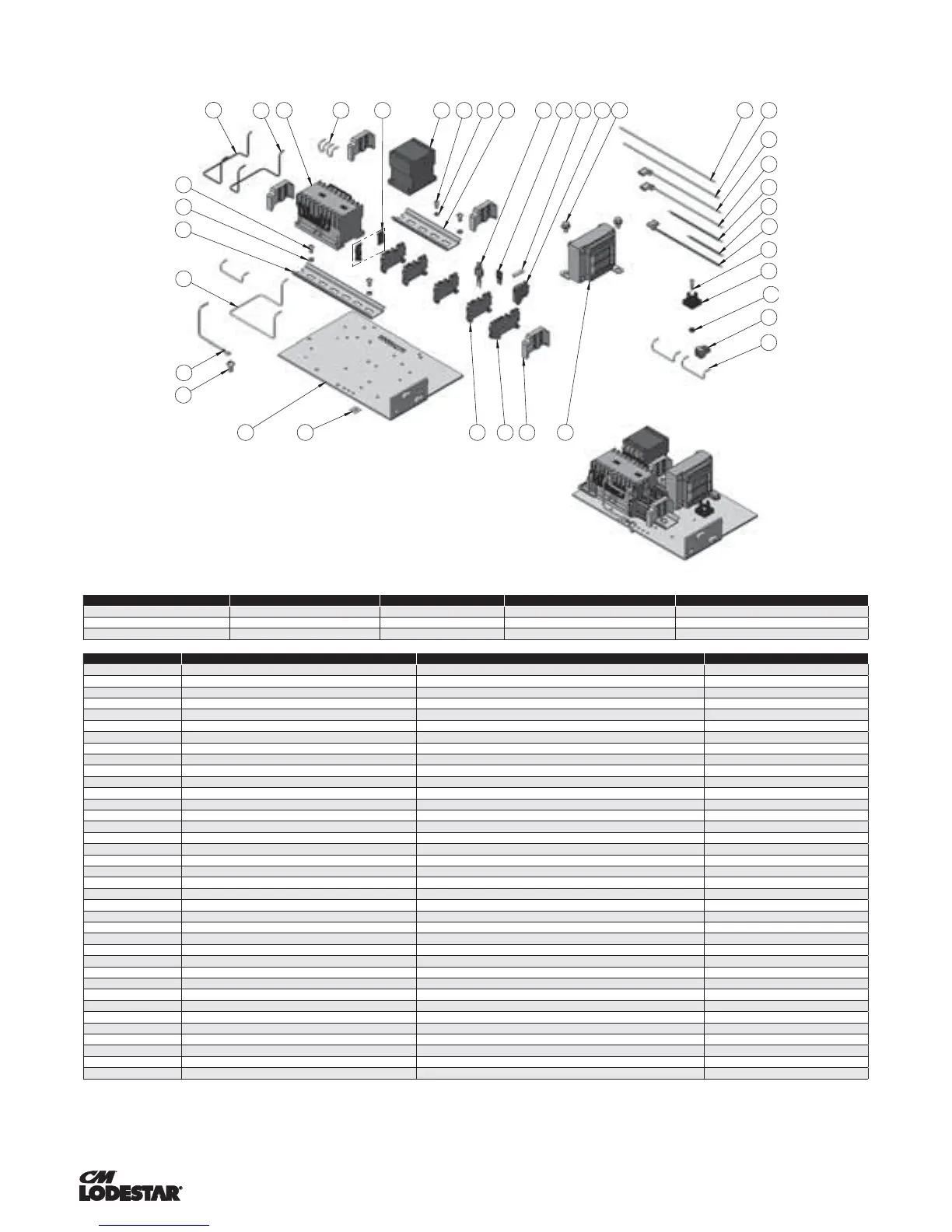

CONTACTOR PLATE ASSEMBLY FOR USE WITH DC BRAKE 2-SPEED UNITS
550/575-3-50/60 MODELS J-2, JJ-2, L-2, LL-2, R-2, RR-2, RT-2, RRT-2
CONTACTOR BKT S/A TRANSFORMER REVERSING CONTACTOR SPEED SELECTING CONTACTOR SECONDARY VOLTAGE
00001713 00000597T 28860 28878 24 V
00001714 00000598T 24797 28871 48 V
00001715 00000599T 24799 28870 110 V
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 SEE TABLE CONTACTOR BKT S/A 1
1.1 00000278 CONTACTOR BRACKET 1
1.2 29010 DIN-RAIL 6.50" LONG 1
1.3 29009 DIN-RAIL 4.50" LONG 1
1.4 982686 SCREW #10-32 UNF-2A X 3/8" SL 3
1.5 987873 LOCK WASHER #10 ASA MEDIUM 3
1.6 909J13 TERMINAL STRIP END CLAMP 4
1.7 00000398 TERMINAL STRIP COVER SEGMENT 1
1.8 29019 TERMINAL STRIP CARTRIDGE 1
1.9 00000393 FUSE-5MM X 20MM-500MA 1
1.10 29018 FUSIBLE TERMINAL STRIP 1
1.11 SEE TABLE CONTACTOR 1
1.12 SEE TABLE TRANSFORMER-V2-230/460 1
1.13 25861 SCREW 1/4-20 UNC-2A X 3/8" HEX 2
1.14 987827 SCREW 1/4-20 UNC-2A X 1/2" 1
1.15 20940 GROUND LABEL 1
1.16 51847 JUMPER 3
1.17 27662 JUMPER 2
1.18 27652 JUMPER (R4)
1.19 27657 JUMPER (R5) 1
1.20 27736 JUMPER (W5)
1.21 SEE TABLE REVERSING CONTACTOR 1
1.22 29014 TERMINAL STRIP 6
1.23 00001551 RECTIFIER 1
1.24 957854 ROUND HEAD MACHINE SCREW 1
1.25 982470 HEX HEAD MACHINE NUT 1
1.26 00000376 B5 JUMPER 1
1.27 00000537 B8 JUMPER 1
1.28 00000538 B9 JUMPER 1
1.29 982683 SCREW #8-32 UNC-2A X 3/8" 1
1.30 00001500 B3-JUMPER 1
1.31 00001501 B4-JUMPER 1
1.32 11782704 CONNECTOR PUSHWIRE ORANGE 2
1.33 957844 LOCK WASHER #8 ASA MEDIUM 1
1.34 27189 GROUND JUMPER 1
1.35 982683 SCREW #8-32 UNC-2A X 3/8" 1
1.36 983197 WIRING TERMINAL 1
