MAN.161 Rev.7 ENG - Use and maintenance manual S15 page
18
of
71
- joystick 4 for lifting/lowering of the pantograph (Picture 9c):
downwards it causes the descent of the pantograph; upwards the
lifting.
- joystick 5 for turret rotation (Picture 9c): downwards it causes the
counterclockwise rotation, upwards the clockwise rotation.
• buttons/selectors group:
- EB emergency button (Picture 9c): red and mushroom-shaped, it
blocks the machine by removing the power supply to the control cir-
cuits. This switch has priority over any other command: it makes
possible only the manual emergency lowering of the machine on the
ground.
The emergency button has an auto-detent mechanical locking
system; therefore, it is necessary to unlock the button turning it
clockwise to reset its operability.
- “dead man” switch for basket levelling/rotation operations 6
(Picture 9c): for the levelling operation, it is necessary to keep push-
ing this switch to the left together with the joystick 1; for the basket
rotation, it is necessary to keep pushing this switch to the right to-
gether with the joystick 1.
- engine start selector 7 (Picture 9c): turning this switch to the left,
the electric engine starts, turning it to the right the endothermic one.
- electrical power supply warning light 8 (Picture 9c): green light,
which is ON when it indicates that the MEWP is correctly and elec-
trically powered;
- platform use consent light 9 (Picture 9c): green light, which is ON
when it allows the use of MEWP aerial part.
- 12 V socket (Picture 9c): on the right side of the box

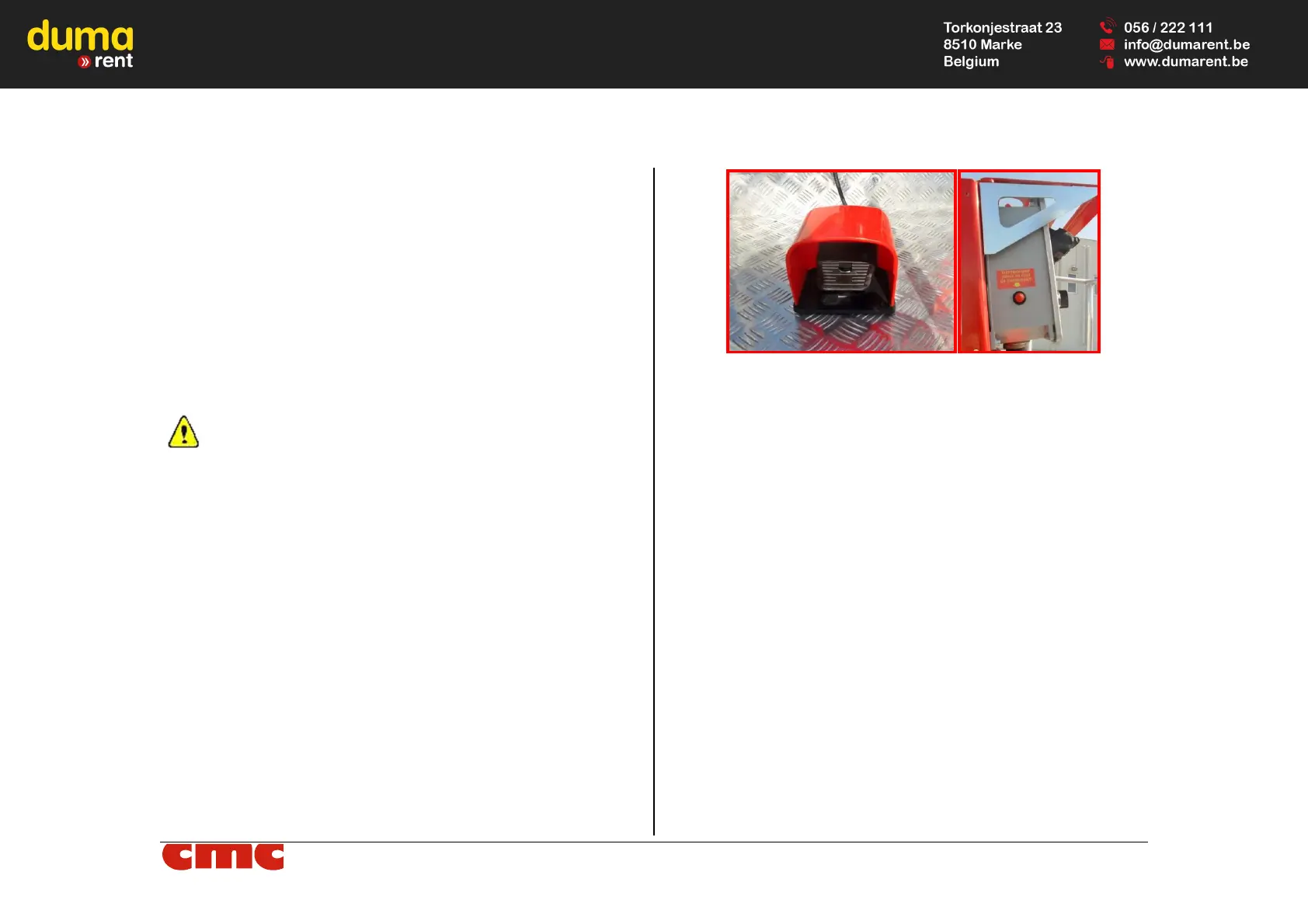

Picture 10: “dead man” pedal (*optional) and left side
of basket control station.
There may be also the following *optional devices in basket:
- joystick for basket rotation (*optional): this additional knob, on
the basket control station, allows you to rotate the basket to the
left or right.
- “dead man” pedal (Picture 10): this pedal (*optional) must be
pressed simultaneously with joysticks for all manoeuvres.
- electropump (*optional) activation button (Picture 10).
3.2.4
Platform emergency control station
The emergency control station is positioned under the turret and is useful in
emergency situations and in case of machine block for the recovery of the
MEWP aerial part.
