MAN.161 Rev.7 ENG - Use and maintenance manual S15 page
38
of
71

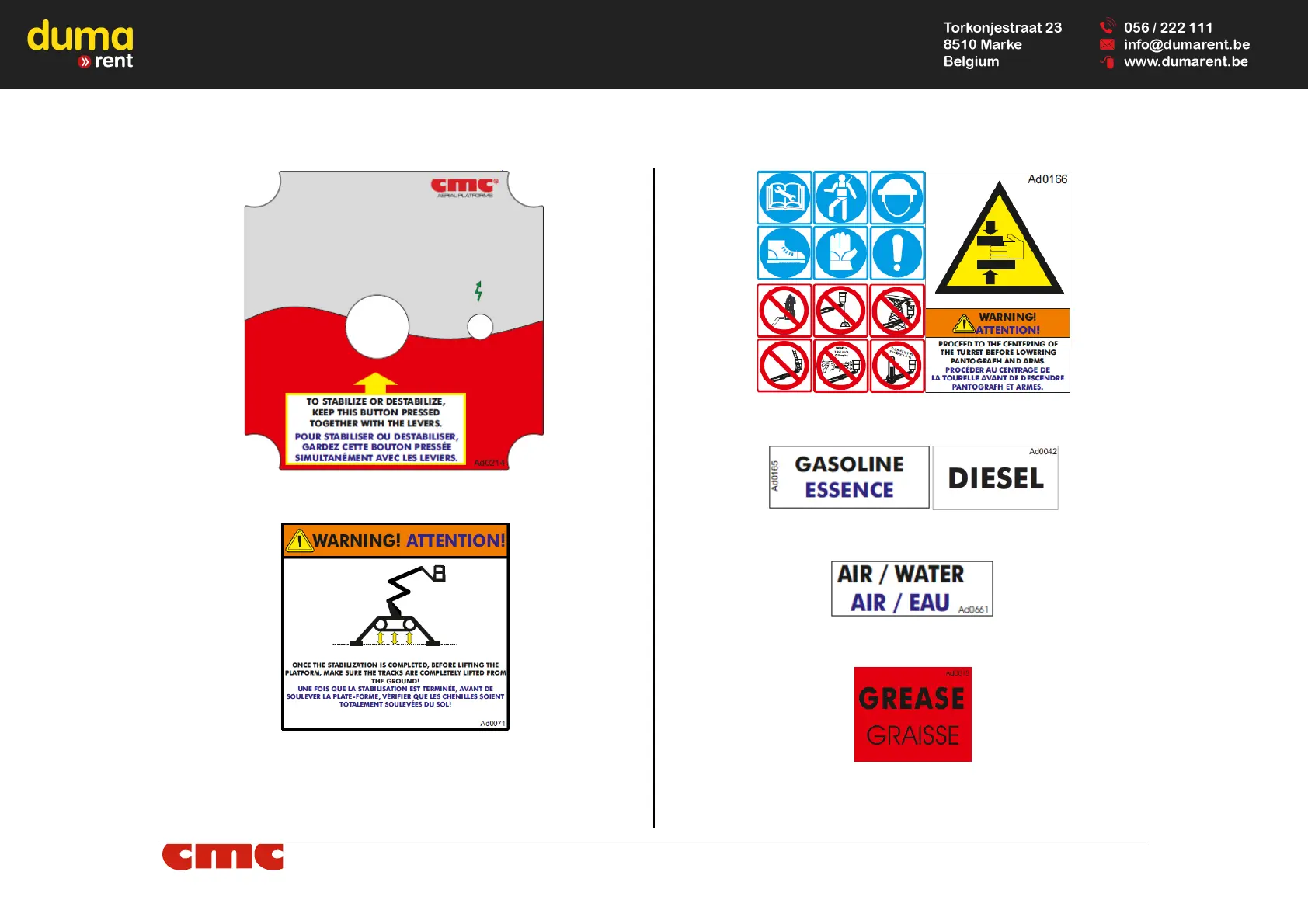

Picture 39: dead man box for stabilization/destabilization.
Picture 40: warning for stabilization.
Picture 41: general obligations and prohibitions.
Picture 42: indication of fuel (gasoline or diesel).
Picture 43: indication of air/water supplies.
Picture 44: indication for grease application.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the CMC S15 and is the answer not in the manual?

CMC S15 Specifications

General IconGeneral
Max Horizontal Outreach7.5 m
Safe Working Load230 kg
Horizontal Reach7.5 m
Drive Speed4.5 km/h
Max Working Height15.0 m
