MAN.161 Rev.7 ENG - Use and maintenance manual S15 page
24
of
71
10. Once stabilization is complete, led 2 (Picture 4) will light up to signal
the stabilization completion and the consent to the maneuvers of the
aerial part of the platform.
4.4.3
Basket assembly and access
11. To carry out the basket operations, it is necessary to go ahead with
the basket assembly after having turned off the machine.

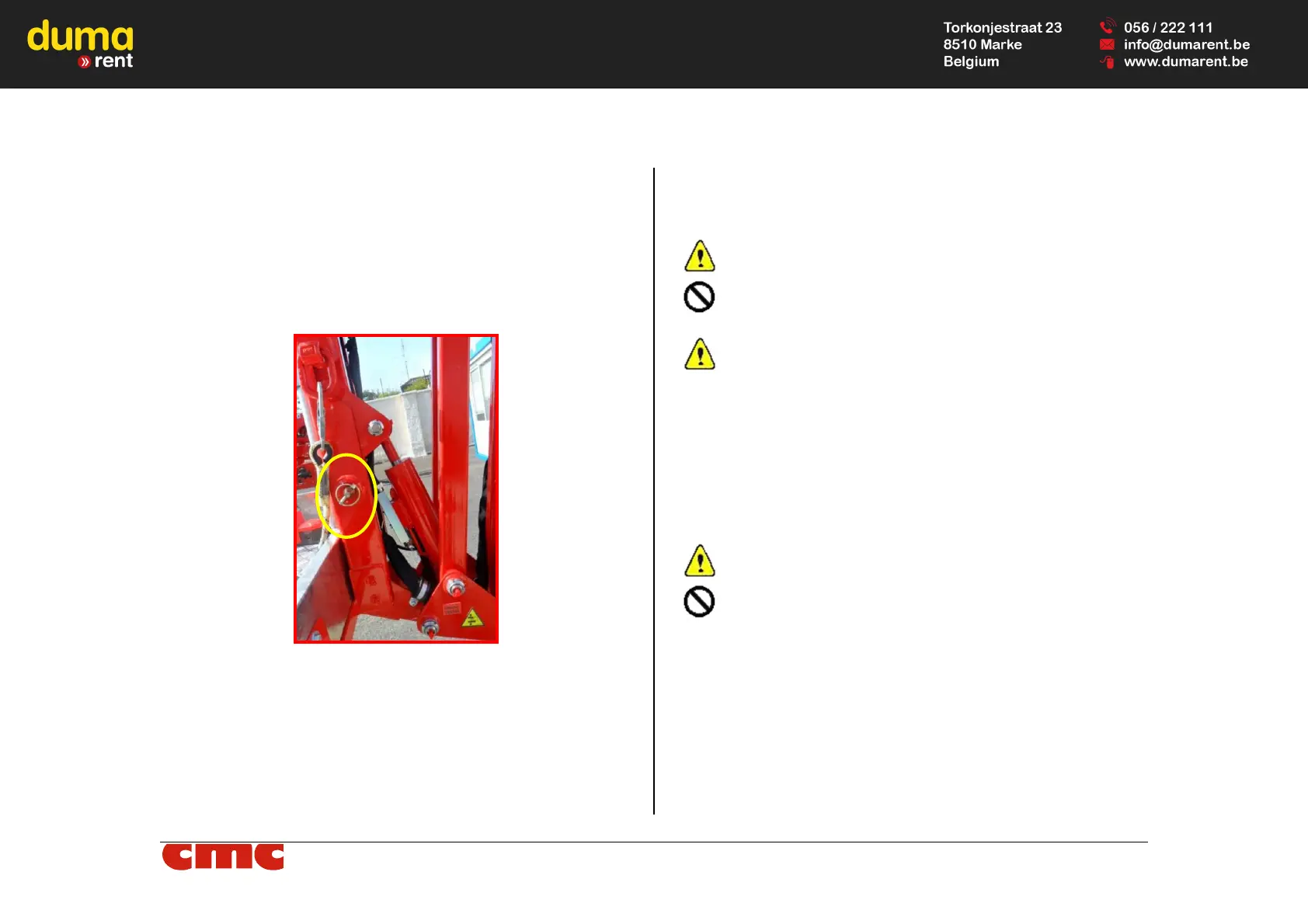

Picture 16: basket coupling.
12. Once the basket is coupled, insert the pin and the cotter pin high-
lighted in Picture 16.
13. The entrance into the basket occurs lifting the self-locking closing
bar and using the underlying step; ensure that the bar is back into
the closing position; fasten the safety belts to the proper hand-
holds in the basket.
4.4.4
Basket levelling
14. After verifying that the led 2 (Picture 4) is on, using the platform con-
trol (operating) station, operate the basket levelling (par. 3.2.3).
The levelling maneuver is active only if the machine is stabilized.
It is strictly forbidden to carry out the levelling operation of the
basket with the machine developed.
Perform the operation of levelling the basket only when the aer-
ial part of the MEWP is in the transport configuration (telescopic
boom retracted and completely lowered, pantograph lowered,
turret centred).
4.4.5
Use of the aerial part
15. Using the platform control (operating) station, carry out the MEWP
aerial part operations through the joystick controls described in the
paragraph 3.2.3.
First lift the pantograph in order to rise it from the support.
It is strictly forbidden to rotate the turret as first movement since
it could cause heavy damages to the carpentry.
4.4.6
Setting the MEWP in the transport position
16. To place the MEWP in the transport position, it is necessary to first
return the aerial part and then destabilize the machine.
17. Operate the MEWP aerial part closing, lowering the pantograph on
their support, centring the turret, returning the boom, by using the
platform control (operating) station.
