CMC S15 User Manual

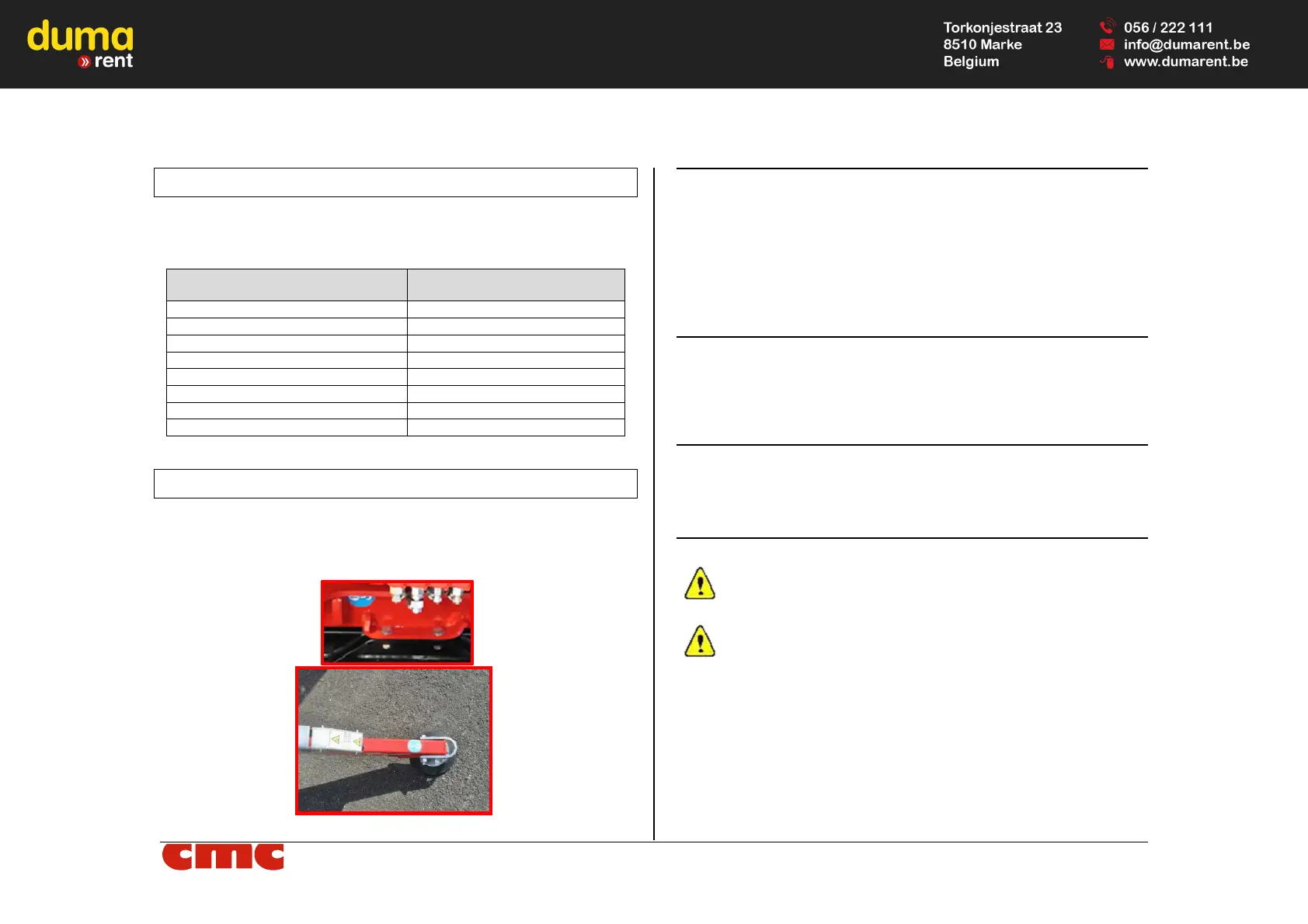

MAN.161 Rev.7 ENG - Use and maintenance manual S15 page 21 of 71
4.2

Safety distances

Below there are the safety distances to be kept by qualified staff (alternating
current):
Voltage field of electric line Minimum safety distance
Up to 300 V
Avoid contact
300 V < x > 750 V
1 ft. 0 in. (30,5 cm)
750 V < x > 2 kV
1 ft. 6 in. (46 cm)
2 kV, < x > 15 kV
2 ft. 0 in. (61 cm)
15 kV < x > 37 kV
3 ft. 0 in. (91 cm)
37 kV < x > 87.5 kV
3 ft. 6 in. (107 cm)
87.5 kV < x > 121 kV
4 ft. 0 in. (122 cm)
121 kV < x > 140 kV
4 ft. 6 in. (137 cm)
4.3

Transport, storage and package

To load/unload the platform, it is possible to use a travelling crane of ade-
quate capacity. For this operation, sling the MEWP as in Picture 12 by the
coupling at the feet of the outriggers and on the chassis.
Picture 12: couplings for machine sling.
 Lifting operations must be carried out when the machine is closed.
 Be careful not to damage machine.
 Always use the personal protection equipment; do not handle ropes
or chains without gloves.
 The presence of people in proximity of MEWP during the operations
is forbidden.
Alternatively, the loading/unloading can be done through ramp, exploiting
the motricity of the machine as well as its ability to overcome slopes not
>14° (25%). If you choose this option, please proceed with the following pro-
cedure, and carefully reading the danger notes suggested.
 Comply with the rules in force about width, height, weight and
transport speed allowed.
Check that the limit gauge is compatible with the features of the route
to be made (i.e. galleries, bridges, electrical and phone lines, etc.).
WARNING! In both cases, it is advisable to remove the basket to
reduce encumbrances and favor the operations.
For loading/unloading operations by ramps, use the wired re-
mote control from the ground.

CMC S15 Specifications

General

Max Horizontal Outreach	7.5 m
Safe Working Load	230 kg
Horizontal Reach	7.5 m
Drive Speed	4.5 km/h
Max Working Height	15.0 m
