MAN.161 Rev.7 ENG - Use and maintenance manual S15 page
22
of
71
4.3.1
Loading/uploading through ramp

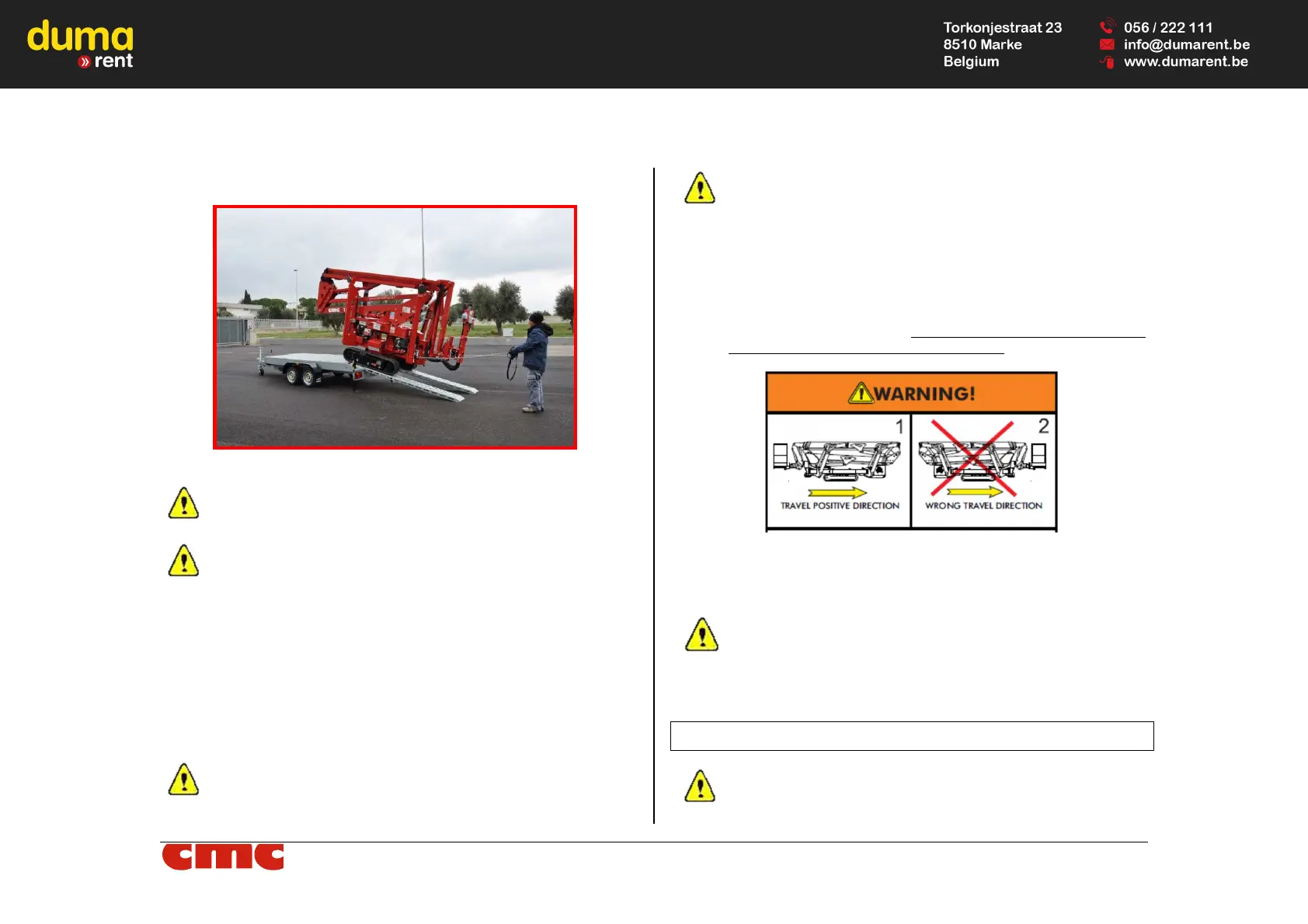

Picture 13: loading/uploading through ramp by wired remote control.
Check that no one is in proximity and that the MEWP is in
transport configuration.
To ensure a better stability during loading/uploading operations, it is
possible to disassembly the basket and to extract the tracks (*op-
tional), widening the ground encumbrance.
0. Unhook the basket by removing the pin and pulling it upwards, de-
coupling it from the support mounted on the jib. Reposition the pin
in the bush and reinsert the cotter pin.
1. Connect the travel control station (Picture 5).
2. Place a couple of ramps and bring them in correspondence of the
machine tracks.
In case of climb on a truck, use loading ramps of adequate size
and strength.
Check that the ramps slope (attack) does not exceed 16° (29%)
with jib closed and 30° (58%) with jib lifted and on engine side.
Verify that ramps are perfectly clean from grease, mud, snow or
ice.
3. Start the petrol/diesel or electric engine.
4. Control the travel operations slowly and only in the direction indi-
cated in the following figure: the basket, if not disassembled, shall
always be placed at the rear of the machine.
Picture 14: right travel direction.
5. Turn off the machine engine.
6. Ensure the MEWP to the truck plane.
WARNING! If you get the machine on a truck, secure the ma-
chine to the truck plane by couplings on the chassis and on the
outriggers. Keep the machine switched off during the transport.
4.4
MEWP use procedures
The following procedures shall be carefully carried out in the
correct chronologic order.
