MAN.161 Rev.7 ENG - Use and maintenance manual S15 page
33
of
71
5 Markings
On the machine there are the following marks.
Before using the MEWP, it is compulsory to check the presence
and the perfect readability of these marks. In case of absence or
decay of the marks, contact the Service.

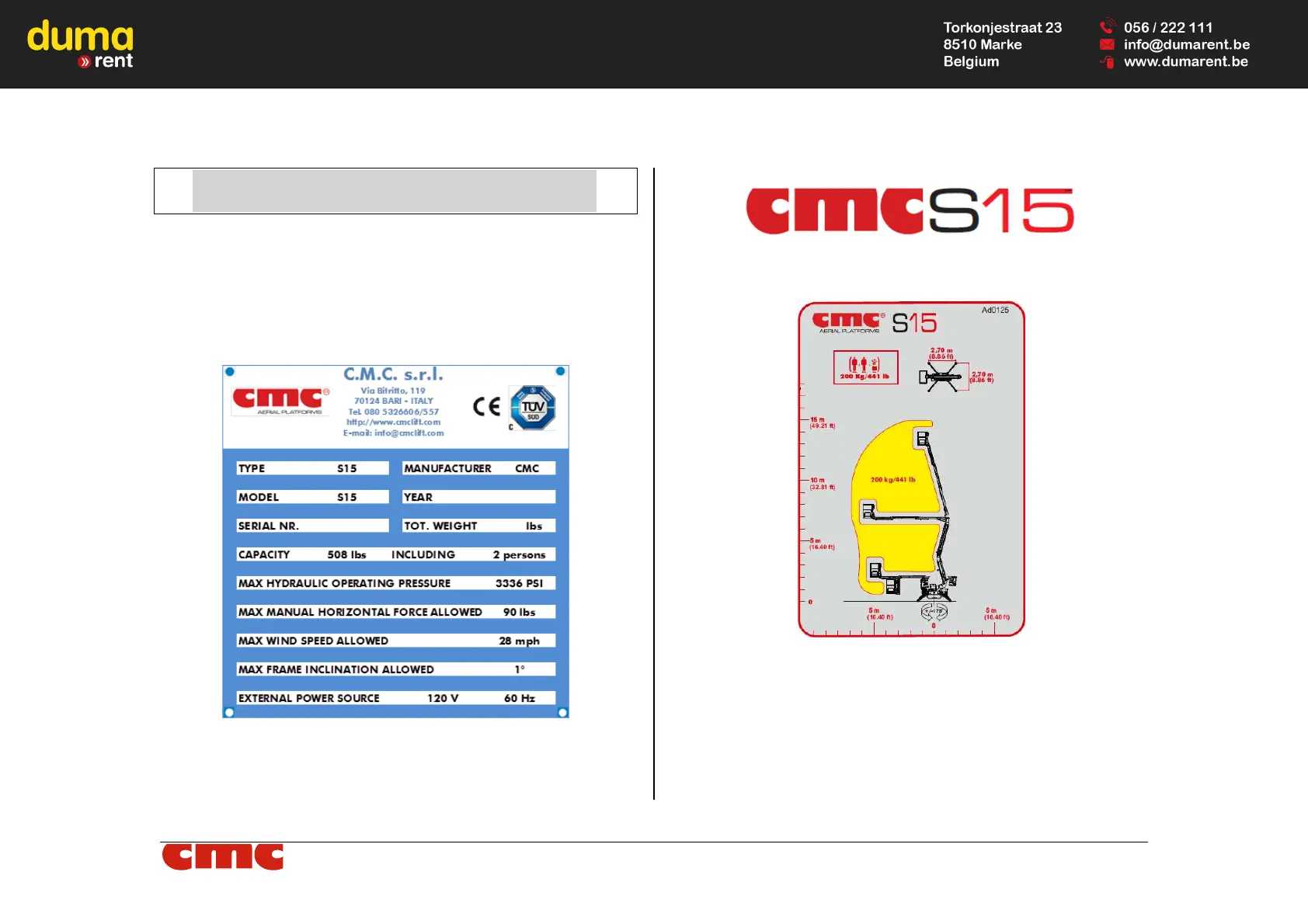

Picture 22: identification plate (fac-simile).
Picture 23: MEWP model mark.
Picture 24: working diagram with
maximum load 200 kg (441 lb).

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the CMC S15 and is the answer not in the manual?

CMC S15 Specifications

General IconGeneral
Max Horizontal Outreach7.5 m
Safe Working Load230 kg
Horizontal Reach7.5 m
Drive Speed4.5 km/h
Max Working Height15.0 m
