MAN.161 Rev.7 ENG - Use and maintenance manual S15 page
25
of
71
WARNING! Center the turret before lowering the booms.
18. Unfasten safety belts, get off the basket using its underlying step.
19. Perform the withdrawal of the outriggers, running the appropriate
levers 1, 2, 3, 4 (Picture 8).
During the destabilization, proceed by carrying out the opera-
tions in the following sequence:
a. close the tracks;
b. lift the stabilizers.
During these operations, keep away from the tracks and pay at-
tention to the feet.
20. Finally, it is possible to restart the MEWP to bring it back to the park-
ing position.
If full lithium version, at the end of the work, always remember
to charge batteries.
4.5
Battery pack recharge
For full lithium version, in order to recharge the battery pack (Picture 17), it
will be necessary to stall the machine.
Then operate according to the following procedure:
1. push the MS button (Picture 4) to switch off the machine;
2. couple the 110/120/230 V plug (power line) to the connector on the
machine and press the appropriate button of the magnetothermic
switch;
3. now the batteries will be in charge and the charge progress can be
evaluated through the leds 9 on the basket control station (Picture
9b).

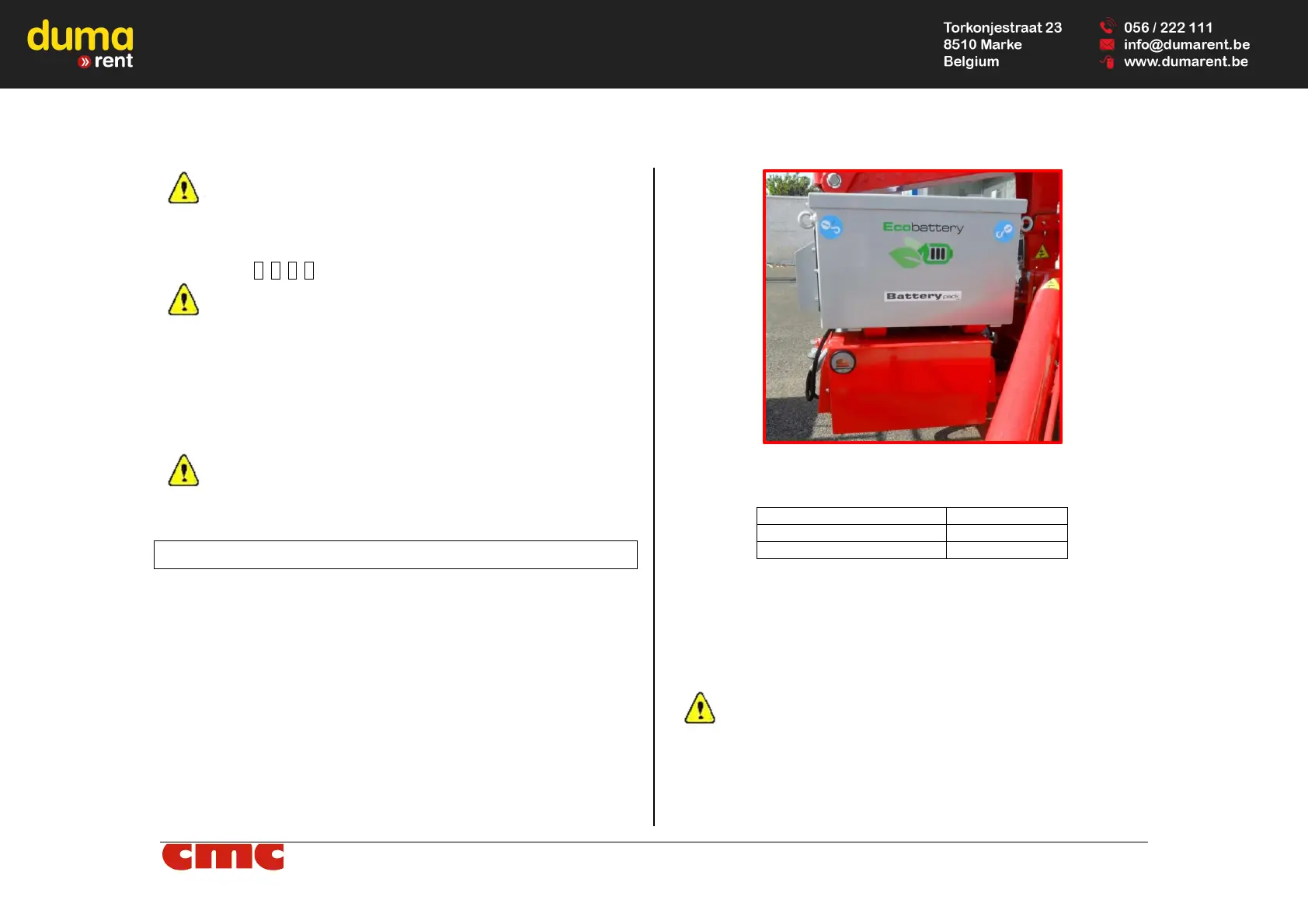

Picture 17: battery pack.
The charge times are:
0% - 80% 4 h
80%-100% 2 h
With a full charge (100%), S15 Eco-Battery is able to perform at least 10
work cycles. A work cycle includes the following sequence of operations:
1) stabilization;
2) complete machine development;
3) complete machine return;
4) destabilization.
AT THE END OF EACH WORKING SESSION AND HOWEVER AT
LEAST EVERY 15 DAYS, IF THE MEWP IS NOT USED,
ABSOLUTELY RECHARGE THE BATTERY PACK.
