MAN.161 Rev.7 ENG - Use and maintenance manual S15 page
39
of
71

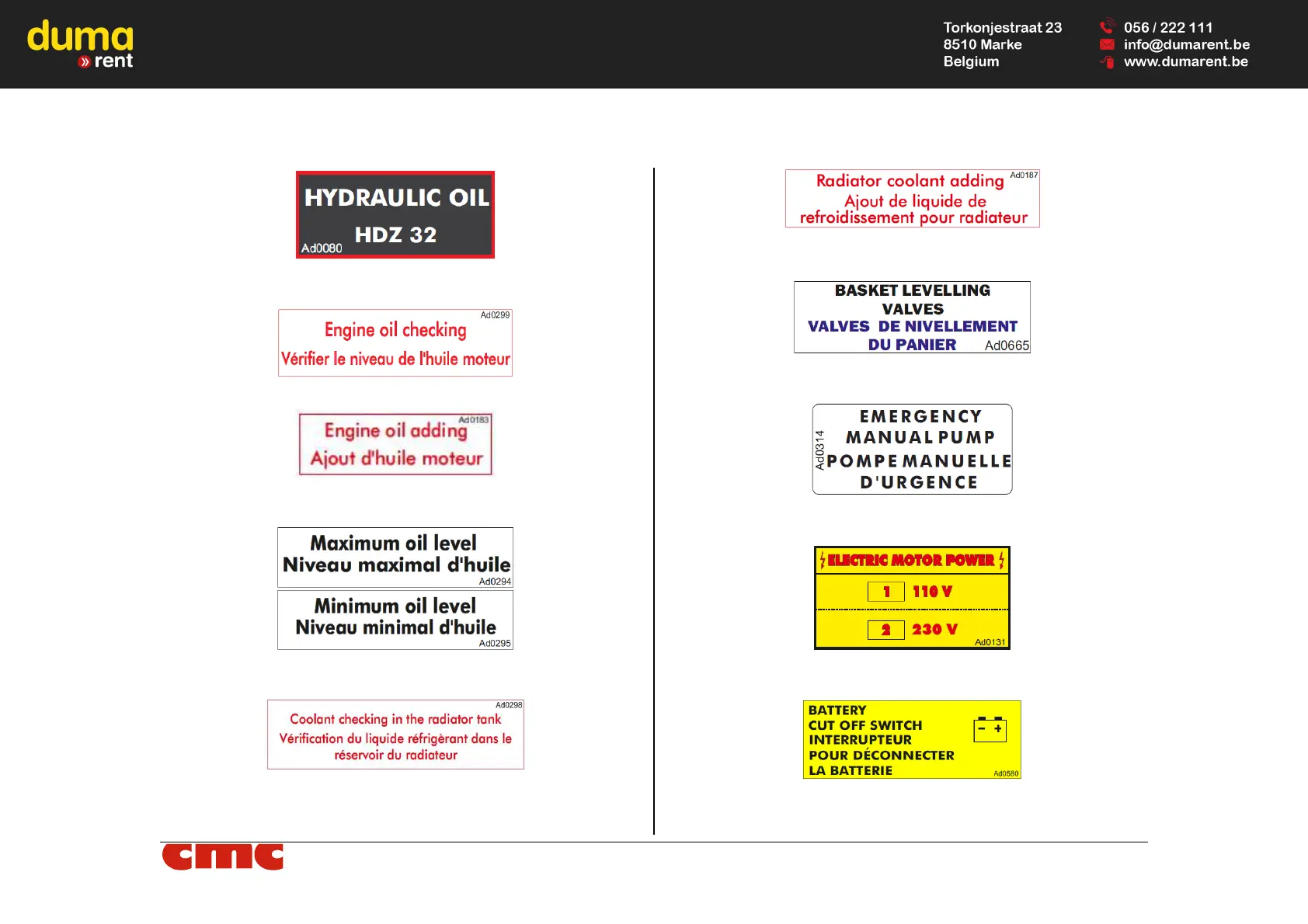

Picture 45: indication for oil refill.
Picture 46: indication for engine oil checking.
Picture 47: indication for engine oil adding.
Picture 48: indication of minimum/maximum oil level.
Picture 49: indication for coolant checking.
Picture 50: indication for coolant refill.
Picture 51: indication of basket levelling valves.
Picture 52: indication of insert for emergency manual pump lever.
Picture 53: auxiliary electric motor power (*optional).
Picture 54: engine battery cut off switch.
