If full lithium version, before any work start, check the battery
charge level. It is necessary to have at least 75% of battery charge,
otherwise it is advisable to charge them before working.
4.4.1
Placement in the working area
1. Turn on the engine (Picture 4).
2. With machine ready to travel or to be stabilized, identify the work-
ing area which is nearest to the place to reach, and reach it by the
travel joysticks J1 and J2 (Picture 5).
C.M.C. obligates to use the wired remote controls, in order to
perform the travel operations in complete safety.
3. Make sure the soil bears the load of the outriggers and check that
there are no manholes, floors or other soft structures in the contact
point of every outriggers plate with the ground.
If these conditions are not met, it is strictly forbidden to use the
MEWP.
4. Be careful not to exceed the maximum slope limits that can be
faced by the machine: 14° (25%) longitudinally e 10° (18%) trans-
versally.

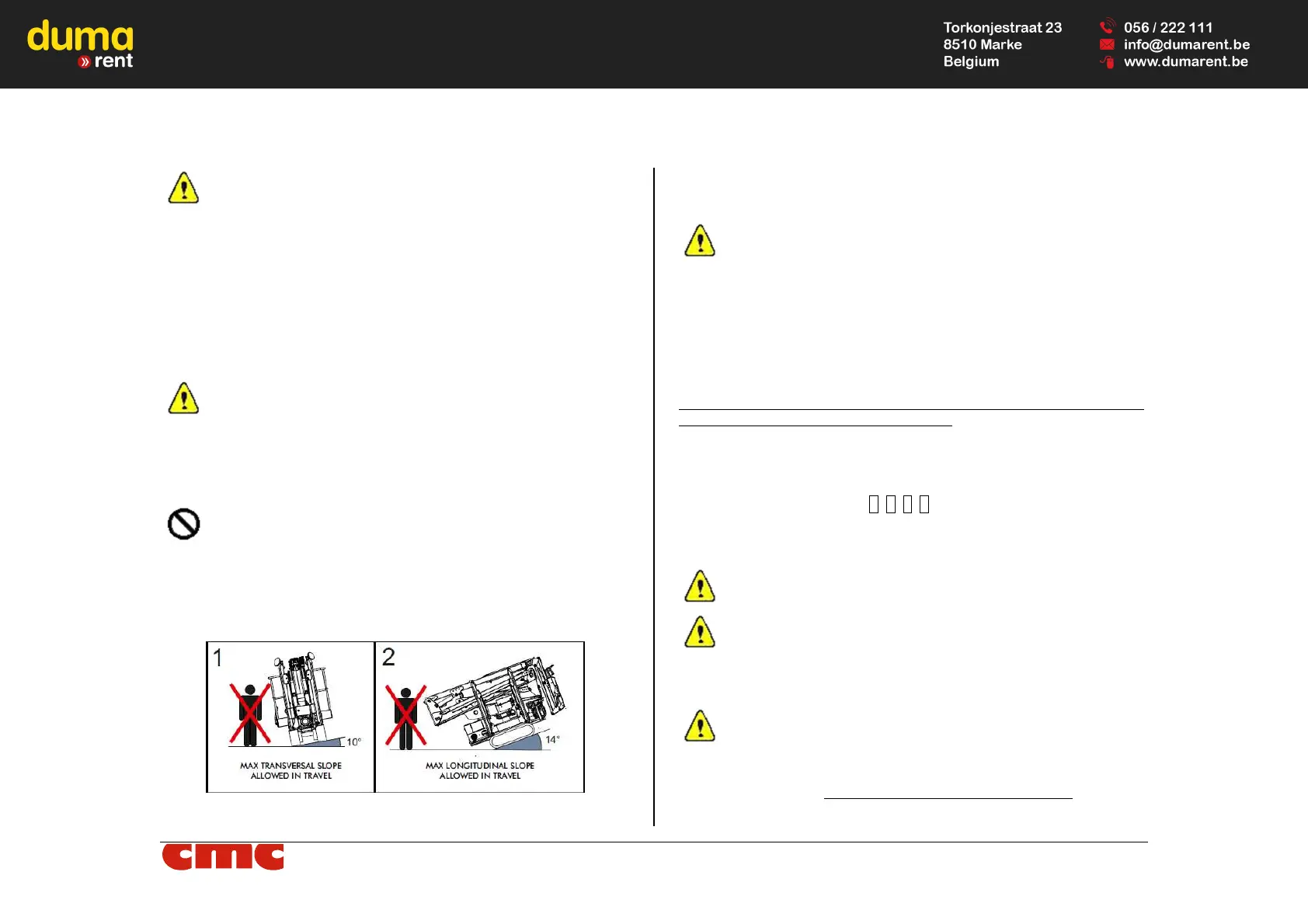

Picture 15: maximum slopes allowed in travel.
5. Place the MEWP on the chosen area.
6. Mark the working area with proper signs (white-red tape, white-red
chains, pins, etc.).
When traveling, respect a distance of at least 4 meters and make
sure that no one stays within a radius of at least 5 meters.
4.4.2
MEWP stabilization
The MEWP has only one stabilization area, given by the openings of the
front and rear outriggers. An electronic locking system uniquely ensures
the working area.
The movement of the outriggers must be possible only when the boom and
the pantograph are resting on their supports. This is signalled by the light-
ing up of led 1 on the machine switching on/off box (Picture 4).
7. Reach the outriggers control station (Picture 8);
8. Using the “Outriggers control station”, lower the front and rear out-
riggers with the levers 1, 2, 3, 4 (Picture 8). The release of the out-
riggers leads first to the contact of the four outriggers plates with the
ground and then to the lifting of the frame. Proceed with the com-
plete stabilization of the machine.
STABILIZE ONLY WITH CLOSED TRACKS!
It is essential to carry out stabilization by operating all four lev-
ers simultaneously. Once the plates have touched the ground, it
will be possible to continue to perform alternate cycles first on
the two front stabilizers and then on the two rear stabilizers.
Check that maximum slope to stabilize not exceed 8° (14%).
9. Check the machine levelling, by watching the air bubble level on the
counter frame: the maximum frame slope allowed is 1°.
