General description
2-8 Chapter 2: Introduction 98-158751-C
2.1.6 Electrical interfaces - overview

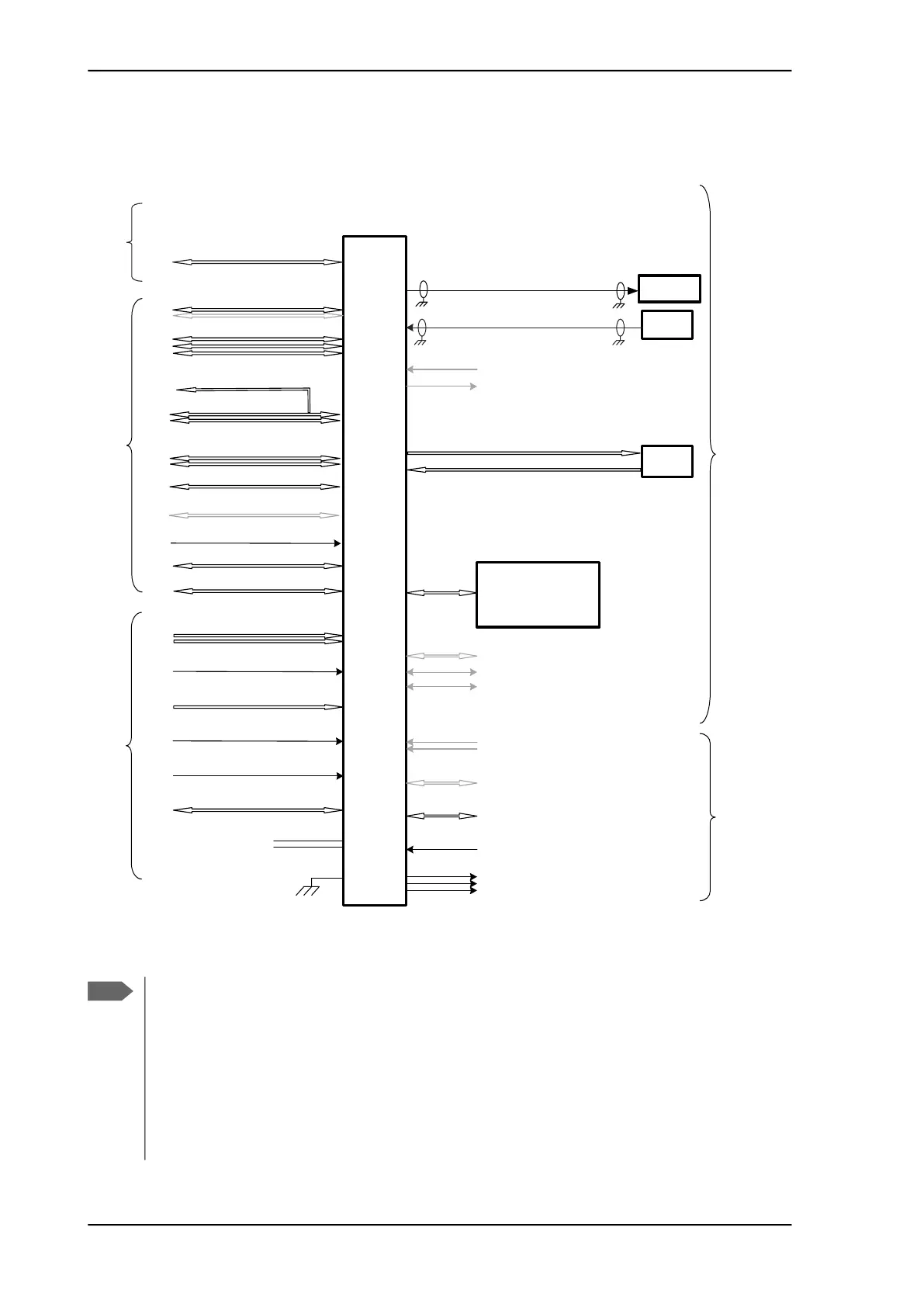

Figure 2-2: Electrical interfaces - overview
Note
The interfaces greyed out are disabled or not in use in the AVIATOR 700S
software. This can be due to interfaces not being supported or reserved for future
use.
Interfaces marked in black are supported in the AVIATOR 700S software.
For interfaces marked in black showing support of 2 interfaces, at least one will
be implemented. This is the case for AISD EFB Ethernet, e.g. picture shows
2xEFB, but only one EFB interface is available. The second AISD Ethernet is
reserved for test or maintenance use.
SDU-
5045
CSDU
2 x IRS/AHRS/GNSS/NPI (A429)
Aircraft Interfaces
Aircraft Power : 115V AC
HGA Multi-Control (A429)
Chassis ground
Cabin interfaces
Internal Satcom interfaces
SCM-5055
SDU Configuration
Module (SCM)
1 x Ethernet on Front Panel
(for production only)
2 x ATE Inputs for production
HGA BITE (A429)
1 x LNA BITE discrete
1 x LNA On/Off discrete
1 x SCM
1 x SDU Reset discrete
3 x Status LED on Front Panel
2 x PIESD (Cabin)
10/100 BaseT Ethernet
Cockpit interfaces
2 x AISD (EFB) Ethernet
1 x ARINC-429 Dual System Crosstalk
3 x MCDU (A429)
2 x ACARS/CMU (A429)
2 x Cockpit Audio
1 x Priority Ethernet
1 x Data Loader A615A (Ethernet)
1 x Data Loader A615-3 (A429)
1 x AES ID (A429)
1 x WOW Discrete
1 x CFDS/CMC (A429)
8 x Cockpit Voice Discrete
1 x Dua l Syste m Select
1 x Dua l Syste m Disab le
1 x USB on Front Panel
(for maintenance only)
1 x Push-to-Test on Front Panel
Production/Maintenance
interfaces
HPA-5015
DLNA
Inmarsat TX+Signalling
up to 5 SIM Cards
CSDU
SCM
MCHPA
ECAM / EICAS (FWC/FWS)
1 x Tx Mute Discrete
1 x Data Load Discrete
HGA
Inmarsat RX
