Electrical installation and wiring
98-158751-C
Chapter 4: Installation
4-33
4.3.27
MCHP
A
ARINC 600 connector
block

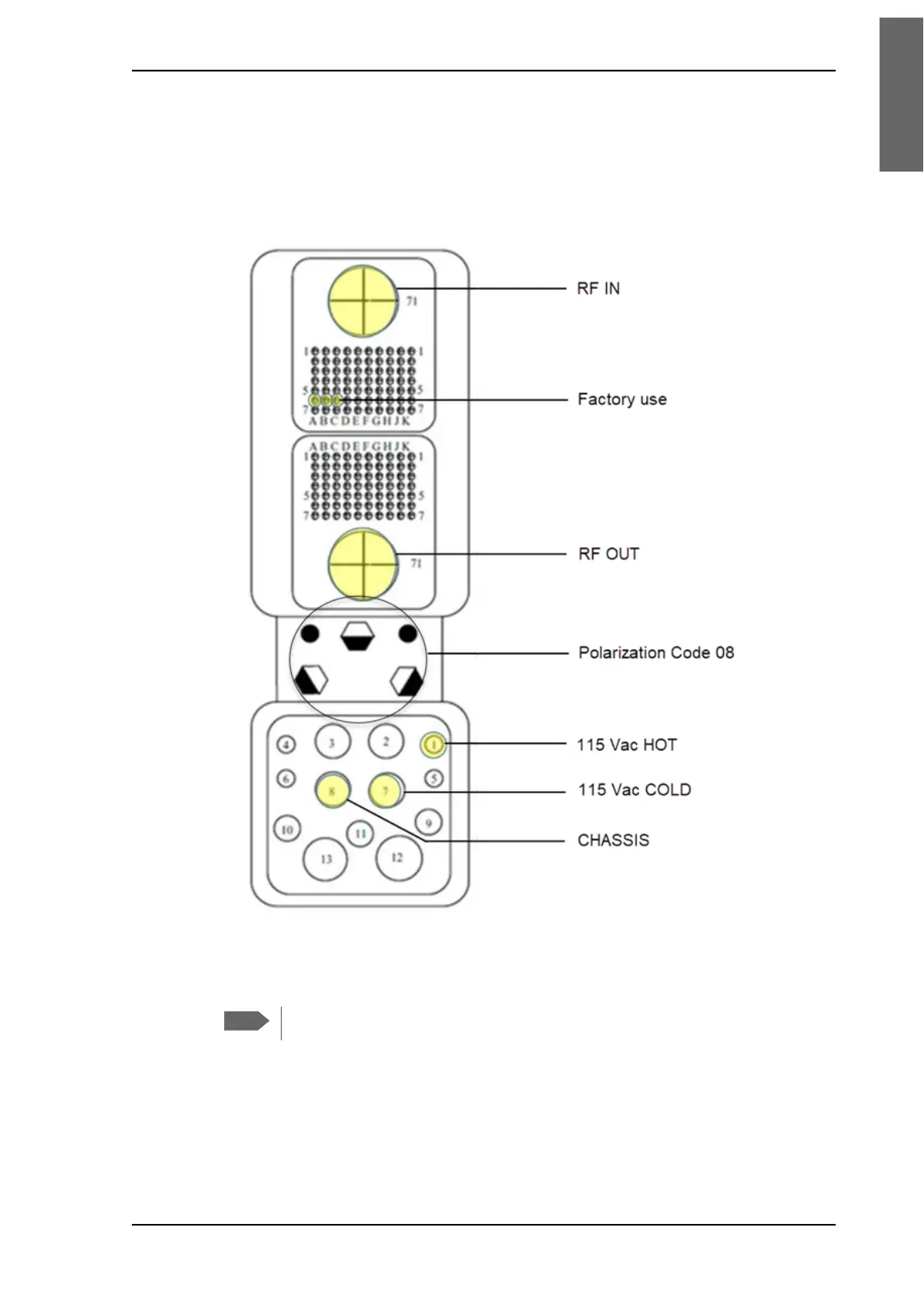

ARINC 600 connector
drawing - overview
Figure 4-13:
MCHP
A
ARINC 600 connector specifications
Note
Other pins are not used by MCHPA.
