3. Preparing for Installation
3.1. Unpacking
The analyser and any other items are normally protected for transportation by an expanded foam packing
material. When unpacking, please ensure that smaller items are not discarded with the packing material.
If any items are missing please inform CODEL or your local CODEL agent immediately.
3.1.1. The Basic Analyser
- standard supplied items

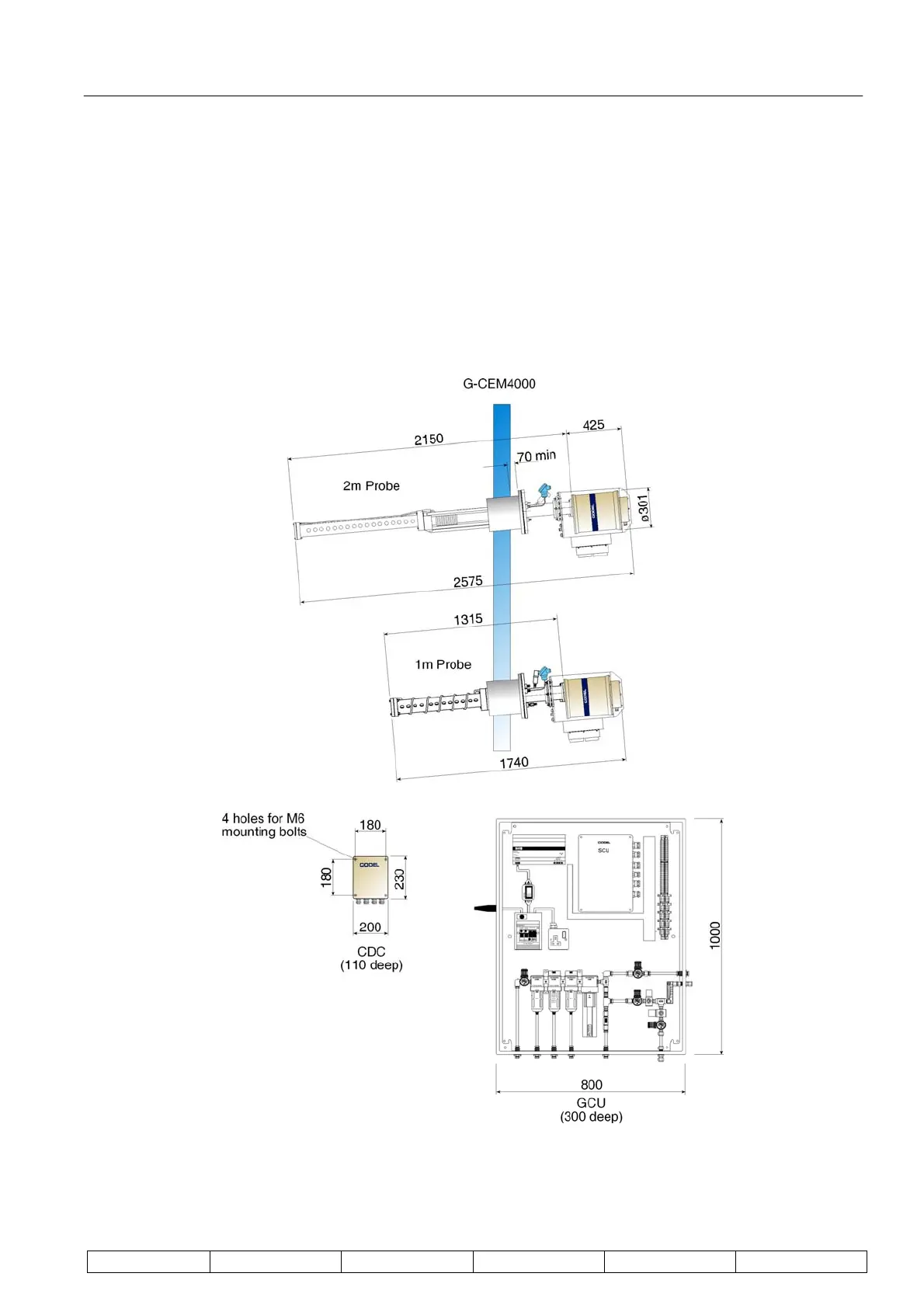

Figure 3 : Standard Supplied Items and Dimensions
