Technical Manual
Page
32
CODEL
OPS.080
Issue : C
Rev. :
Date : 16/7/08
Doc. i/d : 0080/6
Ref. : 080040
Note that in the example shown, 9000 i
s eq
ual to 9000-4
000(software offset) = 5000 = 50
o
C. Similarly, 4999 =
49.99
o
C.

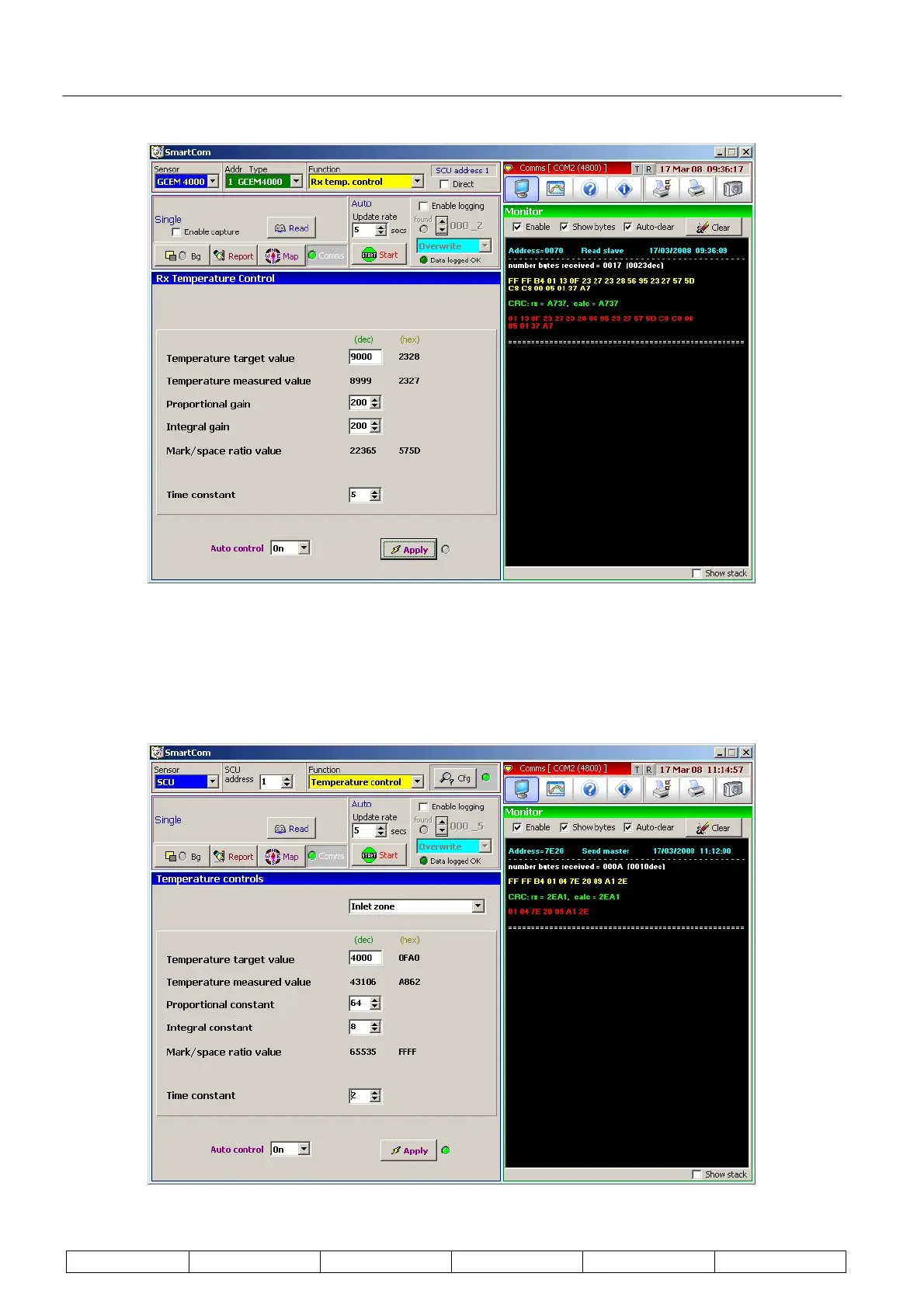

5.3.6. AWC Temperature Control
The active weather cover temperature is
checked and
adjuste
d via ‘Sensor-S
CU’ and the temperature co
ntrol
via ‘Function’ as shown in the screen below.
37
39
