e-mark create marking device Chapter 6 Maintenance
CODI Standard 1.0 49/60
Operating and Maintenance Manual

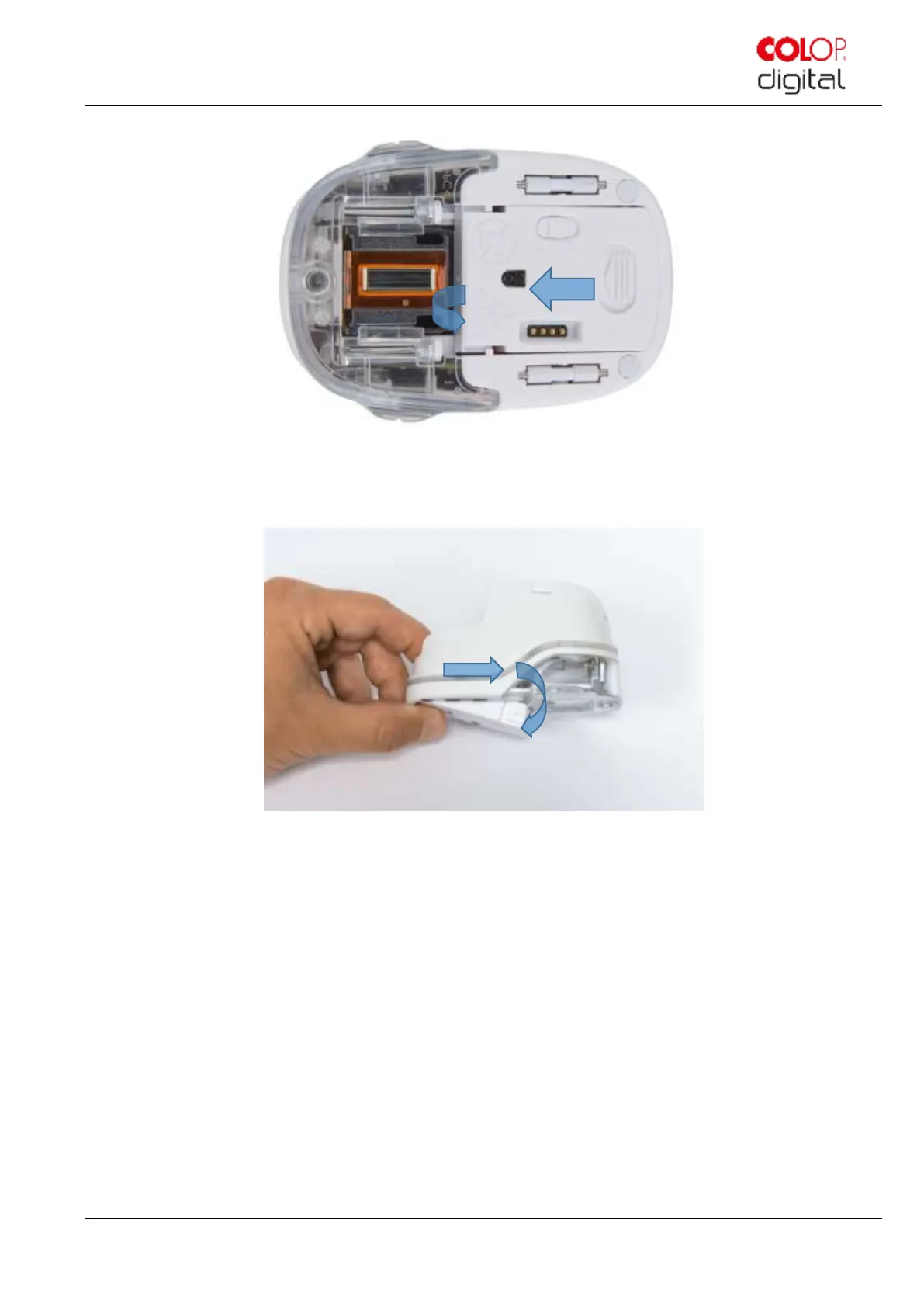

Fig. 42: Opening the sliding panel
Fig. 43: Sliding panel open
6. Pull down the lower sliding panel.
- Slide the underside of the e-mark create in the direction of the arrow.
- Press the panel downwards at an angle.
7. Remove the old ink cartridge and dispose of responsibly.
- Pull the ink cartridge to the rear using the ridges
- Remove the ink cartridge from the e-mark create
