11. Close lower flap cover
- Shut with a click.
- The cover moves against the spring into the closed position in the opposite direction of the arrow.

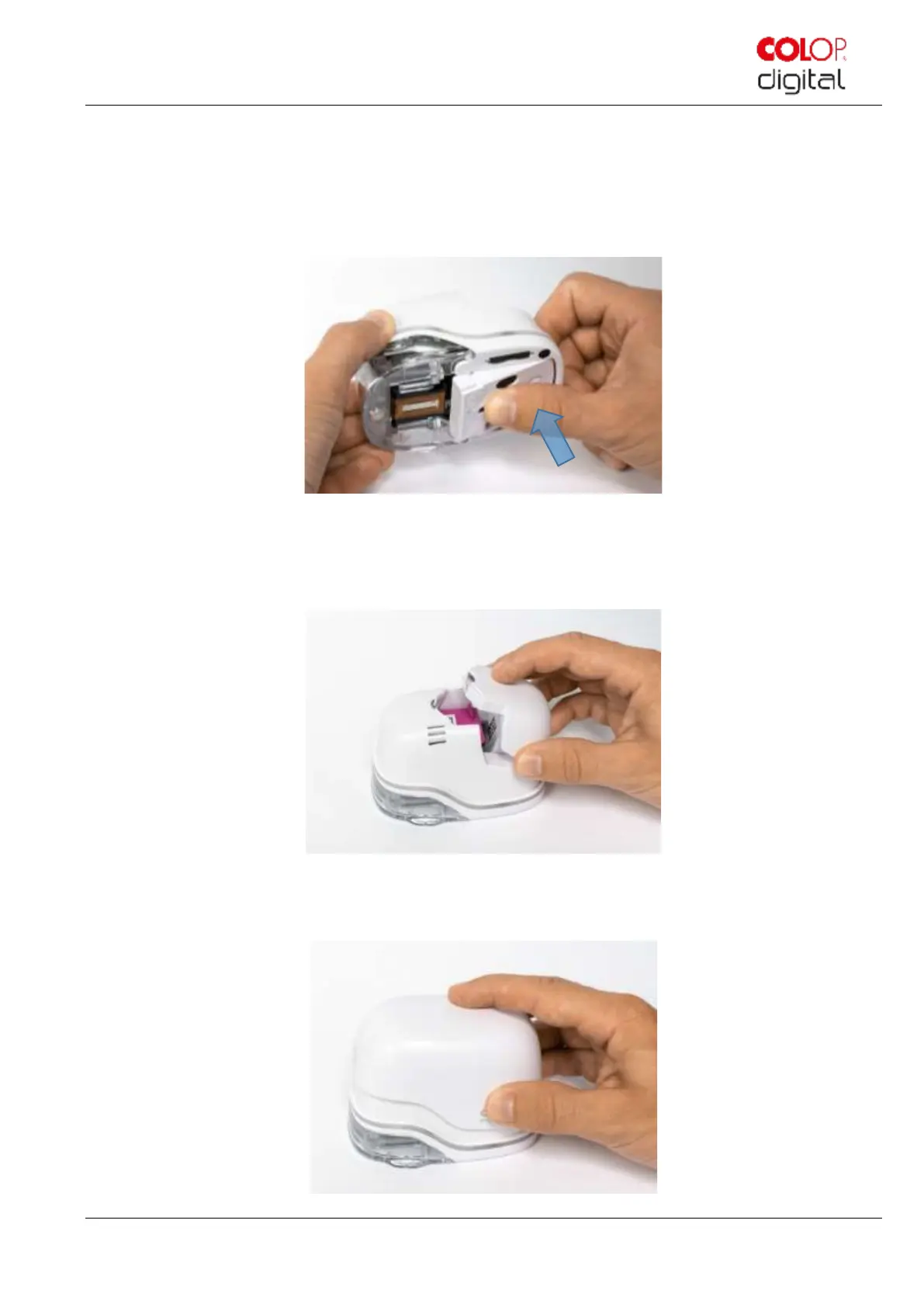

Fig. 47: Close lower flap cover
12. Insert battery
- Push towards the ink cartridge.
- Press the battery forwards until the lever on the top clicks in.
Fig. 48: Insert battery
13. Close cover.
Fig. 49: Cover closed
