Page 14 INSTALLATION & USER'S MANUAL CLITE2
CLI-30001, ANTI VIBRATION KIT 8.
Service instruction no: CLI-30001
Revision date: 2016-02-10
Applicable models: CLITE2, CL20-11, CL25-**, CL35/38-**
Spareparts needed (refer to CL spareparts list)
1
: CLS-25130 Anti vibration-kit × 1 (included in delivery)
2
Tools and supplies required:
1
17mm ratchet wrench × 1
2
17mm wrench × 1
3
4
Important information
This instruction shows how to install the anti-vibration kit which consists of four dampers with
integrated stainless steel tubes.
The dampers main function is to absorb the harmful vibrations that can damage the mechanics
and shorten the life of the bulbs (CL20, CL25 CL35/38). Searchlight installations without
dampers will uncompromisingly, void the warranty.
Figure 1

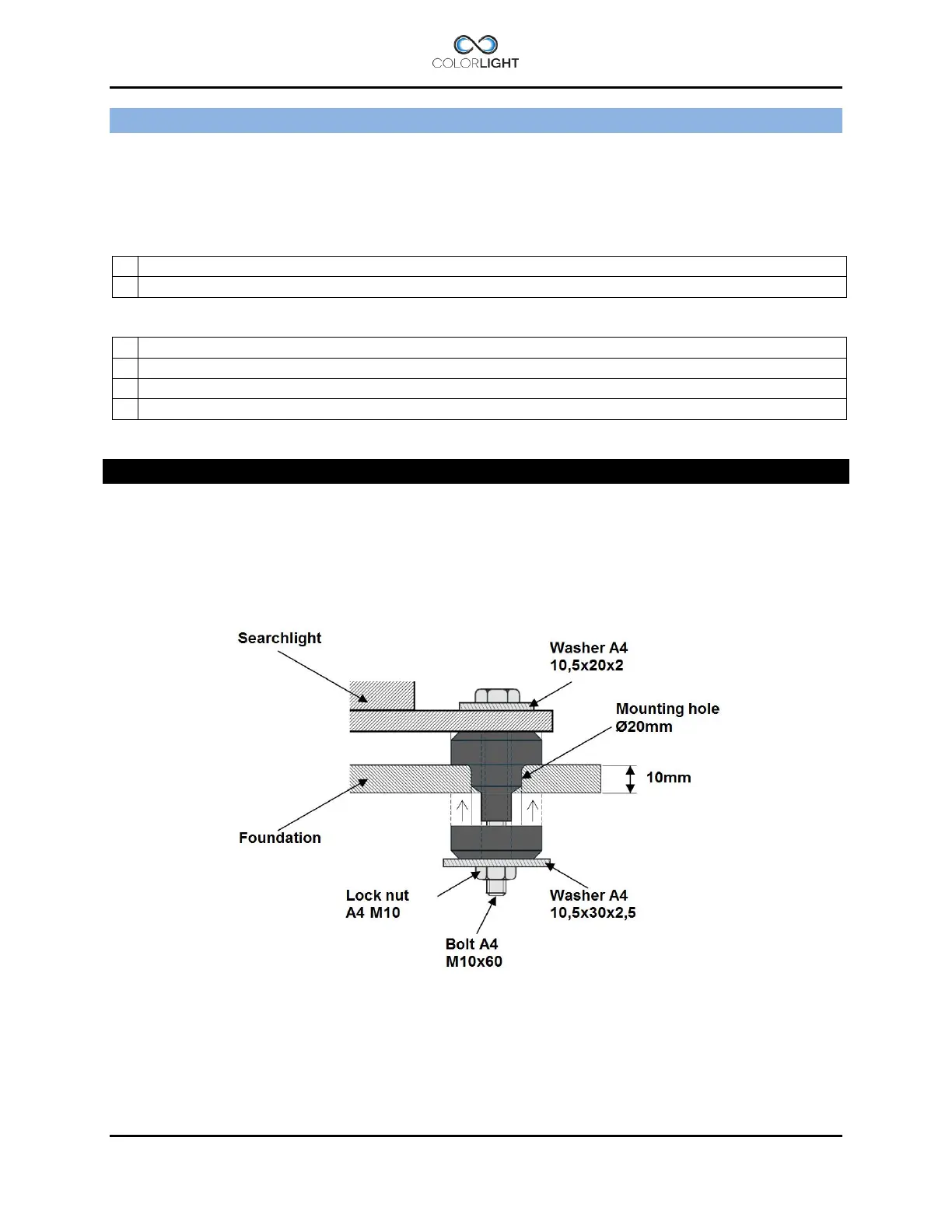

1. Overview of the damper assembly and its parts.
