Page 56 INSTALLATION & USER'S MANUAL CLITE2

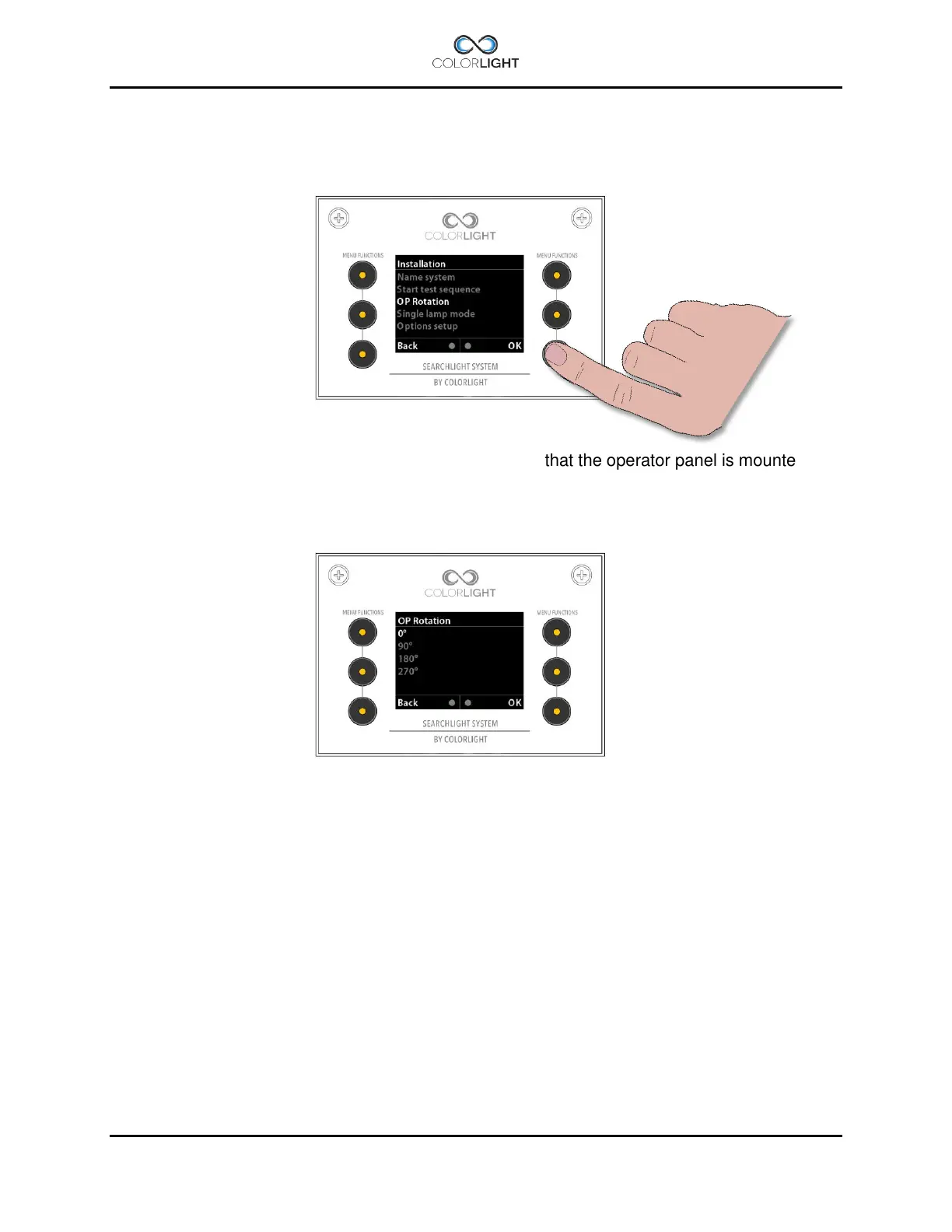

15.8.5.6 OP Rotation
This menu is used if you have mounted an operator panel pointing in a different direction than
towards the bow of the boat.
The defaults setting when delivered (0 degrees) requires that the operator panel is mounted
pointing towards the bow of the boat, see illustration on page 54.
By changing this setting you can compensate for different mounting positions while maintaining
accurate indicator function, you can choose from four different positions.
0 degrees (default)
90 degrees
180 degree
270 degree
Press “OK” to save and exit back to the “Installation” submenu.
