Page 60 INSTALLATION & USER'S MANUAL CLITE2

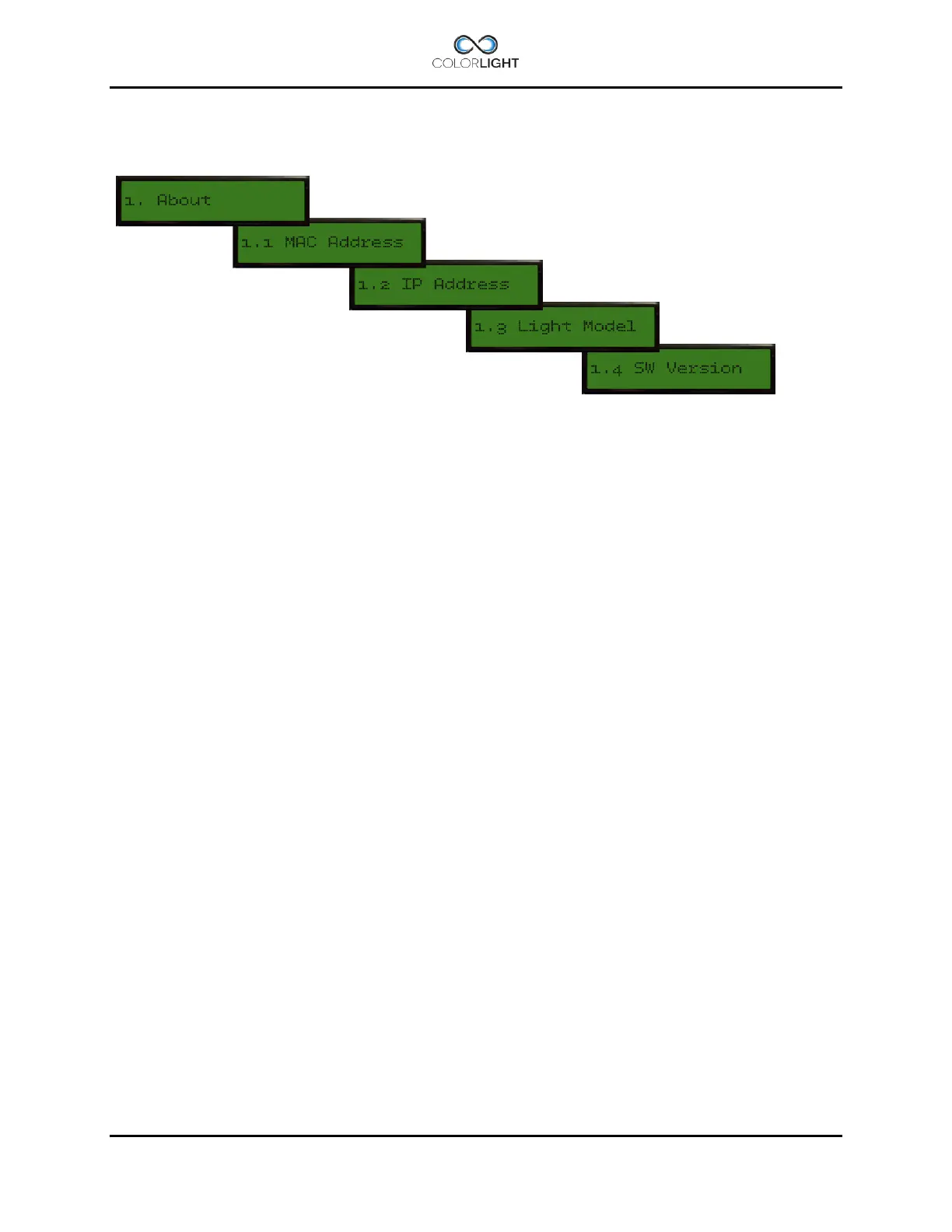

Category 1: About 16.2
In this chapter all of Category 1 menu items will be explained.
(1.1) MAC Address 16.2.1
Displays the MAC address of the Cabinet Card, according to the standard (IEEE 802) in six
groups of two hexadecimal digits, separated by colons (‘:’), in transmission order, e.g.
“01:23:45:67:89:ab”. One exception from the standard is made, the leftmost colon is missing,
due to the 16 character limit of the LCD.
(1.2) IP Address 16.2.2
Displays the IPv4 address of the Cabinet Card, in four groups of one to three decimal digits,
separated by dots (‘.’), e.g. “169.254.17.5”.
(1.3) Light Model 16.2.3
Displays the searchlight model that the Cabinet Card is configured to use, e.g. “Model: CL25-
12”.
(1.4) SW Version 16.2.4
Displays the firmware version of the Cabinet Card, e.g. “0.1.2.3”.
