Engine RPM two/three levels switching
Continuing example above …. closed Speed Sel1 (page 190), Speed Sel2 (page 190), Speed Sel3 (page
190) ramps the Engine RPM to the selected setpoint level. … i.e. switched/ramped to another three levels.
Note: If there is more than one SpeedSel Setpoint activated, Speed Sel1 (page 190) has higher priority, then
Speed Sel2 (page 190) and after Speed Sel3 (page 190).
Note: Necessary condition: LAI SpdRequest (page 126) = OFF and controller MAN mode.
Engine RPM by Up/Down buttons settings
RPM adjusted in examples above can be changed by SPEED UP (PAGE 189) / SPEED DOWN (PAGE 189) when
the RetToSpeedAdj (page 120) = DISABLED.
Note: Necessary condition: LAI SpdRequest (page 126) = OFF and controller MAN mode.
Engine RPM continuous change (using potentiometer)
Adjust LAI SpdRequest (page 126) = AI1-9 … to corresponding controller or extension module analog input.

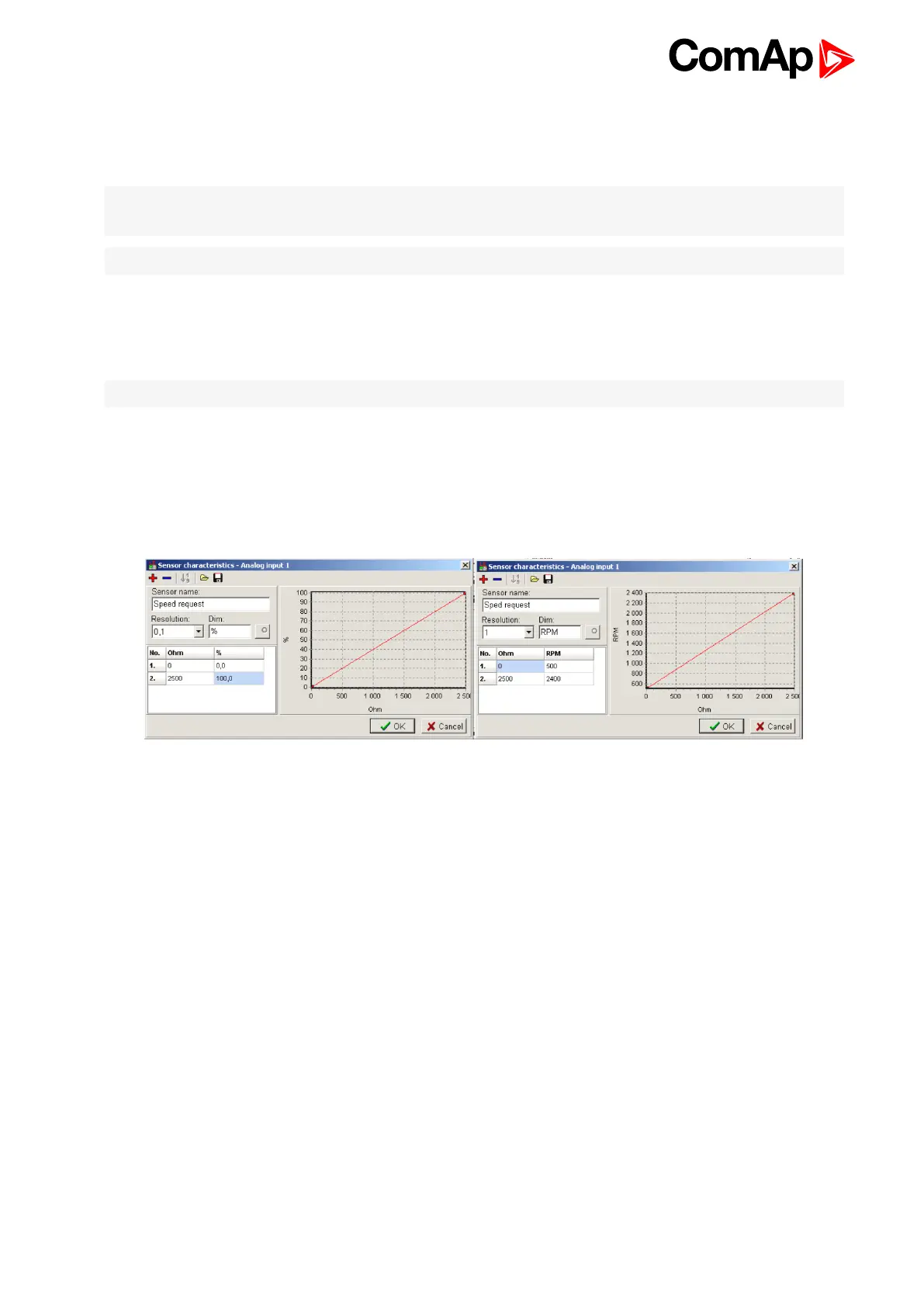

Configure this Analog input - sensor characteristic in RPM or Percentage (expected potentiometer resistance
2.5kΩ in example below). Speed Ramp (page 122) is active.
