Boot jumper programming – In case of interrupted programming or other software failure is possible to use the
boot jumper programing to restore controller to working order. Connect the controller to PC, run LiteEdit and wait
until connection bar at bottom turns red. Than run programming process via menu Controller -> Programming
and cloning – Programming. Select correct firmware and confirm dialog. Than follow instructions in LiteEdit.
4.5.2 IL-NT RS232-485

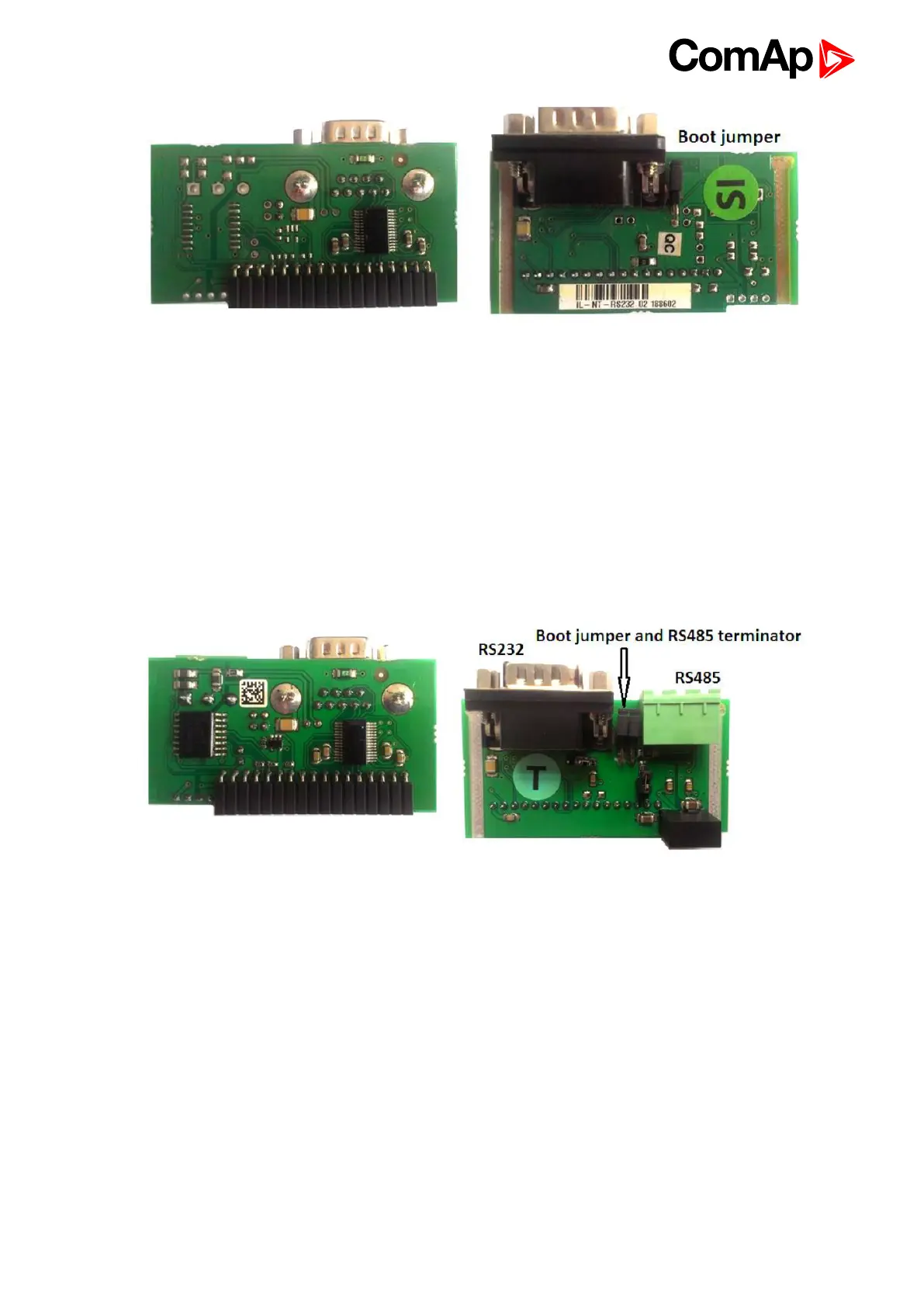

IL-NT RS232-485 is optional plug-in card, which enables ID-Lite controller RS232 and RS485 serial
communication. This is required for computer or Modbus connection. The IL-NT RS232-485 is a dual port
module with RS232 and RS485 interfaces at independent COM channels. The RS232 is connected to COM1
and RS485 to COM2. Adjustment of communication type, baud rate etc. is via Comms Setting group of setpoint
in LiteEdit or the controller screen.
4.5.3 IL-NT S-USB
IL-NT S-USBis optional plug-in card to enable communication of InteliDrive controller via USB port. This is
required for computer or Modbus connection. This module contains USB slave port, which is connected
internally to the COM1 of the controllers. It is designed as an easy removable service module.
This module requires a FTDI USB Serial converter driver installed in the PC. The driver creates a virtual serial
port (COM) in the PC, which must be used in LiteEdit as communication port when a connection is being
opened.
