ComAp InteliDrive Lite

ID-FLX Lite & Telecom Global Guide
61

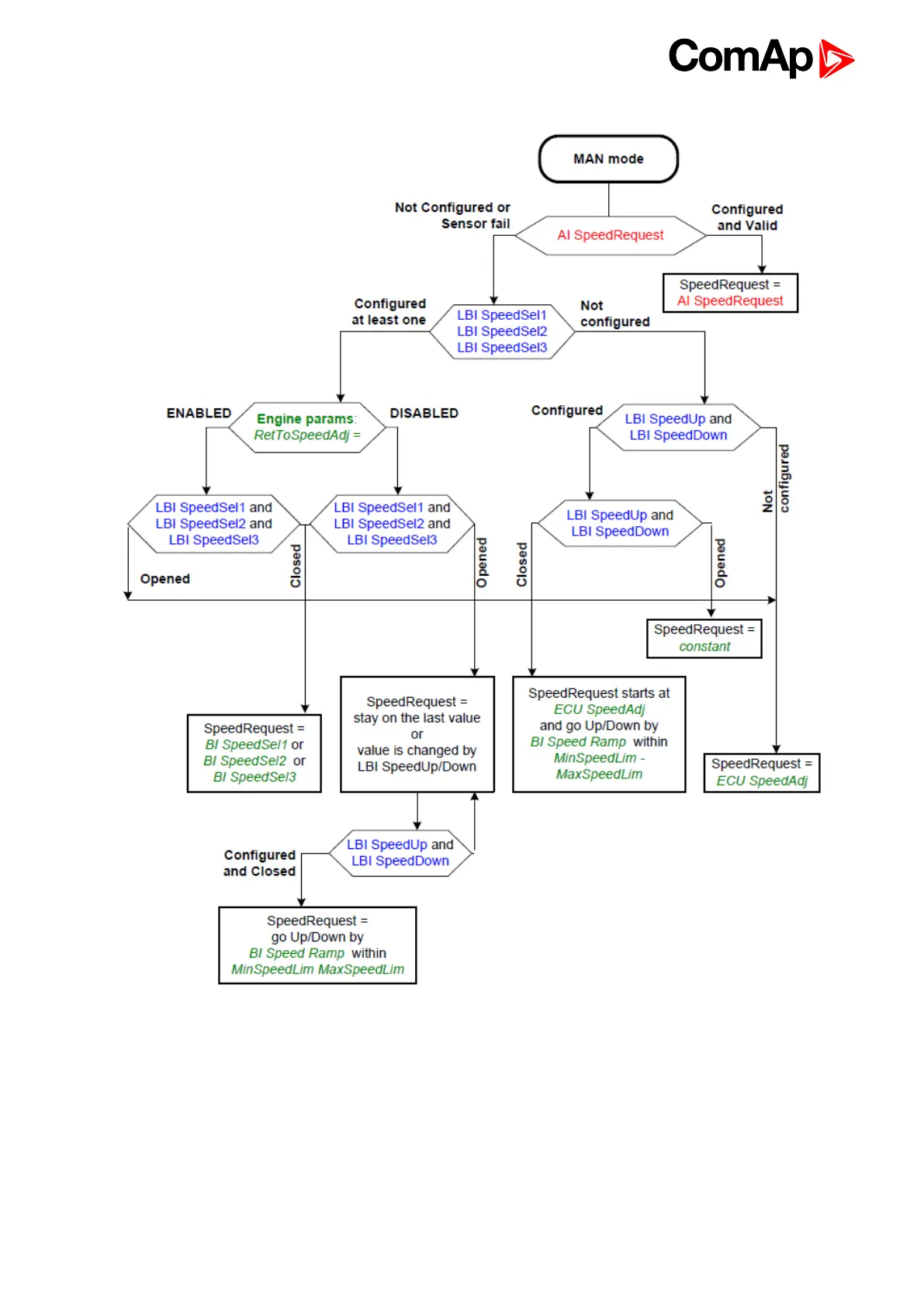

Speed request chart
5.15.10 AUT mode: Engine load limitation – overview
Functions below can reduce the engine load when is over adjusted limit.
Two functions 1
st
PI loop and 2
nd
Comparator with Hysteresis (CMPH) are available and these functions are
described below. The function setup is done by corresponding setpoints in Load limit group. This group has one
PI loop and one CMPH. Both functions can use different inputs from ECU (Engine Load or RPM) or from pickup
(RPM) or value from analog input.
