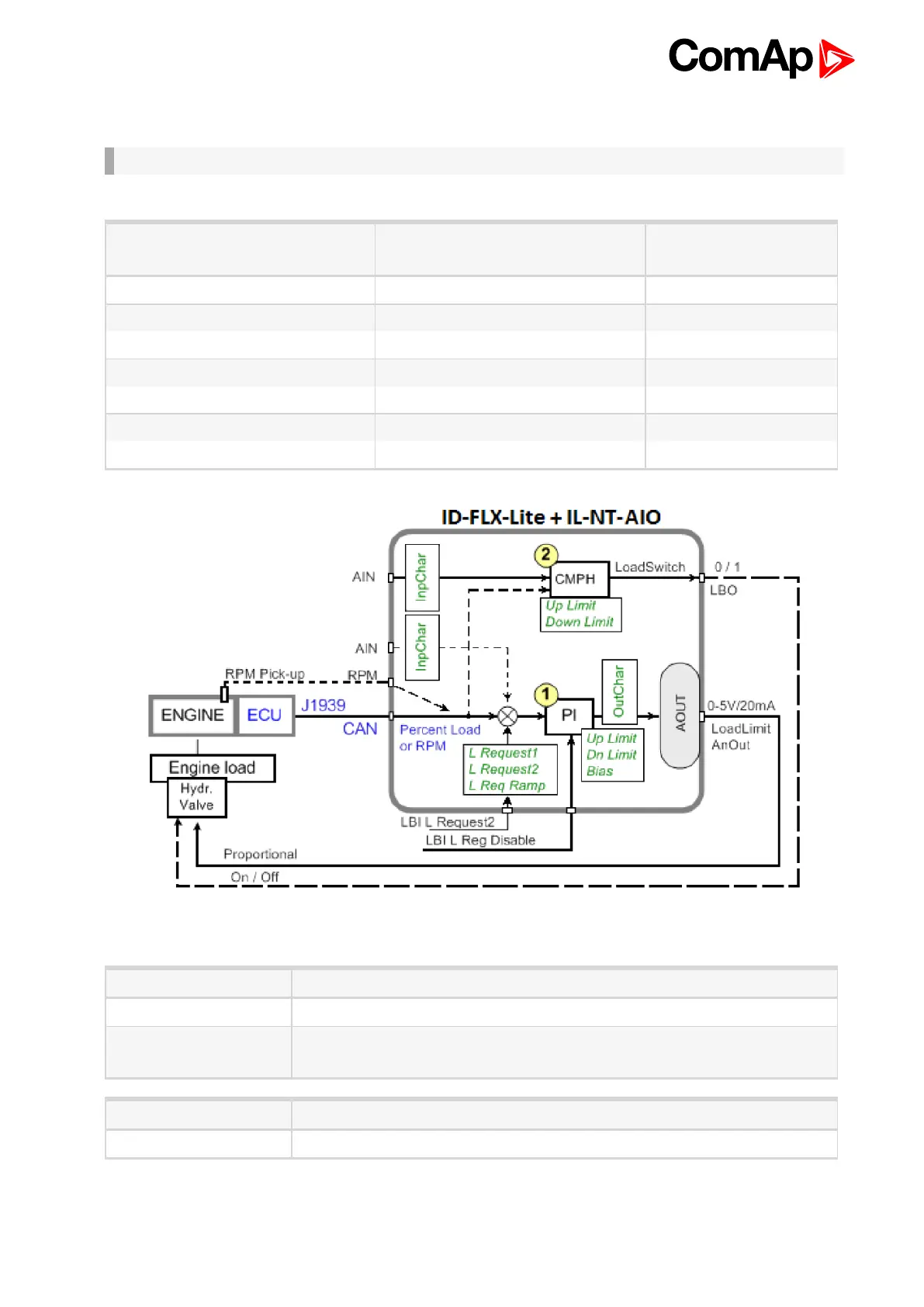

PI loop and Hysteresis comparator functions can be used for Engine Load Limitation or for any other control
function.
IMPORTANT: Regulator is working permanently in AUT mode.
In table below see different operation conditions.
Condition
Analog output
LoadLimitAnOut
Binary output
Load switch
OFF mode =0 =0
MAN mode In operation In operation
AUT mode In operation In operation
Running In operation In operation
Stop = Not Running In operation In operation
Sd protection Load limit: Bias
LBI L Reg Disable = 1 Load limit: Bias
Functions 1 and 2
LBI Active input
LoadRequest2 Switch to Load Request 2
LoadRegDisable
Set PI Regulator output to constant P Bias
Regulator is working when this LBI is not configured.
LBO Function
LoadSwitch Load Comparator output (Up/Down Limit)
