InteliMains 210 Global Guide
187
Setpoint group Bus Left Settings Related FW 2.0.0
Range [units] 1,0 .. 180,0 [s]
Default value 4,0 s Alternative config NO
Step 0,1 s
Comm object 8283 Related applications MCB, MGCB, BTB
Description
IDMT curve shape selection. IDMT Overcurrent Delay is a reaction time of IDMT protection for 200%
overcurrent I
gen
=2*Nominal Current (page 175)
IDMT is “very inverse” over current protection. Reaction time is not constant but depends on over current
level according to the following formula:
=
I
Overcurrent IDMT Delay * Nominal Current
− Nominal Current
gen
Reaction time
Note: Reaction time is limited to 3600 s = 60 minutes. IDMT protection is not active for Reaction time
values longer than 60 minutes.
I
gen
is maximal value of all measured phases of Bus Left current.
Table 8.1 EXAMPLE of Reaction time for different over current levels
Overcurrent IDMT Delay
Overcurrent
≤ 100 % 101 % 110 %
Reaction time 0,2 s No action 20 s 2 s
2 s No action 200 s 20 s
20 s No action 2000 s 200 s

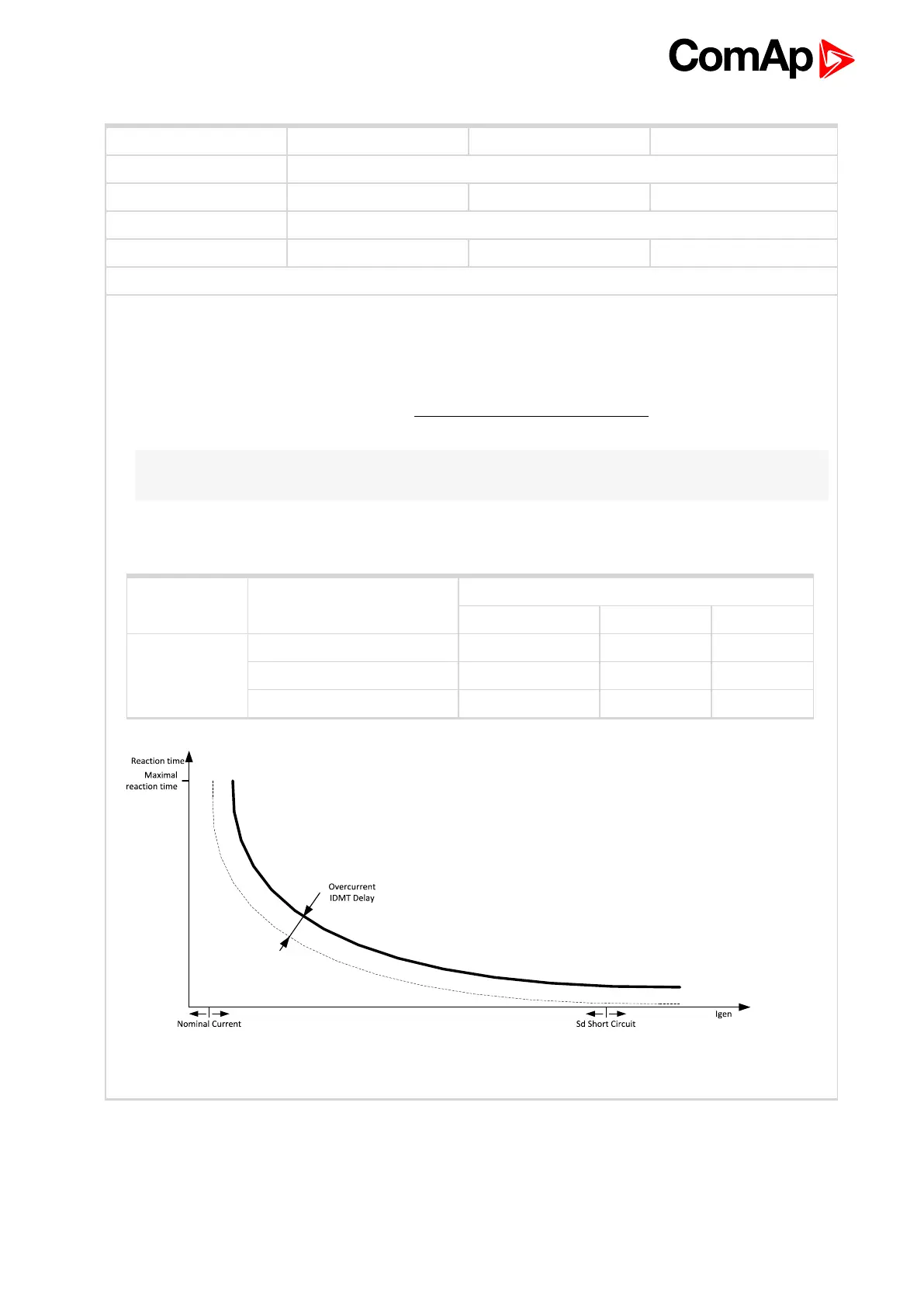

Image 8.1 IDMT Overcurrent Delay
IDMT Overcurrent
6 back to List of setpoints
