Components & Controls
38
C3M2-OM-EN-02

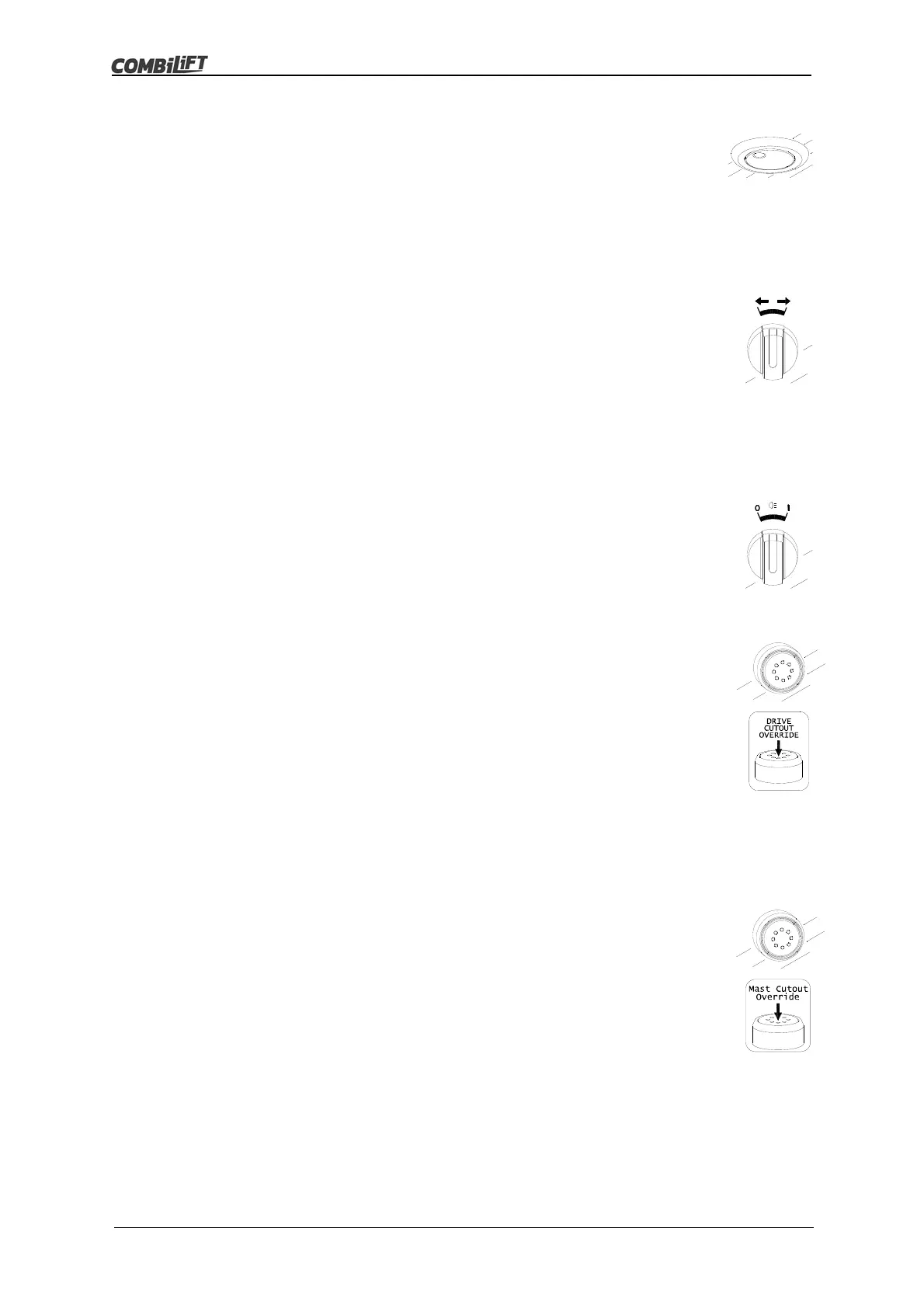

Cabin Interior Light Switch (If Fitted)
The cabin interior light switch is located on the light inside the
cabin at the top right hand side.
Press on the small circular recess on the bottom face of the light
to switch the light on.
Press in the same place a second time to switch the light off.
Direction Indicator Lights Switch (If Fitted)
This is a three position rotary switch used on trucks that have
optional road lights fitted.
In the centre position the indicator lights are off.
When turning left turn the switch anticlockwise to operate the
left hand side indicator lights.
When turning right turn the switch clockwise to operate the right
hand side indicator lights.
Road Light Switch (If Fitted)
This is a two position rotary switch used on trucks that have
optional road lights fitted.
Turn the switch to ‘I’ to turn on the road lights if fitted.
Turn the switch to ‘0’ to turn off the road lights if fitted.
High Mast Drive Cut-Out Override Button (If Fitted)
The high mast drive cut-out option prevents the truck from
driving if the mast is raised above a predetermined height.
If this option is fitted a button will be provided to override the
drive cut-out if required.
To re-commence driving either:
Lower the forks below the set cut-out height using the
lift/lower control.
OR
Press and hold in the drive cut-out override button before
attempting to drive.
Mast/Forks Lift Cut-Out Override Button (If Fitted)
The mast/forks lift cut-out option prevents the mast/forks from
being raised above a predetermined height.
If this option is fitted a button will be provided to override the
mast/forks lift cut-out if required.
To raise the mast/forks above the predetermined set height,
press and hold in the mast/forks lift cut-out override button then
operate the lift/lower control.
