Components & Controls
40
C3M2-OM-EN-02
Note
The layout positioning of controls and switches may be subject to change
due to individual customer requirements. Please refer to the decals on the
individual truck.
Operators must acquaint themselves with the layout of all controls before
operating the truck.
D. Menu
From the homescreen, press button (D) to enter the menu options
screen.
E. Not Used
F. Menu Navigation
Press the up, down, right and left arrows on button (F) to navigate
through the various menu options.
G. Select
Press button (G) to confirm the selection of a highlighted menu
option.

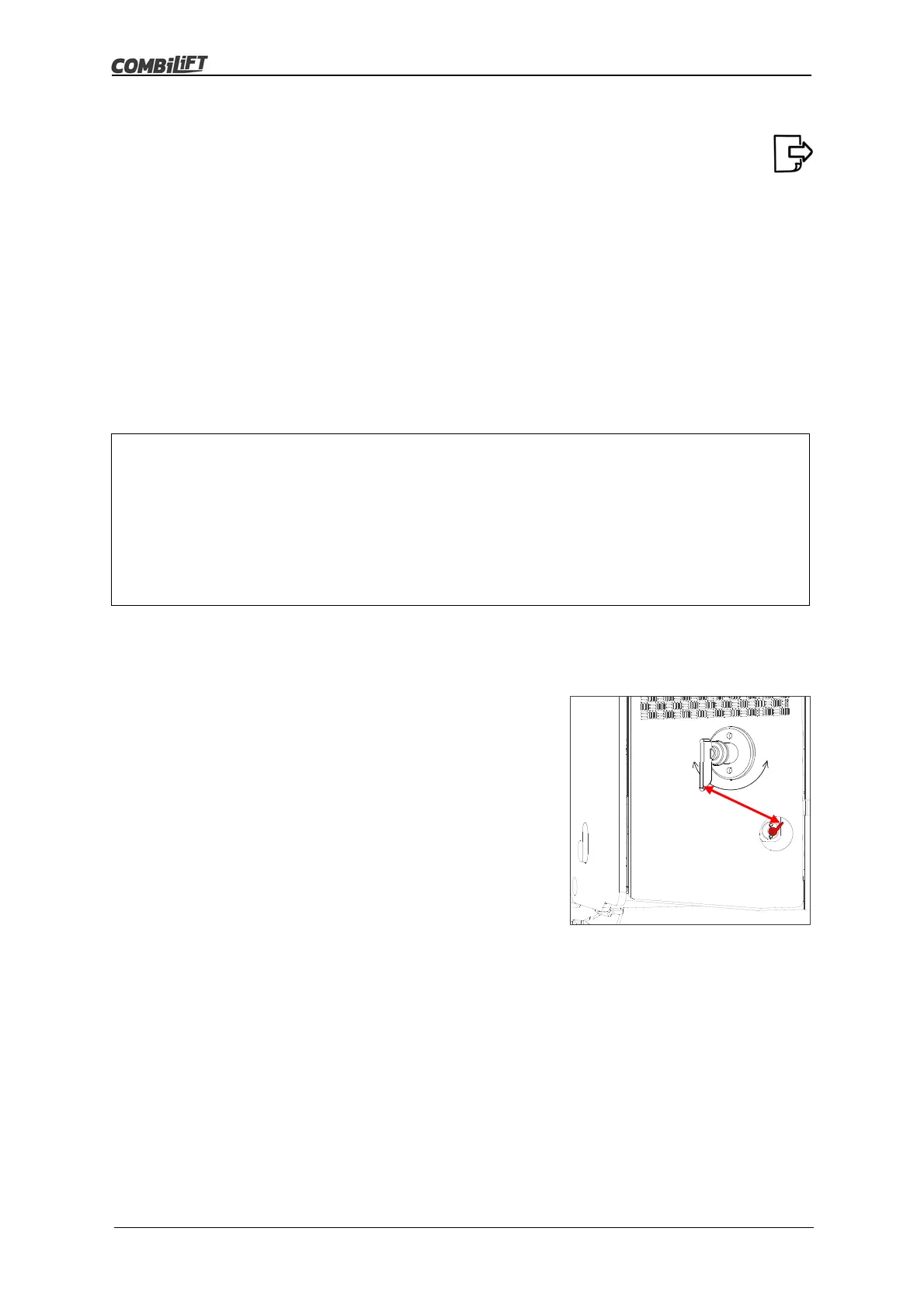

3.2.7 Battery Isolator Key Switch
The battery isolator key switch is used to
disconnect the power from the battery to the
electrical system.
The switch is located behind the large access
panel on the right hand side of the truck (see
adjacent diagram).
It can be accessed through an opening in the
panel.
To isolate the battery turn the switch ANTI-
CLOCKWISE.
To connect the battery turn the switch
CLOCKWISE.
Off On
To Next Page
