Components & Controls
42
C3M2-OM-EN-02
Note
When the truck is in neutral pressing the accelerator pedal will increase
the working speed of the hydraulic functions.
The layout of the joystick functions may be subject to change due to
individual customer requirements. Please refer to the joystick decal in the
individual truck.
Operators must acquaint themselves with the layout of all controls before
operating the truck.

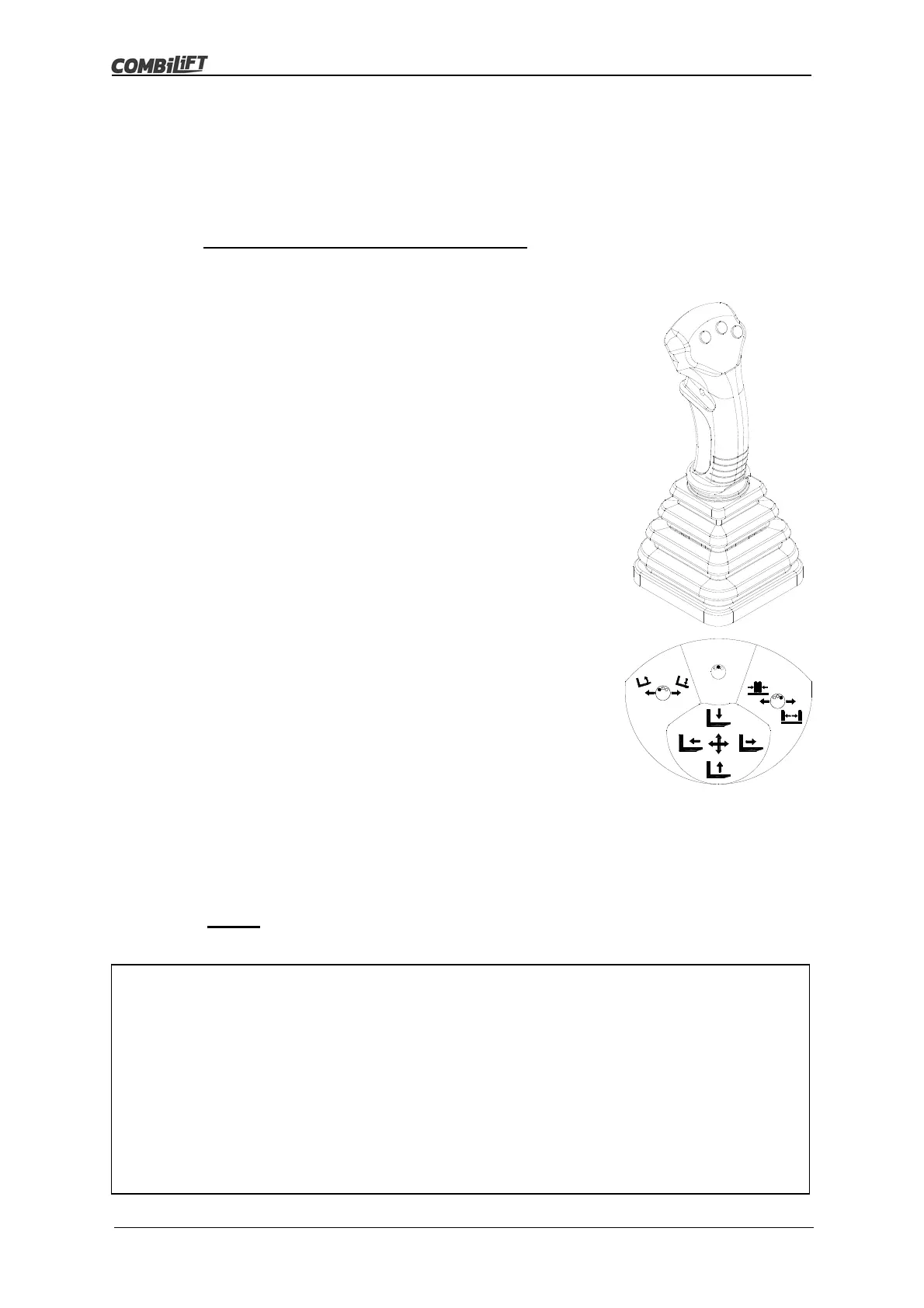

3.4 Hydraulic Joystick Operation (If Fitted)
This is a four-way joystick with three push buttons on the handle. It is used to control
the mast functions.
Joystick Functions (Standard Setup)
Lift /Lower
To raise the forks, pull the joystick back.
To lower the forks, push the joystick forward.
Mast Reach/Retract
To reach the mast out, push the joystick to the right.
To retract the mast in, pull the joystick to the left.
Mast Tilt
To tilt the mast forward, push the joystick to the right
whilst pressing the left hand button on the handle.
To tilt the mast back, pull the joystick to the left
whilst pressing the left hand button on the handle.
Auxiliary
Auxiliary hydraulic functions are controlled by
moving the joystick whilst pressing the right hand
button on the handle.
The middle button on the joystick may also be used
on trucks fitted with more than one auxiliary
function.
The most common auxiliary hydraulic functions
fitted to Combilift trucks are:
Fork Positioning
Side shift
Telescopic forks
Lift Drop Forks
Refer to the joystick decal inside the trucks cabin for the operation of any
auxiliary functions that have been fitted.
Operators MUST Take time to familiarise themselves with the operation of any
auxiliary functions on the truck.
