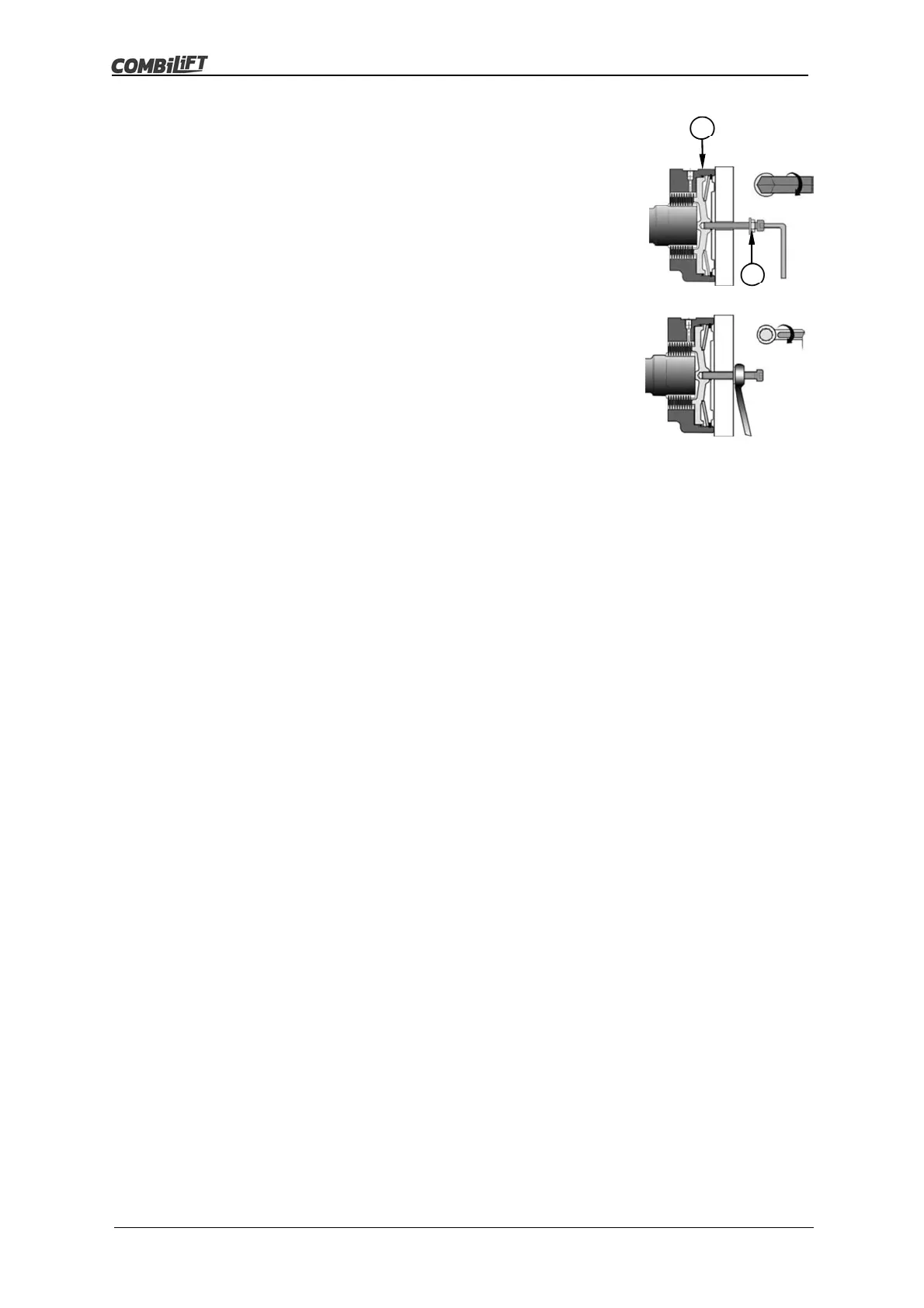

6. Screw the bolt up to the end of the thread in the
brake piston. Do not over tighten the bolt!
7. Hold the bolt in place with an Allen key and screw
the nut up to the spacer so that the spacer is held
firmly against the brake housing.
8. Hold the bolt in place and turn the nut clockwise
approximately 1 full revolution.
9. This action will release the brake and allow the
motor to turn freely.
10. The procedure must be performed on the rear wheel
motor and on the front right-hand wheel motor.
To re-engage the park brake:
1. Re-engage the park brake as soon as the towing
operation is complete.
2. Hold the bolt in place and unscrew the nut (B) until
the spacer comes loose.
3. Unscrew the bolt from the brake piston.
4. Insert a new rubber plug into the brake cover.
5. The procedure must be performed on the rear wheel
motor and on the front right-hand wheel motor.
