2.2: Operator Controls & Display Layout

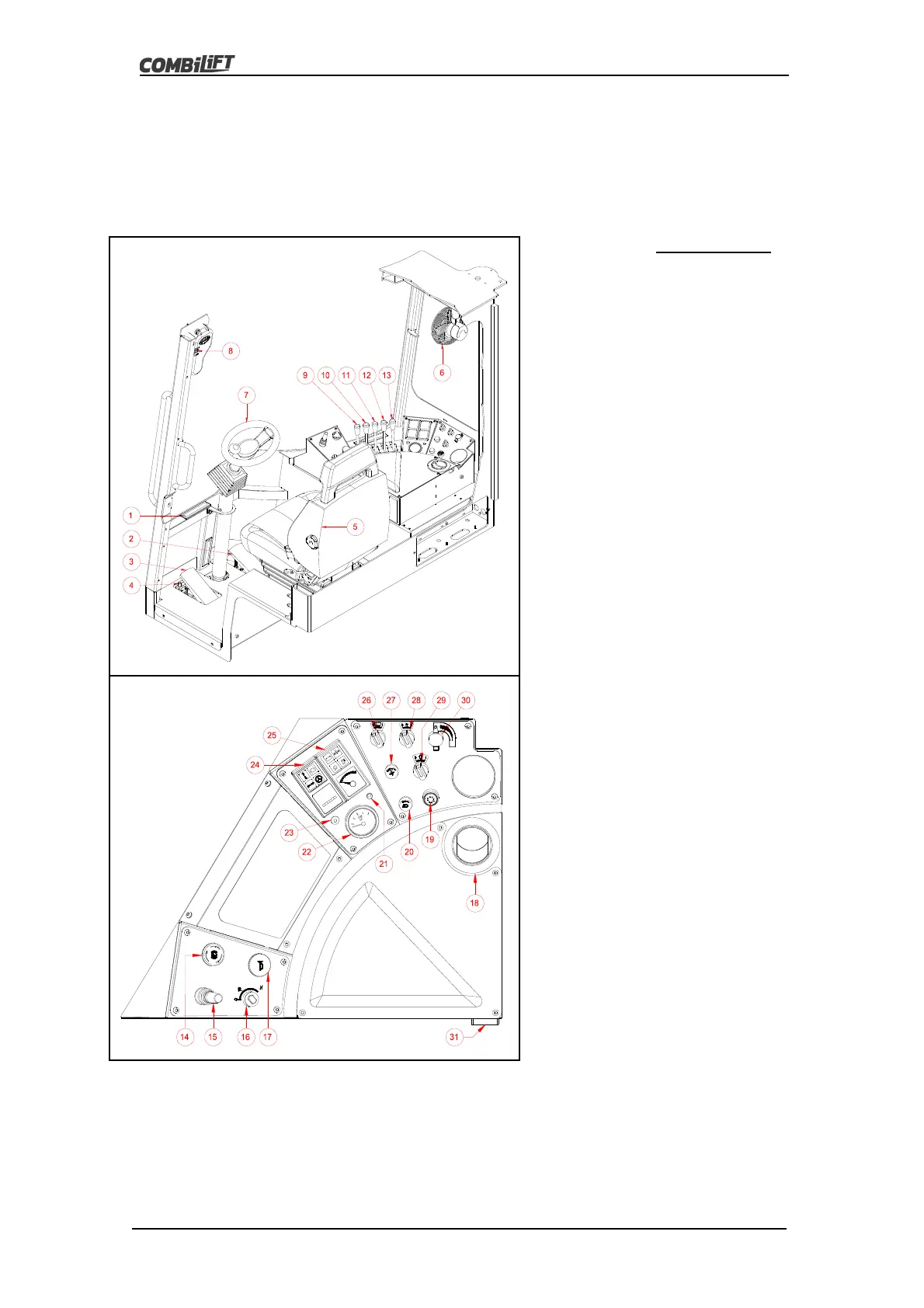

Figure 2.2: Machine Controls Layout
Controls List
1. Closable Air Vent
2. Accelerator Pedal
3. Inch/Brake Pedal
4. Brake Pedal Switch
5. Adjustable Suspension Seat
6. Cooling Fan
7. Steering Wheel
8. Front Left Wiper Switch
9. Lift Control Lever
10. Reach Control Lever
11. Tilt Control Lever
12. Side Shift Control Lever (If Fitted)
13. Auxiliary Function Control Lever
14. Parking Brake
15. Direction Selection Switch
16. Ignition Switch
17. Horn Button
18. Heater Vent
19. Interior Light Switch
20. Heater Fan Switch
21. Guide Roller Indicator Light
22. Fuel Gauge (Diesel Only)
23. Engine Management Light
24. Hour Meter
25. Temperature Gauge
26. Work Light Switch
27. Cooling Fan Switch
28. Front Right Wiper Switch
29. Drive Cut-out Override
30. Heater Temperature Control
31. Fuse Box
