C4-C5XL MK3 O&S
1-3
C4000MK3-OM-EN-11

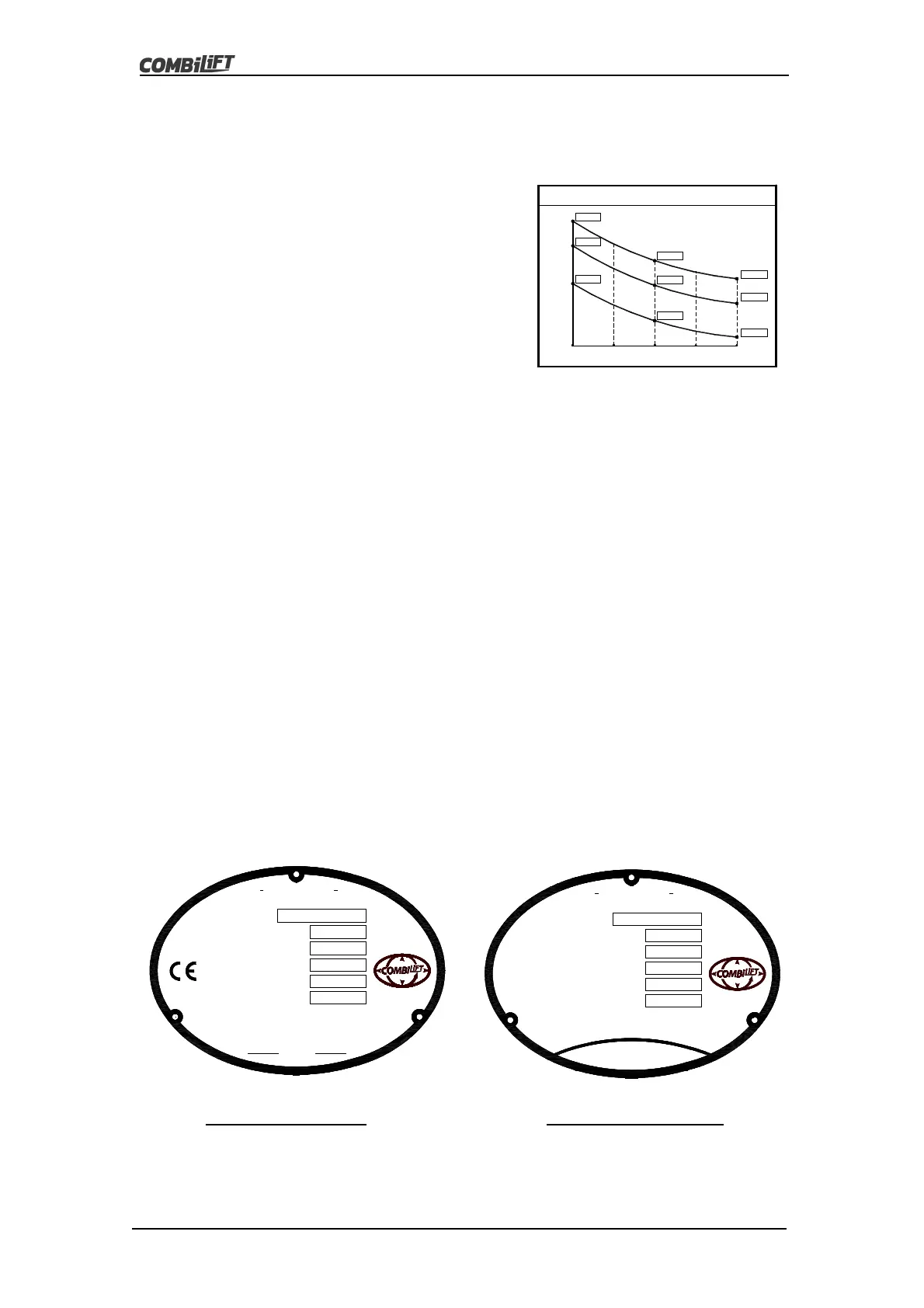

1.3: Load Chart
The rated capacity of the truck is illustrated
on a load chart located inside the cabin.
The load centre is determined by its centre
of gravity and is measured from the front
face of the forks to the centre of gravity of
the load. It is assumed that the centre of
gravity in the vertical direction is no greater
than the specified horizontal load centre.
It is the responsibility of the operator to determine that the weight of the load
to be handled is not greater than the capacity shown on the load chart. The
operator must not handle any load that is greater than the capacity shown.
1.4: Serial Plate
The Serial Plate is located inside the operator’s cabin on every Combilift truck.
Please ensure that you are aware of the location of the serial plate on your
truck. It is engraved with a number of details, which are required by law.
These are:
The model of the truck
The serial number of the truck
The trucks rated Capacity
It’s unladen weight
It’s date of manufacture
The manufacturers name and address.
Metric Serial Plate Imperial Serial Plate
This plate should not be removed by anyone. If lost order a replacement from
Combilift immediately.
Tel. +353 47 80500 Fax. +353 47 80501
GALLINAGH, CO. MONAGHAN
Website: www.combilift.com E-mail: info@combilift.com
MANUFACTURED ON
UNLADEN WEIGHT
LOAD CENTER
CONFORMS TO THE REQUIREMENTS OF
IRELAND
Kg
mm
Kg
ASME / ANSI B56.1
OVERHEAD GUARD
lbs
ins
MODEL
RATED CAPACITY
COMBILIFT LTD.
M A N U F A C T U R E D B Y
SERIAL No.
lbs
Tel. +353 47 80500 Fax. +353 47 80501
www.combilift.com E-mail: info@combilift.com
GALLINAGH, CO. MONAGHAN
M A N U F A C T U R E D B Y
COMBILIFT LTD.
UNLADEN WEIGHT
MANUFACTURED ON
RATED CAPACITY
MODEL
SERIAL No.
LOAD CENTER
COMPLYING WITH 89/392/EEC
MAXIMUM STACKING CAPACITY ON A FIRM LEVEL SURFACE
600 700
LIFT HEIGHT (m)
2.5
4.5
LOAD CENTRE (mm)
800
900
?Kg
5.5
1000
?Kg
?Kg
?Kg
?Kg
?Kg
?Kg
?Kg
?Kg
