4.12: Fuel Filtration – Diesel
(Service interval = 500 Hours)
On all diesel engine Combilifts, there are two fuel filters located on the rear of
the fuel tank as shown in figure 4.8 below. The first filter, the small plastic
filter, is to prevent particles entering the electric fuel pump. The second larger
filter is to prevent any remaining particles entering the engine. These must be
replaced in accordance with the maintenance schedule. The filters are both
accessed by extending the mast carriage and entering the frame of the
machine.

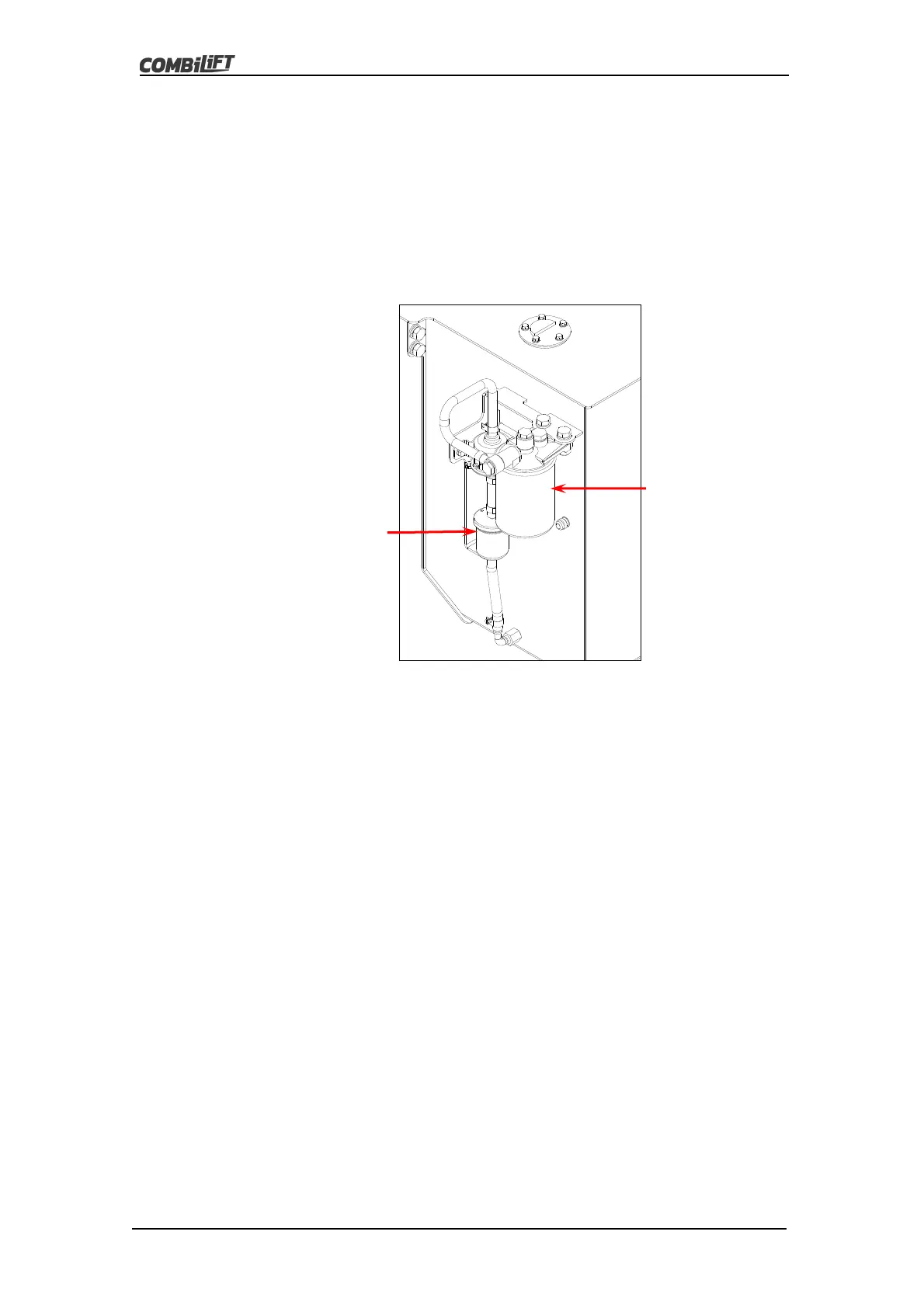

Engine Fuel Filter
Electric Pump Fuel Filter
