C4-C5XL MK3 O&S
4-17
C4000MK3-OM-EN-11
X X
Note

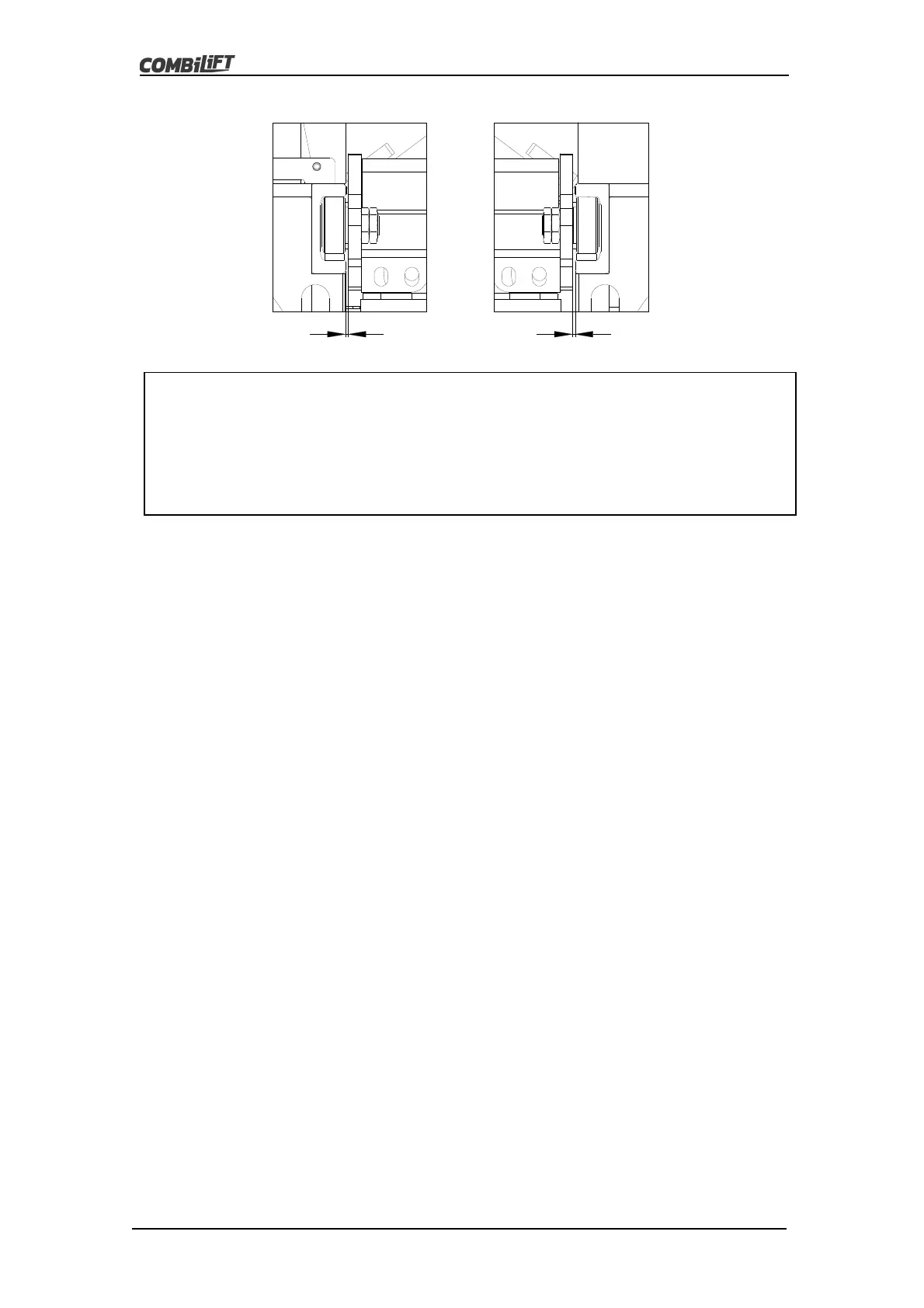

The wear pads must only be in light contact with the channels to allow the
carriage to travel freely. Do not over tighten the adjustment bolts as the force
between the wear pads and the channel will cause the carriage to stick.
Maximum torque of the bolts should not exceed 25Nm (18.5ft.lb).
5. Adjust the wear pads on the rear as described in point 4.
6. Check that the vertical faces of the channels where the wear pads run
are clean and adequately lubricated. Operate the reach function to
move the mast in and out several times through the full extent of its
travel.
7. Check the torque of all the adjustment bolts. The torque must not
exceed 25Nm (18.5ft.lb).
8. Tighten all the locking nuts up against the mast carriage side plates to
lock the adjustment bolts in place. Use a spanner to prevent the
adjustment bolts from turning while the locking nuts are being tightened.
