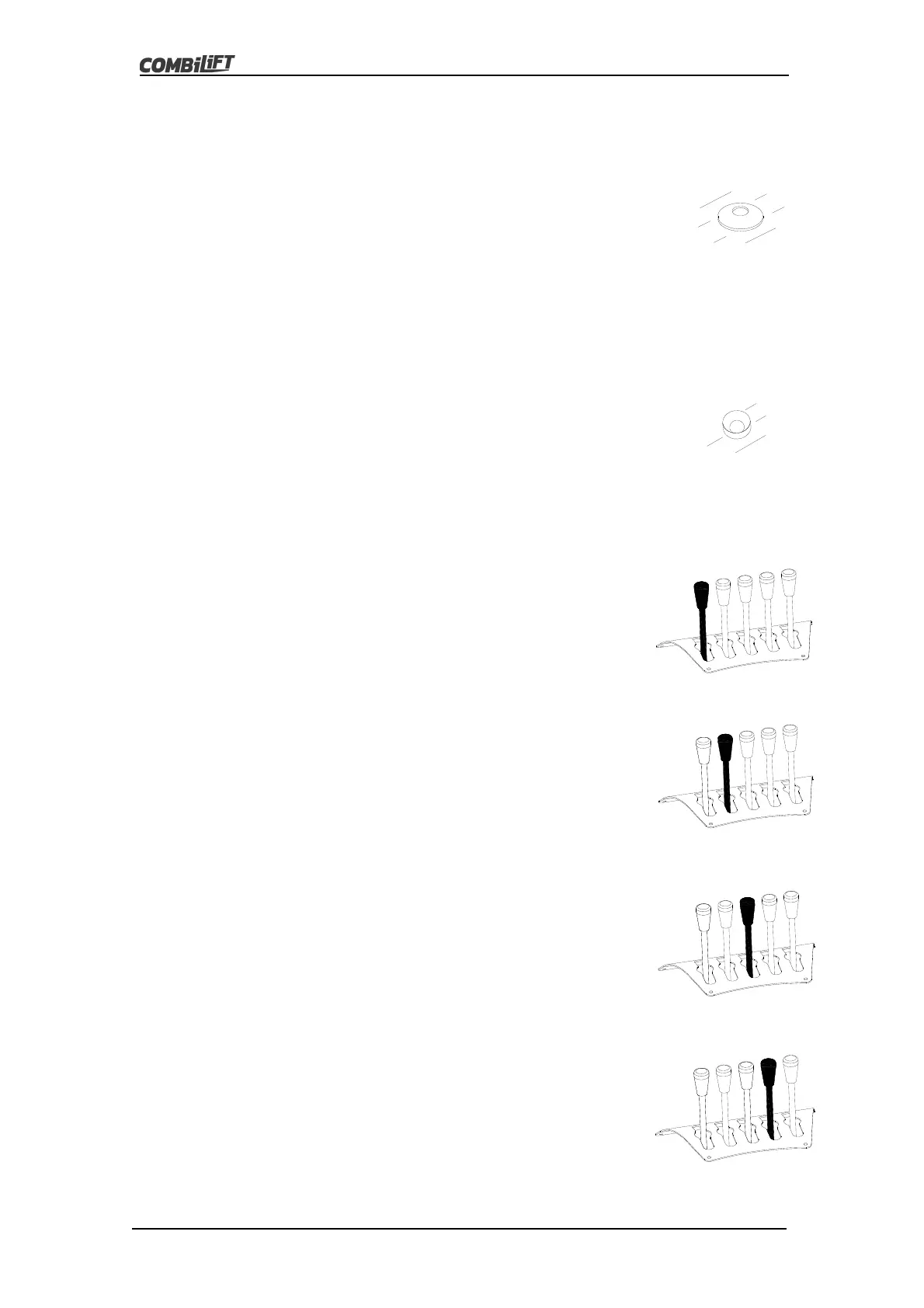

Engine Fault Light – Tier 2/3/4 LPG Only (Orange Light On Dash)
If this light comes on it means the engine control unit
(ECU) has detected a problem with the engine.
If the light is on and the engine is running smoothly
you can drive the truck. However, it should be
checked at the earliest convenience. If the engine is
running poorly the truck should not be driven.
The ECU will store the fault information that will allow
the fault to be diagnosed when the ECU is connected
to a PC.
90° Light – Optional (Green Light On Dash)
This light illuminates when the swivels are in the 90°
position (sideward mode) indicating that it can be
driven in a guided aisle.
2.4: Hydraulic Lever Functions
Lift Control Lever (Lever Closest To Operator)
The lift control lever controls the lift function of the Mast.
To raise the forks, PULL the lever BACK
To lower the forks, PUSH the lever FORWARD
Reach Control Lever (2nd Lever From Operator)
The reach control lever controls the movement function
of the mast carriage.
To extend the mast carriage forward, PUSH the lever
FORWARD
To retract the mast carriage backwards, PULL the lever
BACKWARDS
Mast Tilt Lever (3rd Lever From Operator)
Allows the operator to tilt the Mast forward and
backward
To tilt the mast forward, PUSH the lever FORWARD
To tilt the mast backward, PULL the lever BACKWARDS
Mast Side Shift Lever - Optional (4th Lever From
Operator if fitted. If not fitted see Auxiliary lever description
below)
The side shift control lever moves the mast left and right
To move the mast right, PUSH the lever FORWARD
To move the mast left, PULL the lever BACKWARDS
